21/1531-ASP11301 Uen B3 2016-02-17 16
C
ABLING
3.2 CABLE LABELING
3.2.1 PRODUCT LABELING
3.2.1.1 Previous Type of Labeling

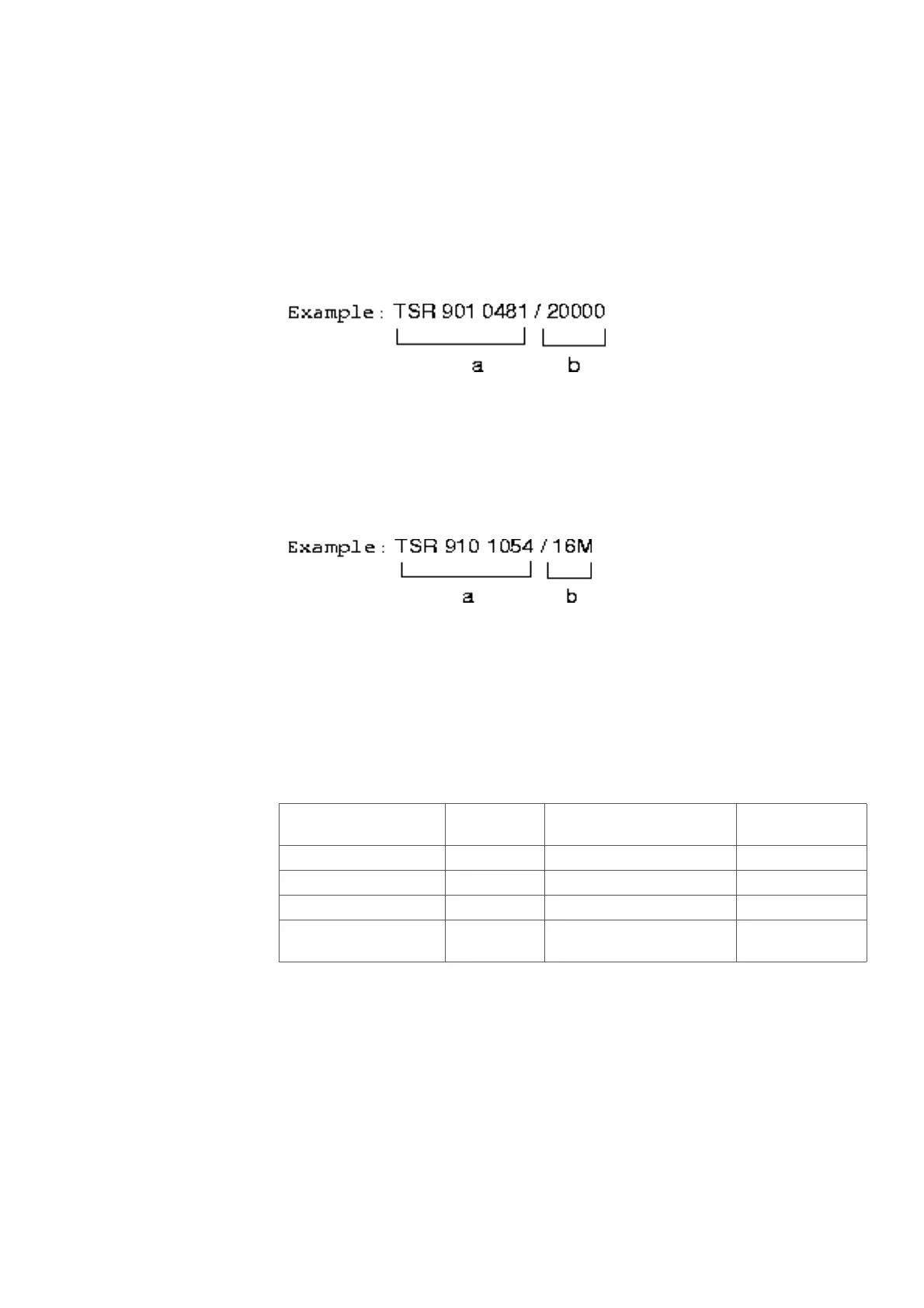

Each cable has a product number as follows:
a = Cable type
b = Cable length in mm
3.2.1.2 Existing Type of Labeling
If the cable is long, the length can be marked in meter (M) as follows:
a = Cable type
b = Cable length in meter. /16M = 16 meters
3.2.2 LABEL SETS
Every MX-ONE Service Node has a label set with labels that are used to mark the
cables in the MX-ONE. See Table 4 on page 16
Table 4
3.2.3 LABELING OF CABLES
Note: To mark source and destination for the cable, always put a label on each cable
end.
Cables are marked with labels in both ends. The labels contain the following informa-
tion:
• Cable source
• Cable destination
Product Number Server
Number
Product Number Server Number
SVH 277 030/1 1 SVH 277 030/5 6-10
SVH 277 030/2 2 SVH 277 030/6 11-20
SVH 277 030/3 3 SVH 277 030/7 21-40
SVH 277 030/4 4-5 SVH 277 030/8 > 40 (one for
each Server)
