3.5.1.2 ELU31/4 cable structure

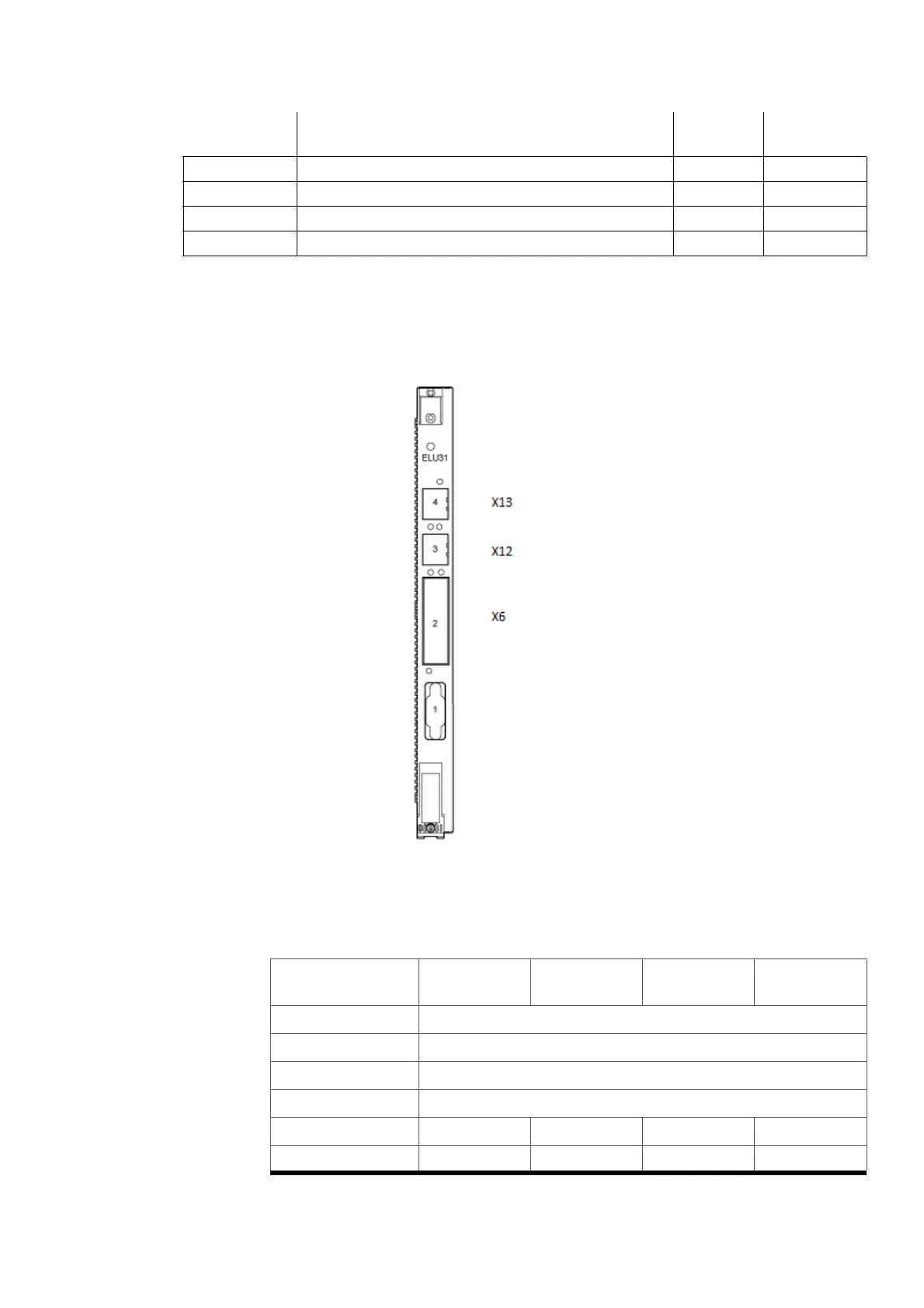

Figure 21: Front connector ELU31
For numbering of rows and columns see Figure 19: 32 pair cable for ELU33, ELU34,
ELU31, TLU80 and TLU83 (TSR 910 1054/16M or 32M) on page 26
Table 9 RFP front connector configuration. (X6)
R03 - Return wire (ind 3) B5 (1B5)
R13 - Return wire (ind 3) A5 (1A5)
R23 - Return wire (ind 3) C5 (1C5)
R33 - Return wire (ind 3) D5 (1D5)
Signal Description
Connector
row
Connector row
ABCD
1 Not used
2 Not used
3 Not used
4 Not used
5 EPB6 (red) EPA6 (green) EPB7 (brown) EPA7(red)
6 EPB4 (red) EPA4 (blue) EPB5 (orange) EPA5 (red)
