INSTALLING BOARDS AND CABLING
25 21/1531-ASP11301 Uen B3 2016-02-17

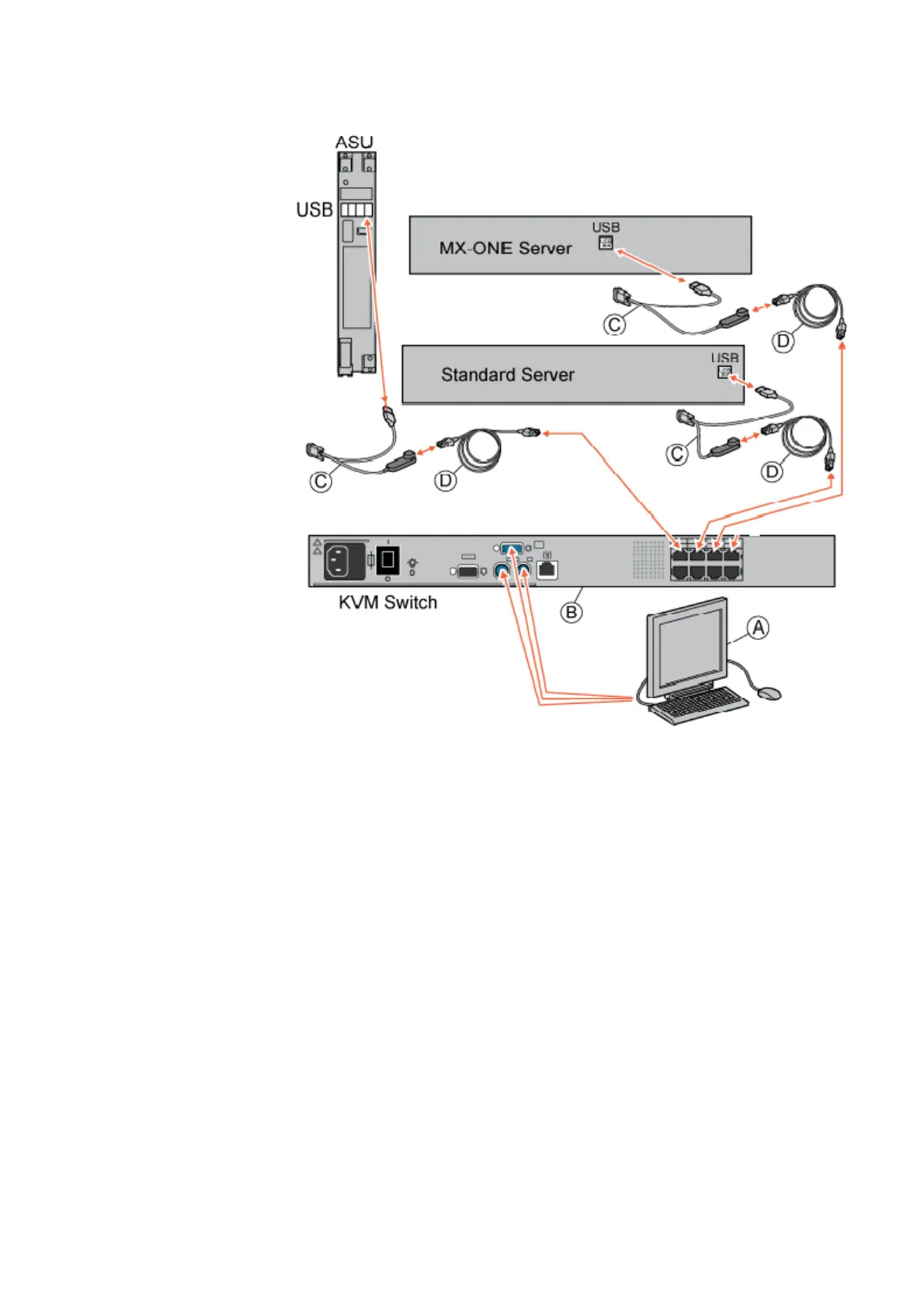

Figure 17: Connecting Keyboard and Monitor
3.5 EXTENSION AND TRUNK LINE CABLE STRUCTURE
The twisted pair cable used for Extension and trunk lines in the MX-ONE is delivered
with 32 pairs. The cable is structured either with 8 pairs in 4 bundles, 2 blue and 2
orange bundles, or, with 16 pairs in 2 bundles, 1 blue and 1 orange. Each bundle is
kept together with a bundle thread, see Figure 18: Cable Structure on page 26.
