Mitel MX-ONE - 4.7.1 TLU77; 4.7.2 ISDN; 4.7.2.1 ISDN PRI with TLU76;11; 4.7.2.2 Digital external lines with TLU79 and an NT1-box, Network Terminal-box

INSTALLING BOARDS AND CABLING
39 21/1531-ASP11301 Uen B3 2016-02-17
4.7.1 TLU77
Color coding for TLU77 with cable TSR4820211/xxx see item 3.5.3 TLU76 and TLU77
cable structure on page 33

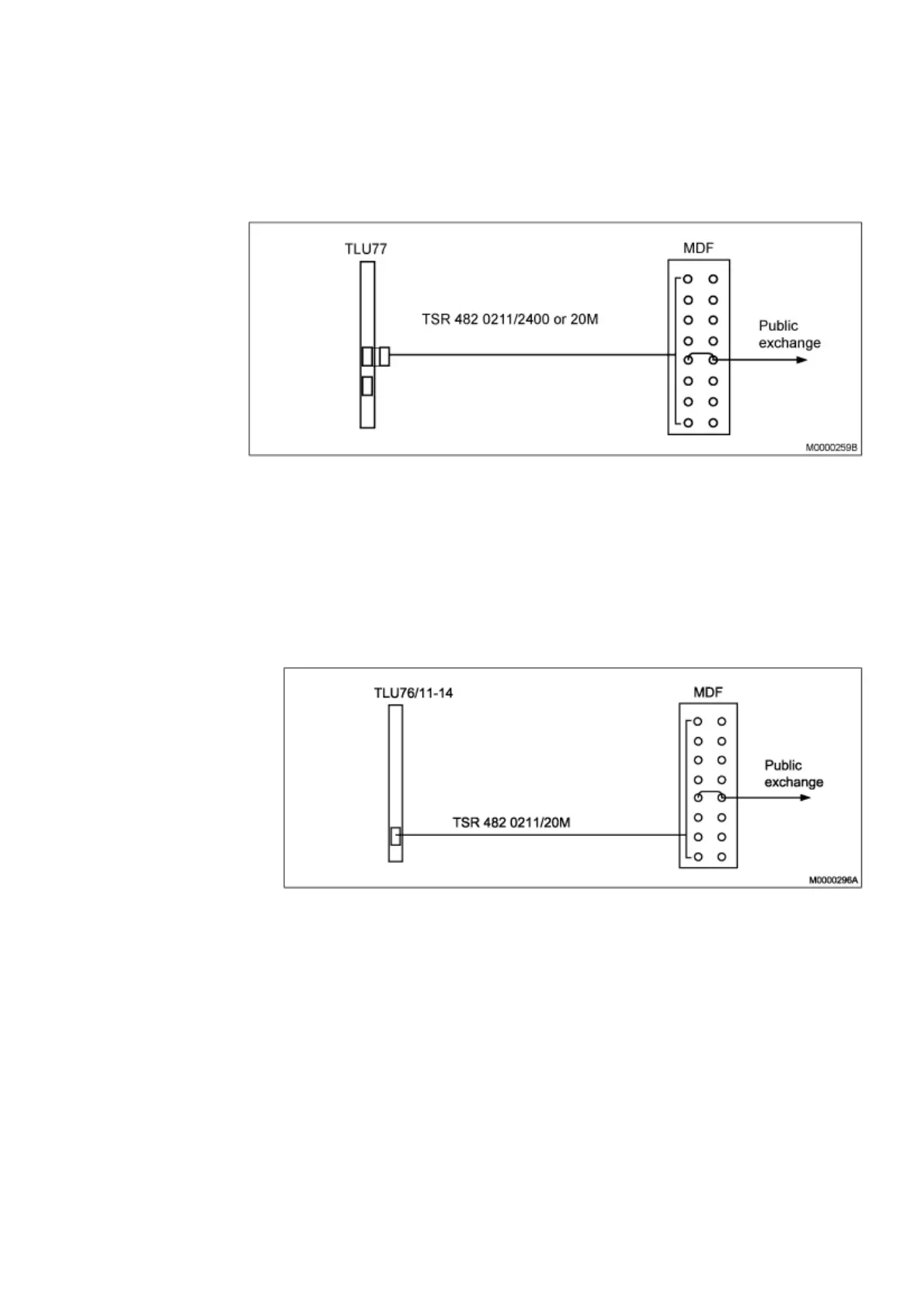

Figure 29: TLU77, 120ohm pair cable
4.7.2 ISDN
4.7.2.1 ISDN PRI with TLU76/11
Color coding for TLU76 with cable TSR4820211/xxxx see item 3.5.3 TLU76 and TLU77
cable structure on page 33
Figure 30: Digital external lines 120 ohm pair cable, TLU76/11 - /14
4.7.2.2 Digital external lines with TLU79 and an NT1-box, Network Terminal-box
Color coding for TLU79 with cable TSR491414/xxx see item 3.5.4 ELU26 and TLU79
cable structure on page 34
