INSTALLING BOARDS AND CABLING
17 21/1531-ASP11301 Uen B3 2016-02-17
• Server number
• Cable number
• Position (in boards or other devices) for cable connection
For a general explanation of the information in cable labels, see Figure 10: Labeling
Cables on page 17.

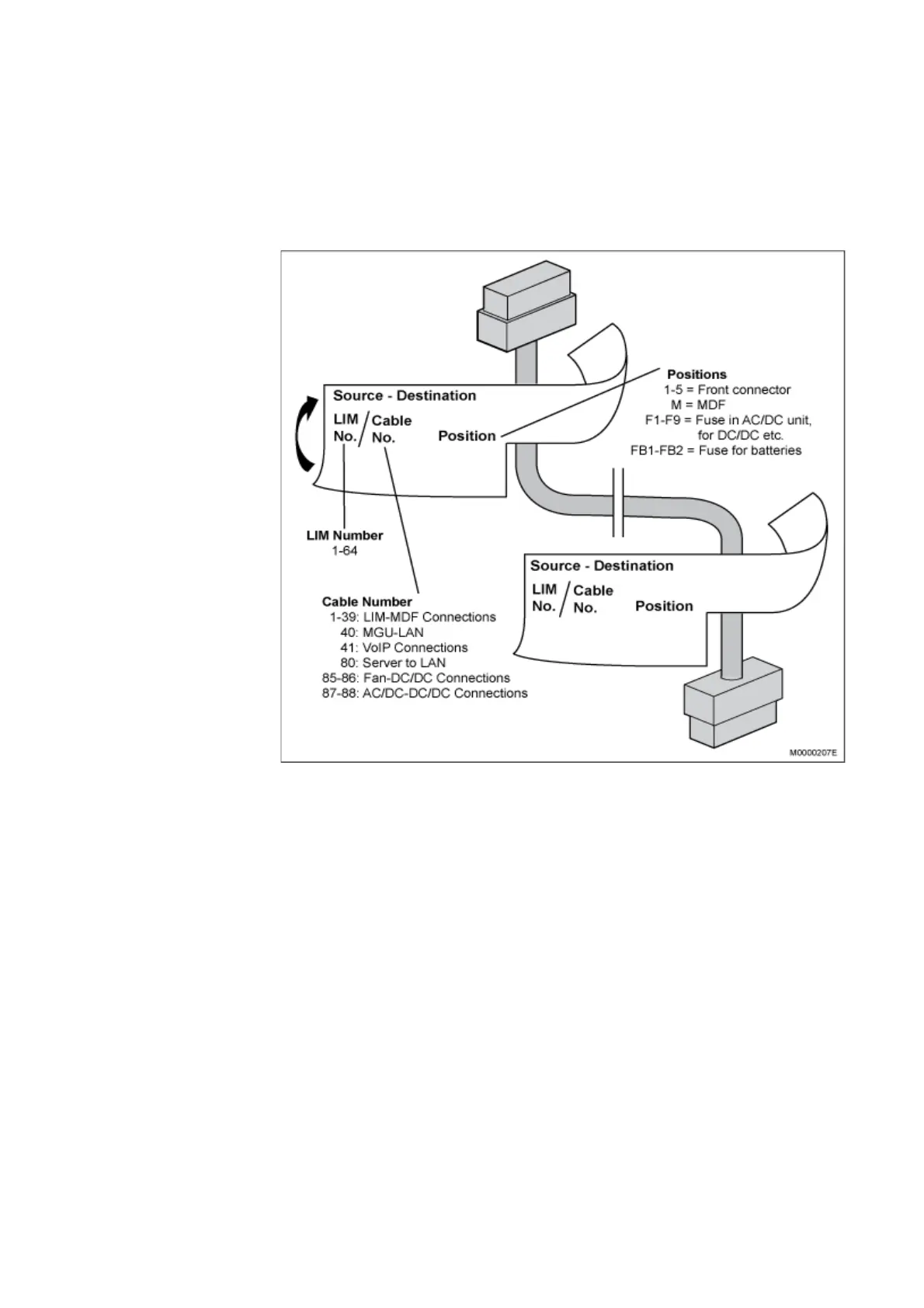

Figure 10: Labeling Cables
3.2.4 LABELING OF INTERNAL CABLES
The internal cables connected to fixed positions in the exchange are already labeled at
delivery. The label indicates the position of the cable's own connector as well as that of
the other end.
For example: GW1/81 (0*21*4) means that for Gateway 1, cable 81 is to be placed on
the left side of MGU (0= left, 1= right), board position 21 (01, 05, 09,..., 77), and at
connector 4, counted from the bottom, see Figure 11: Labeling of cables on page 18.
