INSTALLING BOARDS AND CABLING
23 21/1531-ASP11301 Uen B3 2016-02-17

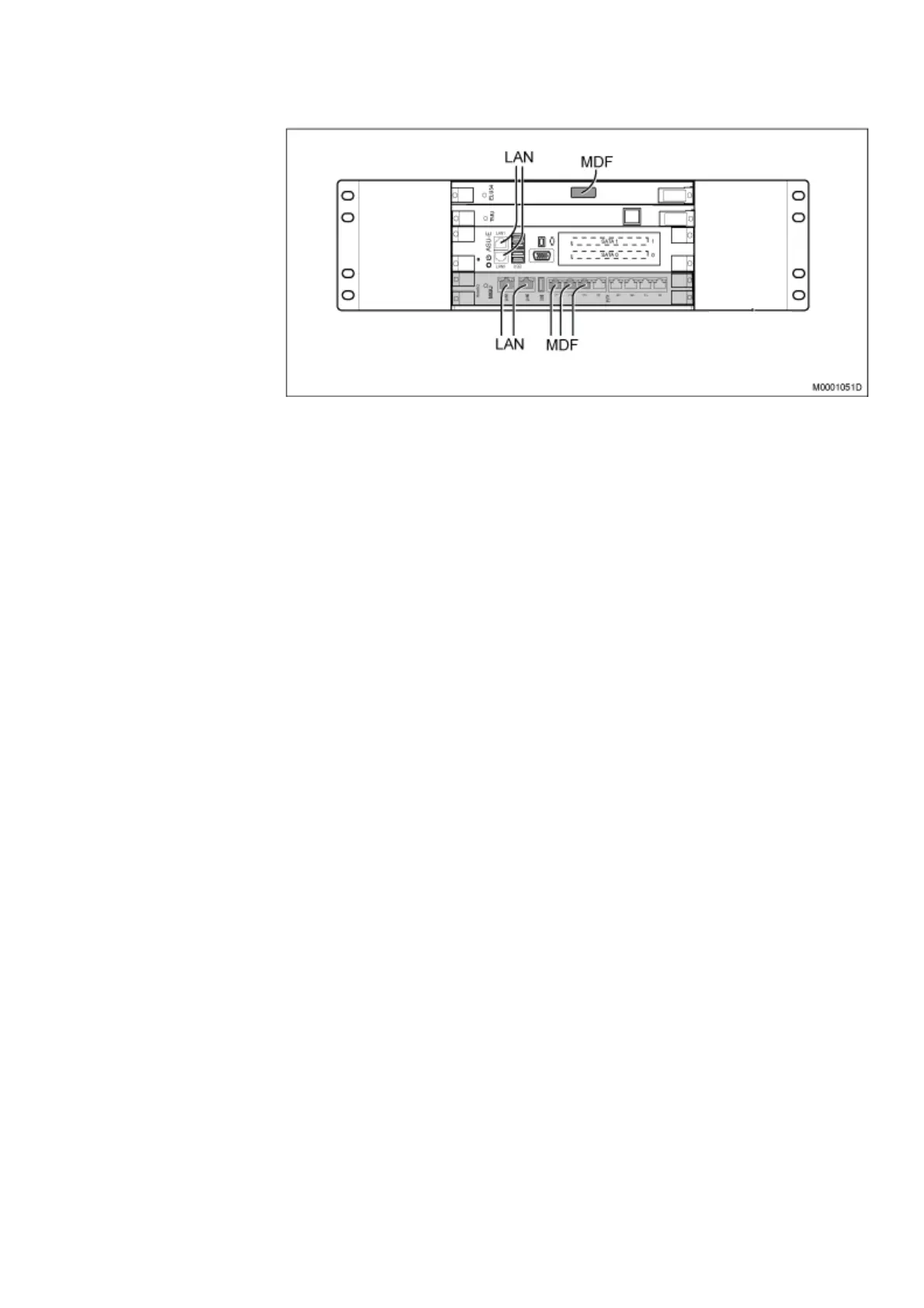

Figure 16: MX-ONE Lite cabling example
The MGU is connected to a server via the corporate LAN (i.e. a Switch). This is also
valid when multiple gateways are connected to a server.
