M800W/M80W Series Connection and Setup Manual

4 General Specifications

IB-1501268-K

4.9.4 Keyboard for 10.4-type Display Unit (FCU8-KB041)

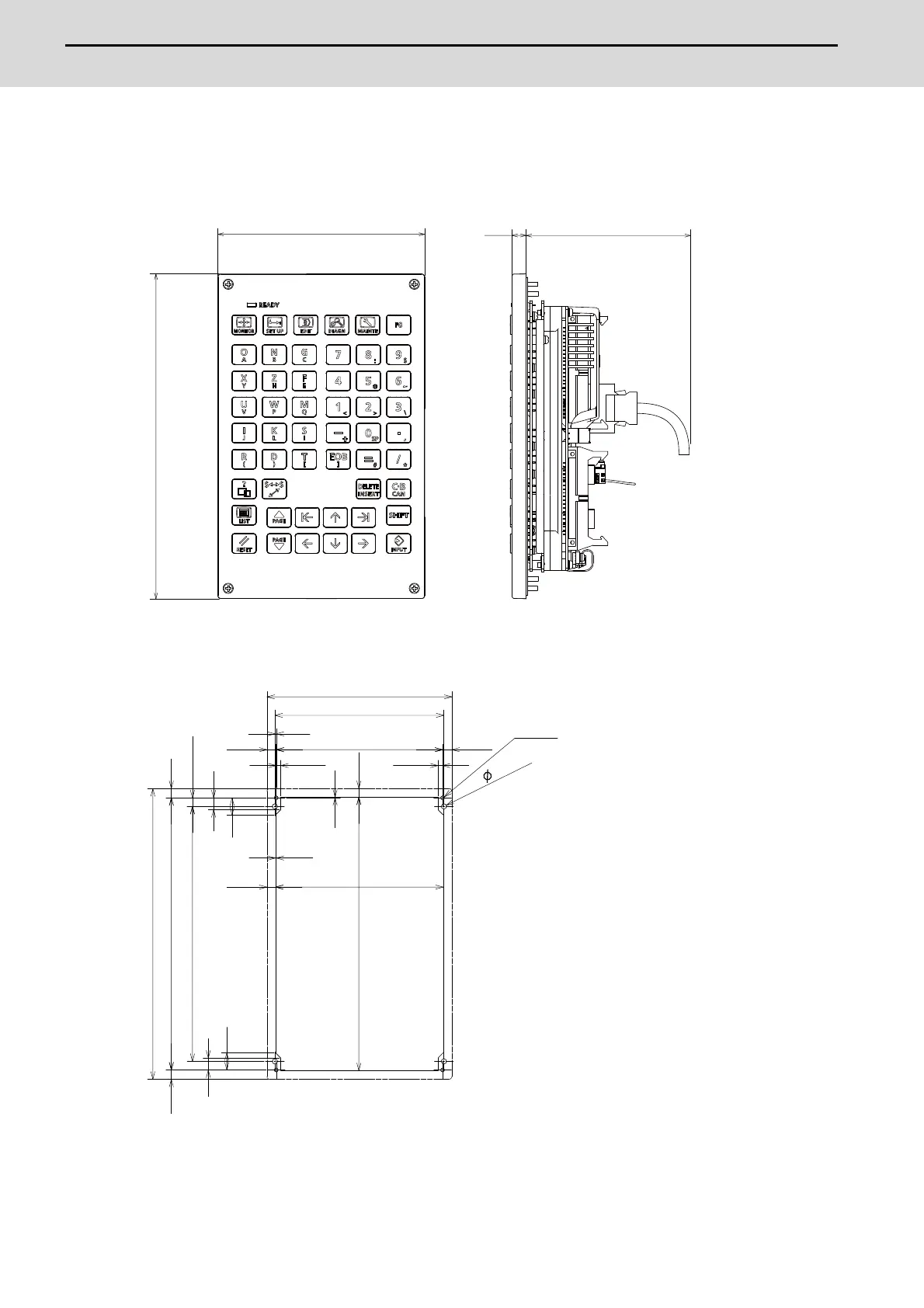

[Outline dimension]

(Note) The above side view shows the state with the operation panel I/O unit mounted.

[Panel cut dimension]

140

220

9.5

[mm]

110

(Space required for wiring)

[mm]

128±0.3

140

127

126±0.3

0.5

207

193±0.3

206±0.3

(7)

(6.5)

3.5

0.5

(6.5)

6.5±0.2

1±0.2

4-M3

220

(Unit outline)

(Square hole

dimension)

(Square hole dimension)

screw

4 - 4 holes

Default Chapter30
