M800W/M80W Series Connection and Setup Manual

9 Connection of Graphic Control Unit

284

IB-1501268-K

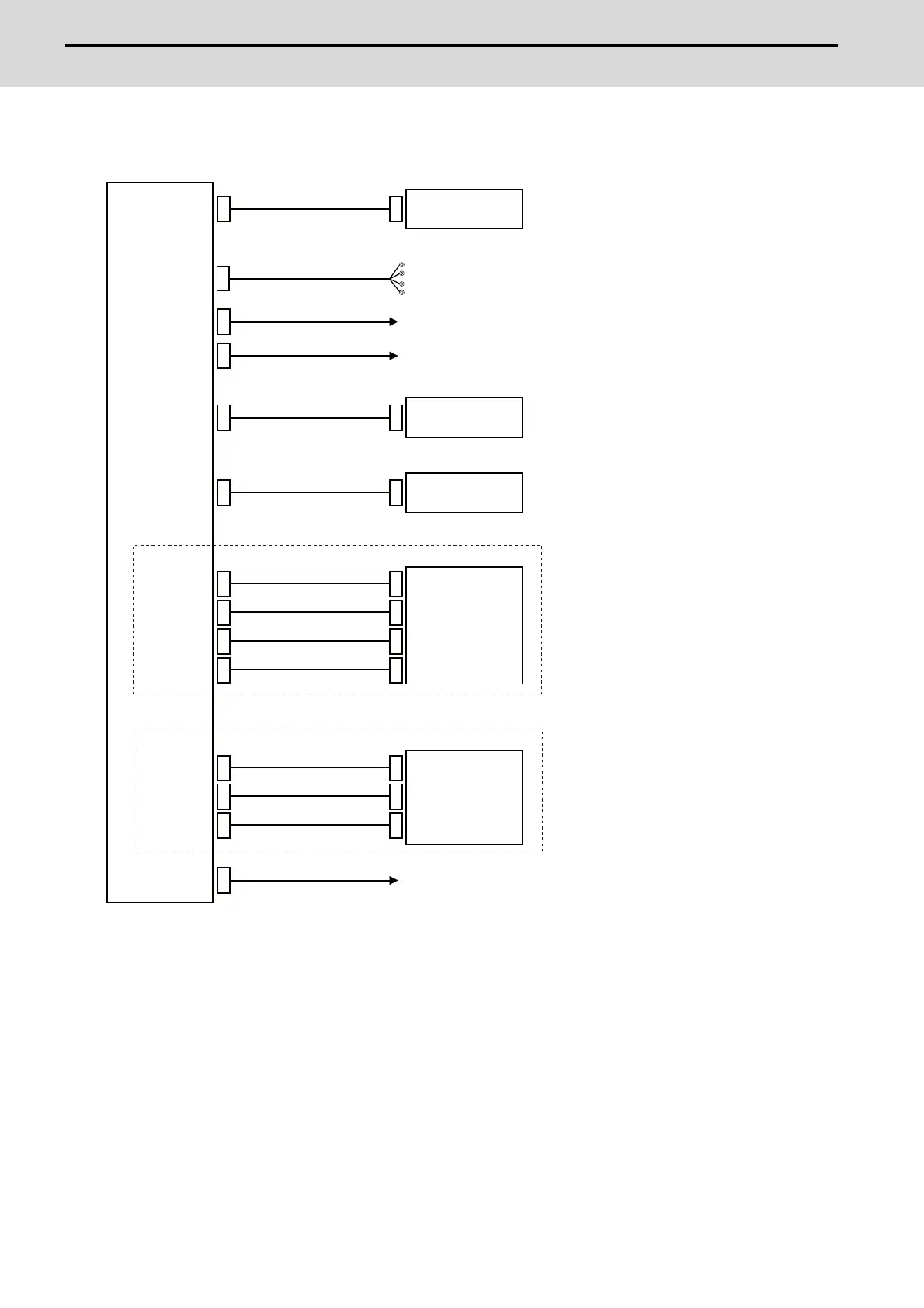

9.1 Graphic Control Unit Connection System Drawing

LCD

SIO

CJ71

EMG

DCIN

J030/J031

J070/J071

CJ71

J010

LAN1

J303

J120

ENC

OFF

J170

GDI

LAN2

J303

MENUKEY

LCD

MENUKEY

cable

Network

Graphic Control Unit

Display unit

RS-232C device

cable

Operation panel I/O unit

cable

Emergency stop signal

cable

Attached cable of unit

ON/OFF switch

cable

Control unit

Attached cable of unit

For 15-type / 10.4-type display unit

Display unit

Attached cable of unit

For 8.4-type display unit

24VDC Stabilized

power supply

Default Chapter30
