M800W/M80W Series Connection and Setup Manual

5 Installation

213

IB-1501268-K

5.2.3 Connecting Spark Killers

The noise which is generated during the operation of the coil or contact needs to be eliminated.

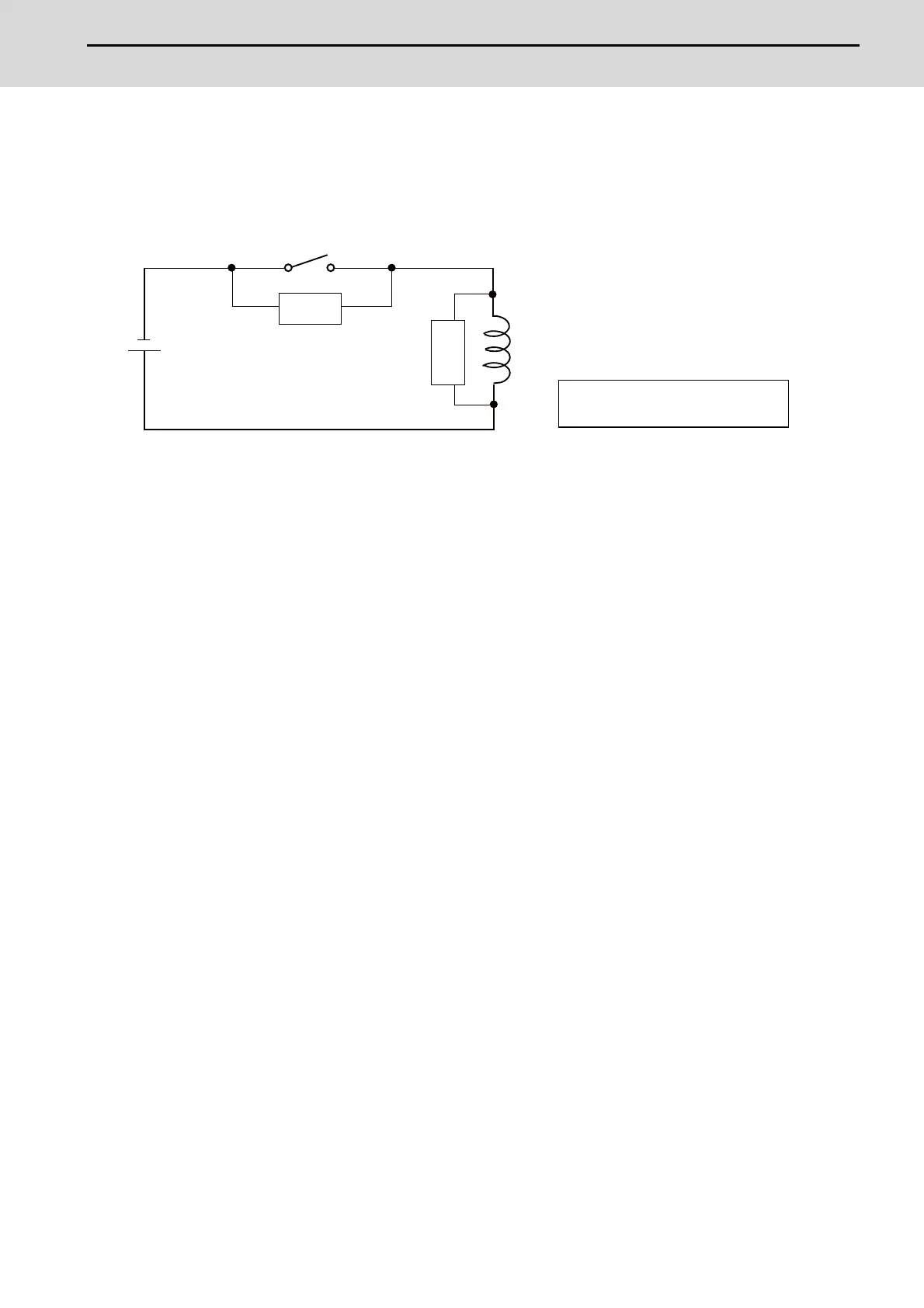

Connect the spark killers (CR composite element) in the parallel with the coil and the contact for the countermeasure.

The Spark killer is effective in eliminating the noise generated by electromagnetic induction.

C : 0.033to0.1μF

R : 10to120Ω

Contact

Spark

killer

Coil

Spark

killer

Spark killer
