M800W/M80W Series Connection and Setup Manual

18 Cable

389

IB-1501268-K

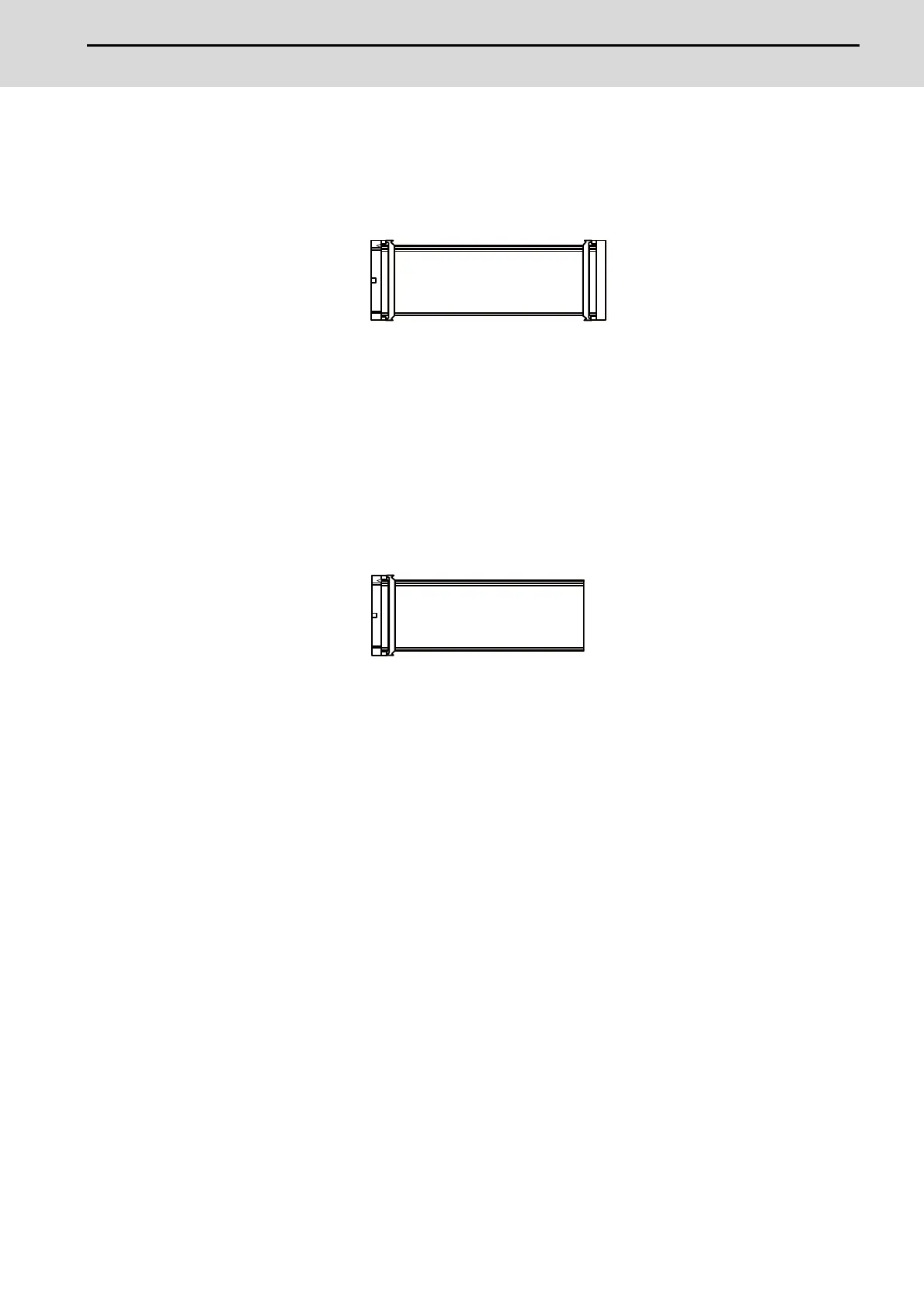

18.2.22 J350 Cable

Max. cable length: 50m

Application: DI/DO

18.2.23 J351 Cable

Max. cable length: 50m

Application: DI/DO

[CJ31,CJ32,CJ33,CJ34,CG31,CG32,CG33,CG34]

Connector: XG4M-4030 / 7940-6500SC

Strain relief: XG4T-4004 / 3448-7940

Manufacturer: OMRON / 3M

Wire material: UL2651 AWG28x40 (FLEX-S(40)-7/0.127 7030 2651P)

Manufacturer: Oki Electric Cable

[CJ31,CJ32,CJ33,CJ34,CG31,CG32,CG33,CG34]

Connector: XG4M-4030 / 7940-6500SC

Strain relief: XG4T-4004 / 3448-7940

Manufacturer: OMRON / 3M

Wire material: UL2651 AWG28x40 (FLEX-S(40)-7/0.127 7030 2651P)

Manufacturer: Oki Electric Cable

CJ31,CJ32,CJ33,CJ34,

CG31,CG32,CG33,CG34

CJ31,CJ32,CJ33,CJ34,

CG31,CG32,CG33,CG34
