M800W/M80W Series Connection and Setup Manual

8 Connection of Personal Computer Unit

279

IB-1501268-K

8.2 Connecting with Power Supply

Connect 24VDC power supply (general-purpose stabilized power supply) to the personal computer unit.

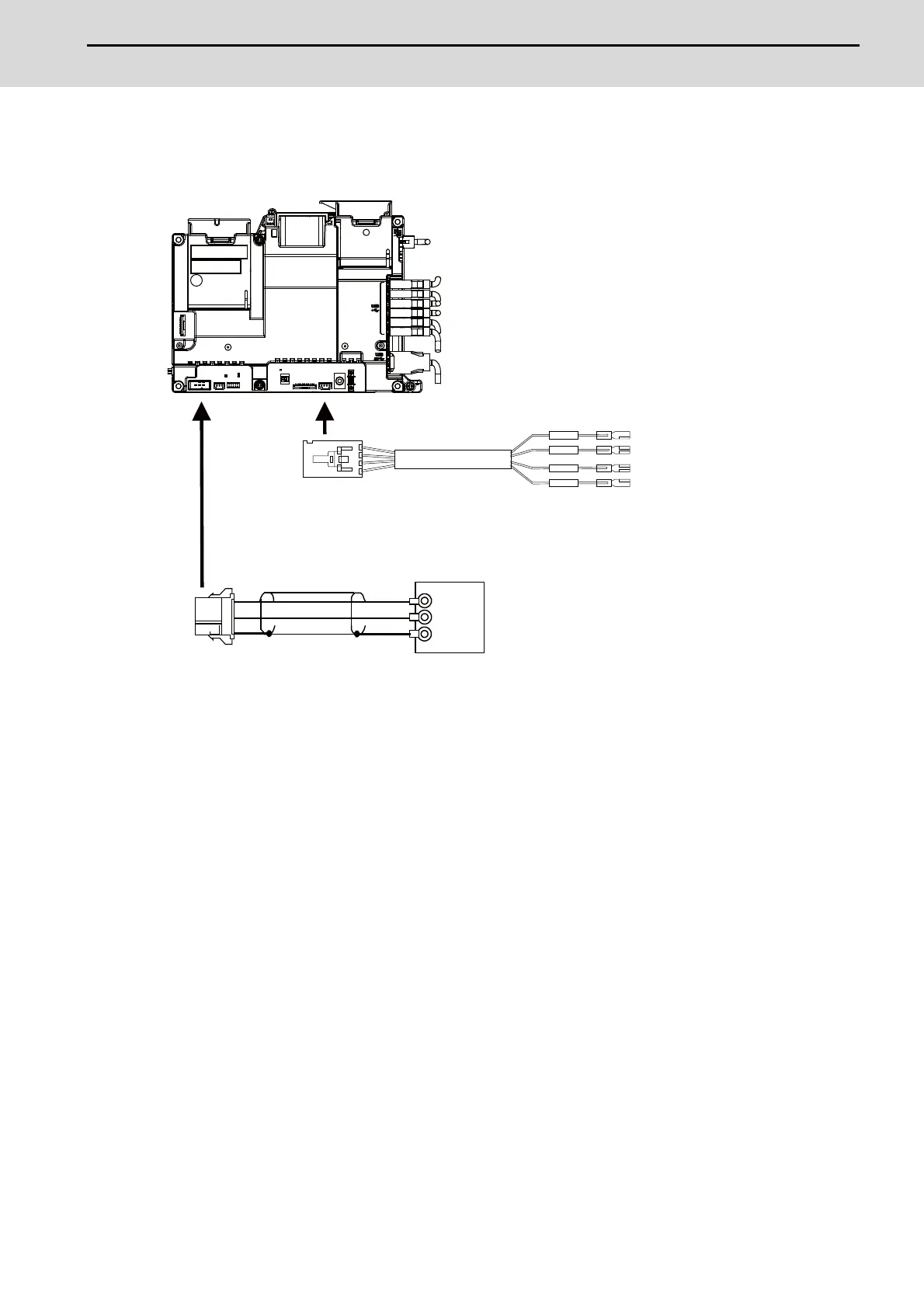

Cable drawing "Cable : J070/J071 Cable", "Cable : G170 Cable"

Connector pin assignment: "General Specifications: Personal Computer Unit" (DCIN connector, ON/OFF

connector)

+24V

DCIN

OFF

LGOFF

LGON

ON/OFF

G170

J070/J071

Faston terminal#110

for ON/OFF switch

24VDC stabilized power supply
