M800W/M80W Series Connection and Setup Manual
41 Appx.4: EMC Installation Guidelines
634
IB-1501268-K
41.6.2 Ferrite Core
The ferrite core is mounted integrally with the plastic case.
This can be installed with one touch without cutting the interface cable or power supply cable.
This ferrite core is effective for common mode noise, and countermeasures for noise can be taken without affecting the
quality of the signal.
Recommended ferrite core: TDK ZCAT Series
(*1) The M stamp is attached.
(*2) A fixing band is attached at shipment.
(*3) The core is fixed with double-sided tape. (The tape is enclosed with the part.)
● ZCAT-B type: Cabinet fixing type installation hole φ4.8 to 4.9 mm, plate thickness 0.5 to 2 mm
● ZCAT-AP, ZCAT-C type: Structure that prevents easy opening after case is closed.
Unit: mm
Part Name A B φC φDE
Applicable cable outer
diameter
Mass (g)
ZCAT1518-0730-M(-BK) (*1) 22±1 18±1 7±1 15±1 - 7 maximum 6
ZCAT1518-0730(BK) (*2) 22±1 18±1 7±1 15±1 - 7 maximum 6
ZCAT2017-0930-M(-BK) 21±1 17±1 9±1 20±1 - 9 maximum 11
ZCAT2032-0930-M(-BK) (*1) 36±1 32±1 9±1 19.5±1 - 9 maximum 22
ZCAT2032-0930(-BK) (*2) 36±1 32±1 9±1 19.5±1 - 9 maximum 22
ZCAT2132-1130-M(-BK) (*1) 36±1 32±1 11±1 20.5±1 - 11 maximum 22
ZCAT2132-1130(-BK) (*2) 36±1 32±1 11±1 20.5±1 - 11 maximum 22
ZCAT3035-1330-M(-BK) (*1) 39±1 34±1 13±1 30±1 - 13 maximum 63
ZCAT3035-1330(-BK) (*2) 39±1 34±1 13±1 30±1 - 13 maximum 63
ZCAT1525-0430AP-M(-BK) 25±1 20±1 4±1 15±1 11.5±1 2.5 to 4 (USB) 7
ZCAT1325-0530A-M(-BK) (*1) 25±1 20±1 5±1 12.8±1 11.2±1 3 to 5 (USB) 7
ZCAT1325-0530A(-BK) 25±1 20±1 5±1 12.8±1 11.2±1 3 to 5 (USB) 7
ZCAT1730-0730A-M(-BK) 30±1 23±1 7±1 16.5±1 15±1 4 to 7 (USB) 12
ZCAT2035-0930A-M(-BK) (*1) 35±1 28±1 9±1 19.5±1 17.4±1 6 to 9 22
ZCAT2035-0930A(-BK) 35±1 28±1 9±1 19.5±1 17.4±1 6 to 9 22
ZCAT2235-1030A-M(-BK) 35±1 28±1 10±1 21.5±1 20±1 8 to 10 27
ZCAT2436-1330A-M(-BK) 36±1 29±1 13±1 23.5±1 22±1 10 to 13 29
ZCAT2017-0930B-M(-BK) 21±1 17±1 9±1 20±1 28.5±1 9 maximum 12
ZCAT2749-0430C-M(-BK) 49±1 27±1 4.5±1 19.5±1 - 4.5 maximum 26
ZCAT4625-3430D(-BK) 45.5±1 24.5±1 34±1 12±1 - 26 For core flat cable 32
ZCAT4625-3430DT(-BK) (*3) 45.5±1 24.5±1 34±1 13±1 - 26 For core flat cable 32
ZCAT6819-5230D(-BK) 67.5±1 18.5±1 52±1 16±1 - 40 For core flat cable 58
ZCAT6819-5230DT(-BK) (*3) 67.5±1 18.5±1 52±1 17±1 - 40 For core flat cable 58

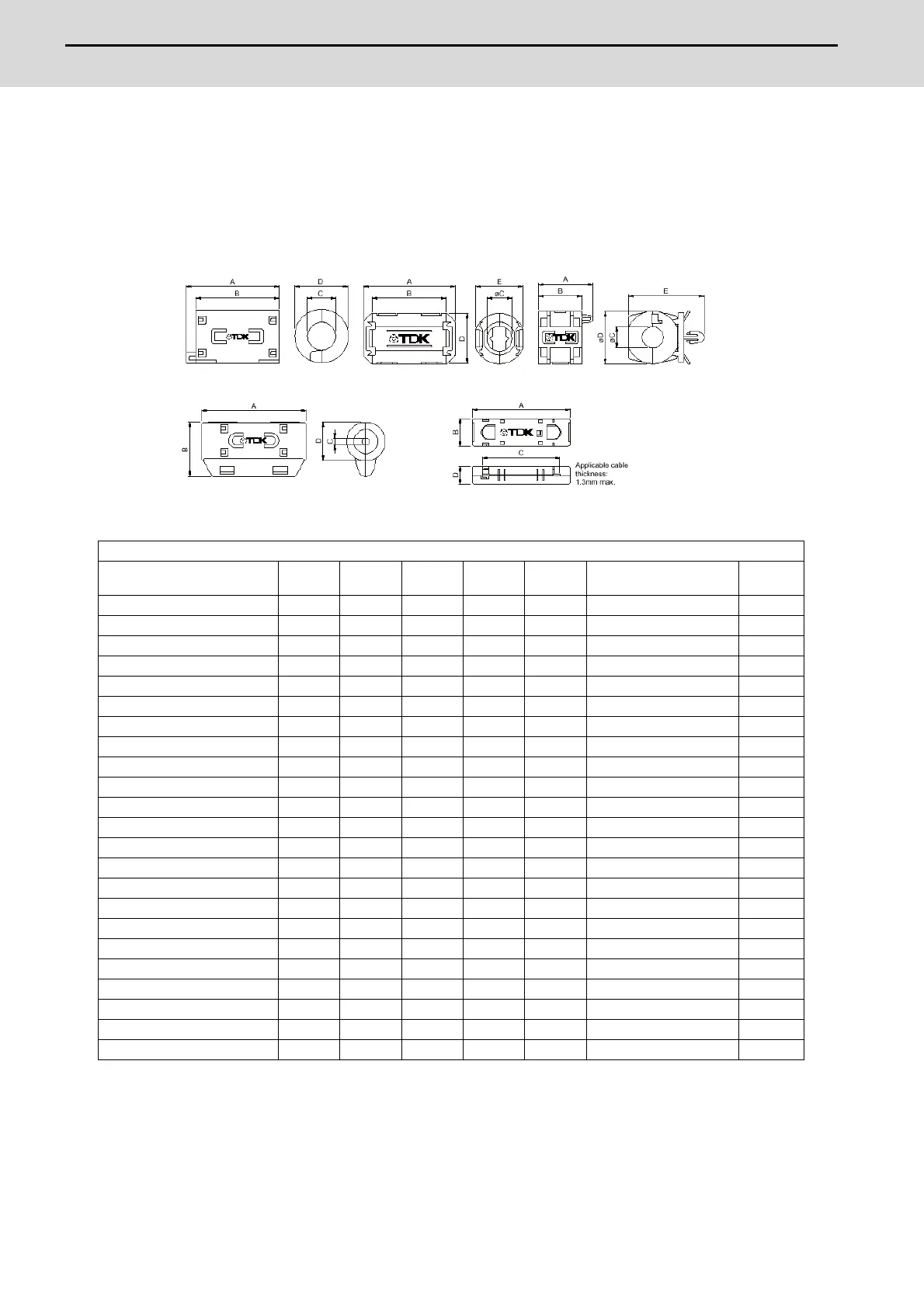

ZCAT-A, ZCAT-AP typeShape and dimensions
ZCAT type
ZCAT-C type
ZCAT-B type
ZCAT-D type
