M800W/M80W Series Connection and Setup Manual
4 General Specifications
193
IB-1501268-K

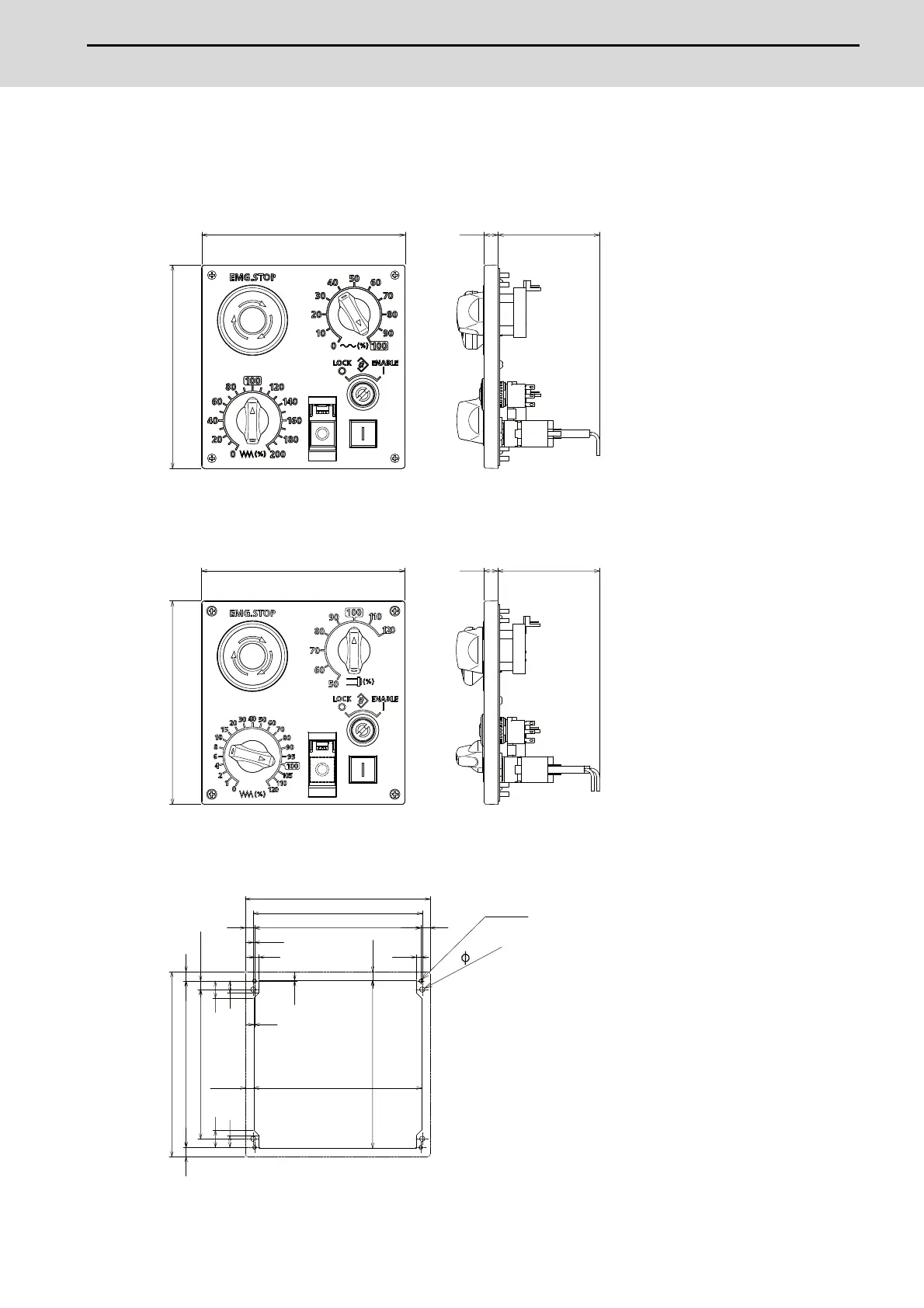

4.17.2 Sub Panel A (FCU8-KB931 / FCU8-KB941)
[Outline dimension : FCU8-KB931]
[Outline dimension : FCU8-KB941]
[Panel cut dimension : FCU8-KB931 / FCU8-KB941]
[mm]
140
140
9.5
70
(Space required for
wiring)
[mm]
140
140
9.5
70
(Space required for
wiring)
[mm]
128±0.3
140
127
126±0.3
0.5
127
113±0.3
126±0.3
(7) (7)
(7)
(7)
9
13
9
13
(6.5)
3.53.5
0.5
(6.5)
6.5±0.2
1±0.2
4-M3
140
(Unit outline)
(Unit outline)
(Square hole dimension)
(Square hole
dimension)
screw
4 - 4 holes
