Annex Dimensions
SD-/SQ series A - 19
Robot CPU Q172DRCPU
R001508E

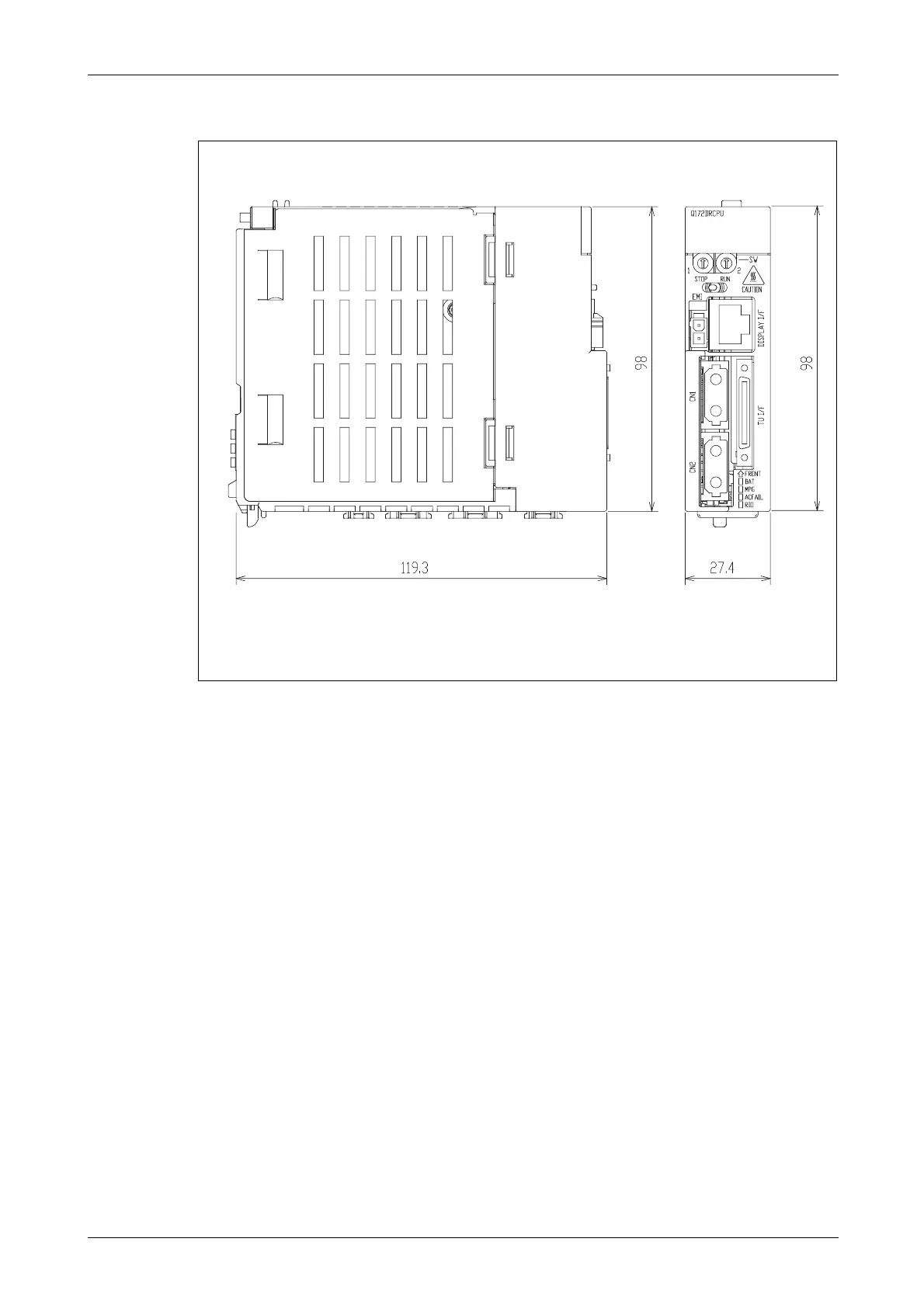

Fig. A-19:
Dimensions of robot CPU Q172DRCPU
All dimensions in mm
Weight: 0.33 kg
