Set up the robot arm Installation
3 - 16
3.3 Set up the robot arm
3.3.1 Set up the articulated arm robot
The table below shows how to set up and fix the articulated arm robot.
The base area of the robot arm has been leveled by machine.
If the bas area is too uneven then this may result in robot arm malfunctions.
Fix the robot arm above the assembly boreholes on the four outer edges of the base area using
the supplies Allen head screws.
Align the robot arm horizontally.
The average surface finish of the assembly surface should be Ra = 6.3
μ
m. If the surface is too
rough then this may result in deviations in the position of the robot arm.
To avoid position deviations, the peripheral equipment that the robot accesses as well as the robot
arm itself should be installed on a common assembly platform/area.
The base area must be designed so that no distortion can occur, even from the loads and vibrations
emanating from the robot itself.
Only remove the transport locks after setting up the robot arm.
If the robot is mounted on the ceiling then the MEGDIR parameter must be changed. Additional
information on this parameter is contained in the operation and programming instructions of the
control units.
High loads and strains occur on the base area when operating the robot at high speeds. Make
sure that the base area is suitable for the high forces and moments, as listed in Tab. 3-3.

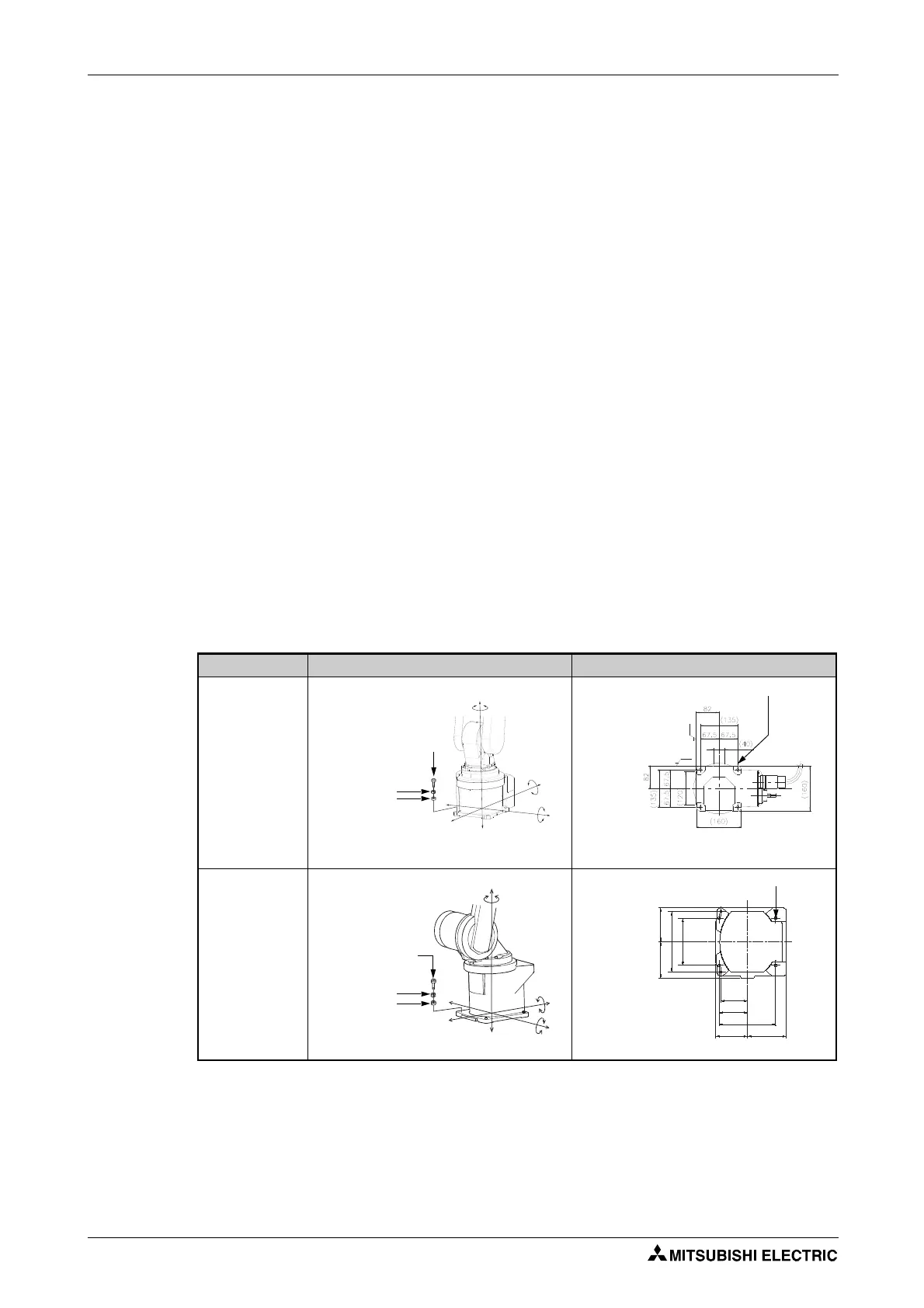

Robot arm Fixture View from below
RV-2SD,
RV-2SQ
R001765E R001766E
RV-3SD/3SDJ,
RV-3SQ/3SQJ
R001441E R001442E
Tab. 3-2: Set up the robot arm (1)
F
V
F
V
F
H
F
H
F
H
F
H
M
L
M
L
M
T
Snap ring
Washer
Fixing
screws (4)
M8 x 35 Allen screw
Installation side
Front side of the
robot arm
4-9 fixing boreholes
Installation
side
Fixing
screws (4)
M8 x 40 Allen screw
Snap ring
Washer
Installation
side
Installation side
Front side of the
robot arm
4-9 fixing boreholes
