Transport robot arm Installation
3 - 12
3.2.4 RH-6SDH/6SQH
Two persons are always required for transport. When doing so, always carry the robot arm at points
in the base area and
on arm 2, as well as at transport lock A (see Fig. 3-10). Never carry the
robot at the sides or at its covers because these may become loose and can destroy the robot arm.
Never carry the robot at its side or at the axes without holding points because this could result in
damages.
Use a dolly if transporting longer distances. Only carry at the holding points for short periods of time.
Do not strain any covers.
Avoid knocks (impact loads) when transporting the robot arm.
Only remove the transport locks after installing the robot arm.
E
ATTENTION:
● The transport locks must not be removed before transport.
● Two persons are always required to carry the robot arm.
● Always carry the robot arm at holding points and . Never carry the robot arm at the
covers because this may result in damages.
R001369E

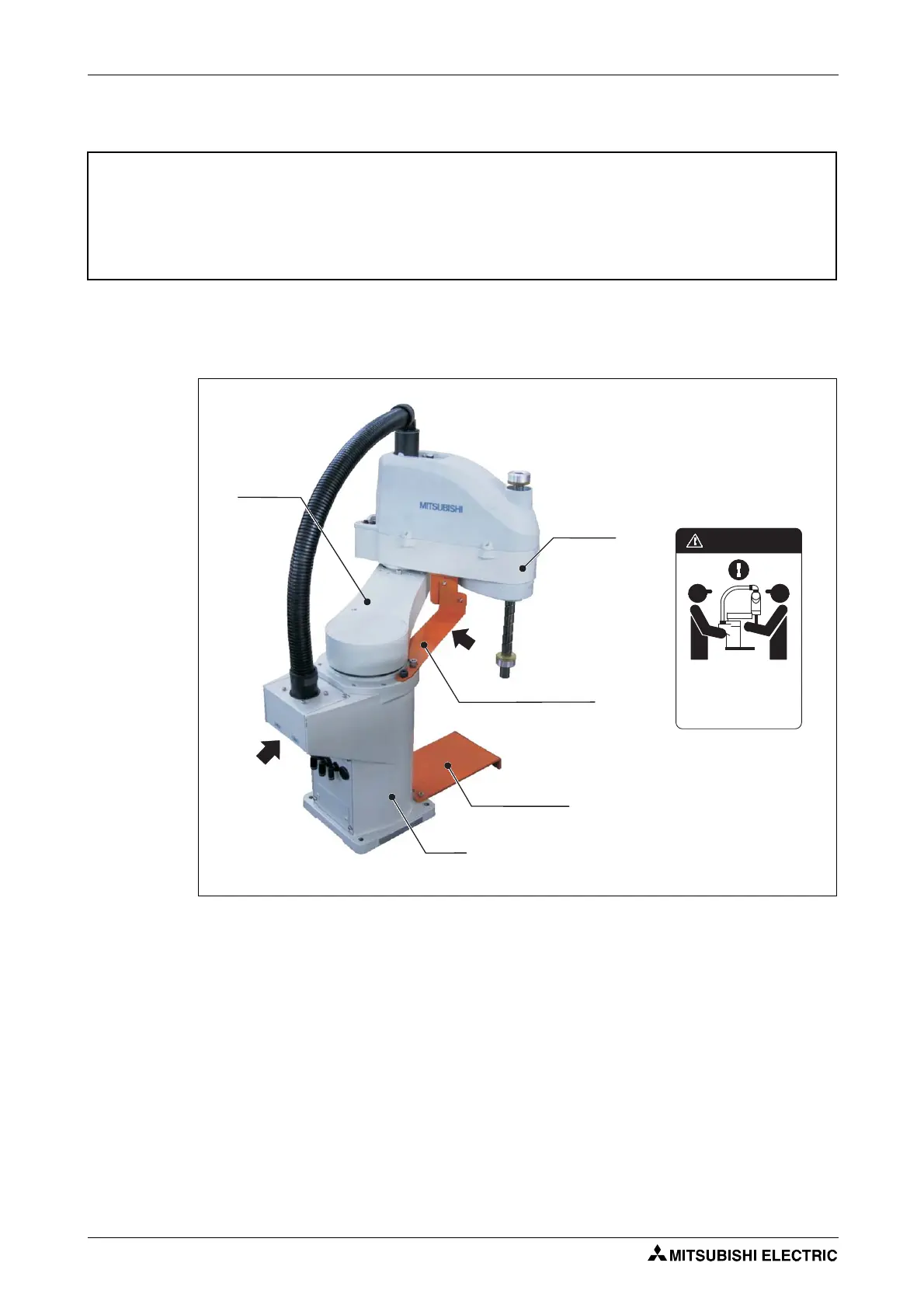

Fig. 3-10: Holding points on robot arm
Transport lock A
Arm 1
Supporting bracket
Arm 2
Base
Two persons are
always required
for transport!
