Installation Unpacking the robot system
SD-/SQ series 3 - 3
RV-12SD/SDL and RV-12SQ/12SQL
The robot arm is packaged in a wooden frame. The following figure shows you step-by-step how to
unpack the robot arm.
Place the wooden frame on an even surface.
To open, remove the nails from the wooden frame.
Remove the wooden frame and the packaging material.
Remove the four fixing screws with which the base is screwed onto the wooden frame.
Transport the robot arm to the place of installation, as described in Section 3.2.
NOTE
Keep the packaging and transport locks for later transport.
R001458E

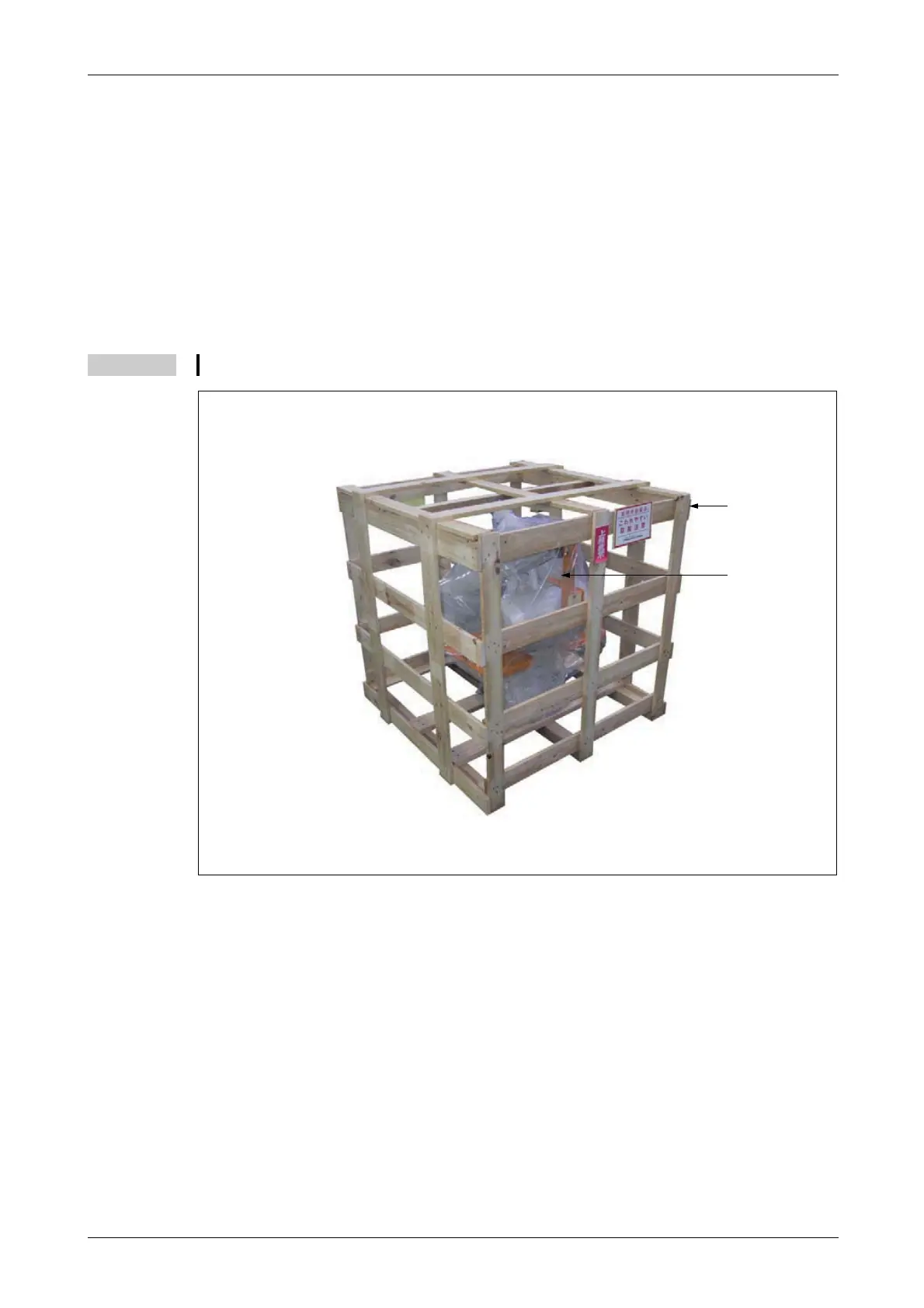

Fig. 3-3: Unpack articulated arm robot RV-12SD/SDL and RV-12SQ/12SQL
