Installation Transport robot arm

SD-/SQ series 3 - 9



Never carry the robot arm at its side or at the axis without holding points because this could result

in damages.



Use a dolly if transporting longer distances. Only carry at the holding points for short periods of time.



Avoid knocks (impact loads) when transporting the robot arm.

R001298E

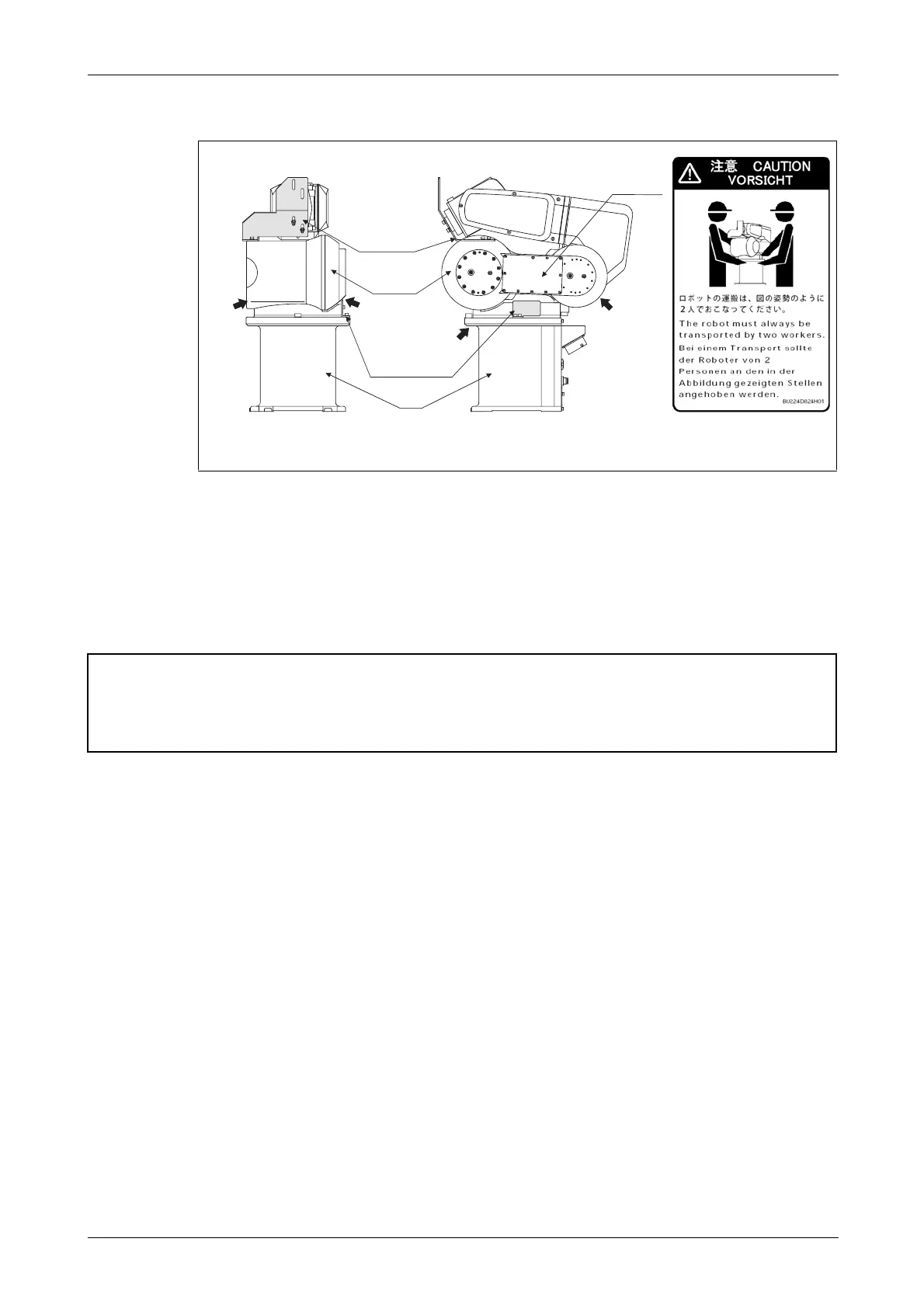

Fig. 3-8: Transport 6-axis robot arm RV-3SD or RV-3SQ

ATTENTION:

Only remove the transport locks after installing the robot arm.

Transport lock J1



Upper arm



Base

Front view

Shoulder

Transport lock

Side view
