Installation Installation of robot CPU Q172DRCPU
SD-/SQ series 3 - 27
Removal
E
ATTENTION:
● The mains voltage must always be switched off before removing a module.
● When removing a module, make sure that any fixing screw is release and that the catch on
the module is not longer inserted into the guide. Otherwise, the mounting devices on the
module may be damaged.
QH0008E

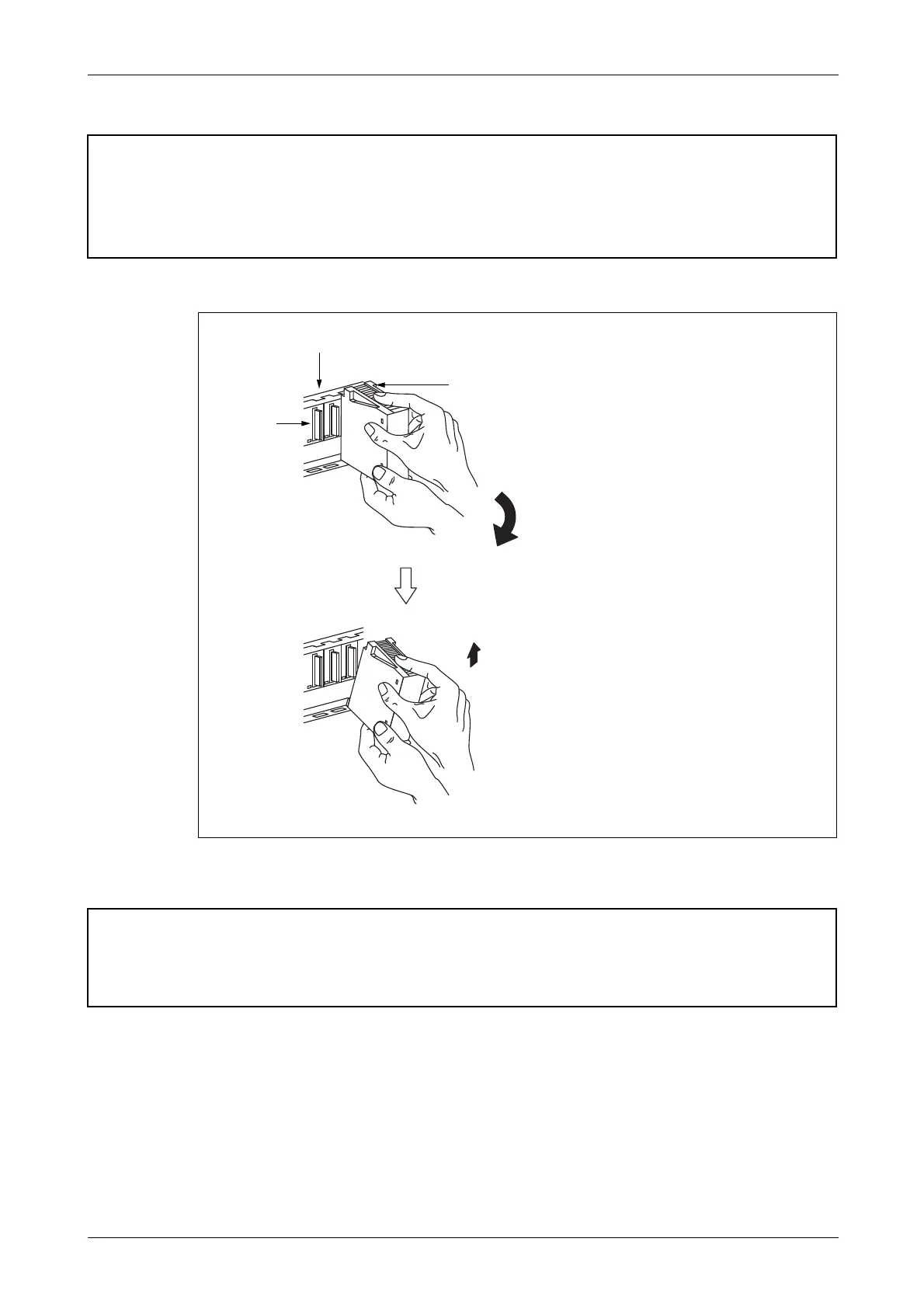

Fig. 3-22: Removal of the module
E
ATTENTION:
When removing the robot CPU, please note that the heat sink of the module may be very hot.
There is a possible risk of burns.
Slot
Module
Rack
To remove the module, hold it in both hands and
press the upper catch downwards.
With the catch pressed, tilt the module down-
wards slightly. The lower catch acts as a pivot
point.
Now lift the lower catch from the guide and
remove the module.
