Mitsubishi 00JCPU User Manual

6 - 36
6.10 Intelligent Function Module Switch Setting
(1) Definition
This function sets the switches of each Q series-compatible intelligent function module and interrupt module in
GX Developer.
(2) Writing the switch settings
The switch settings will be written from the CPU module to each intelligent function module and interrupt module
when:
• the CPU module is powered off and then on, or
• the CPU module is reset.

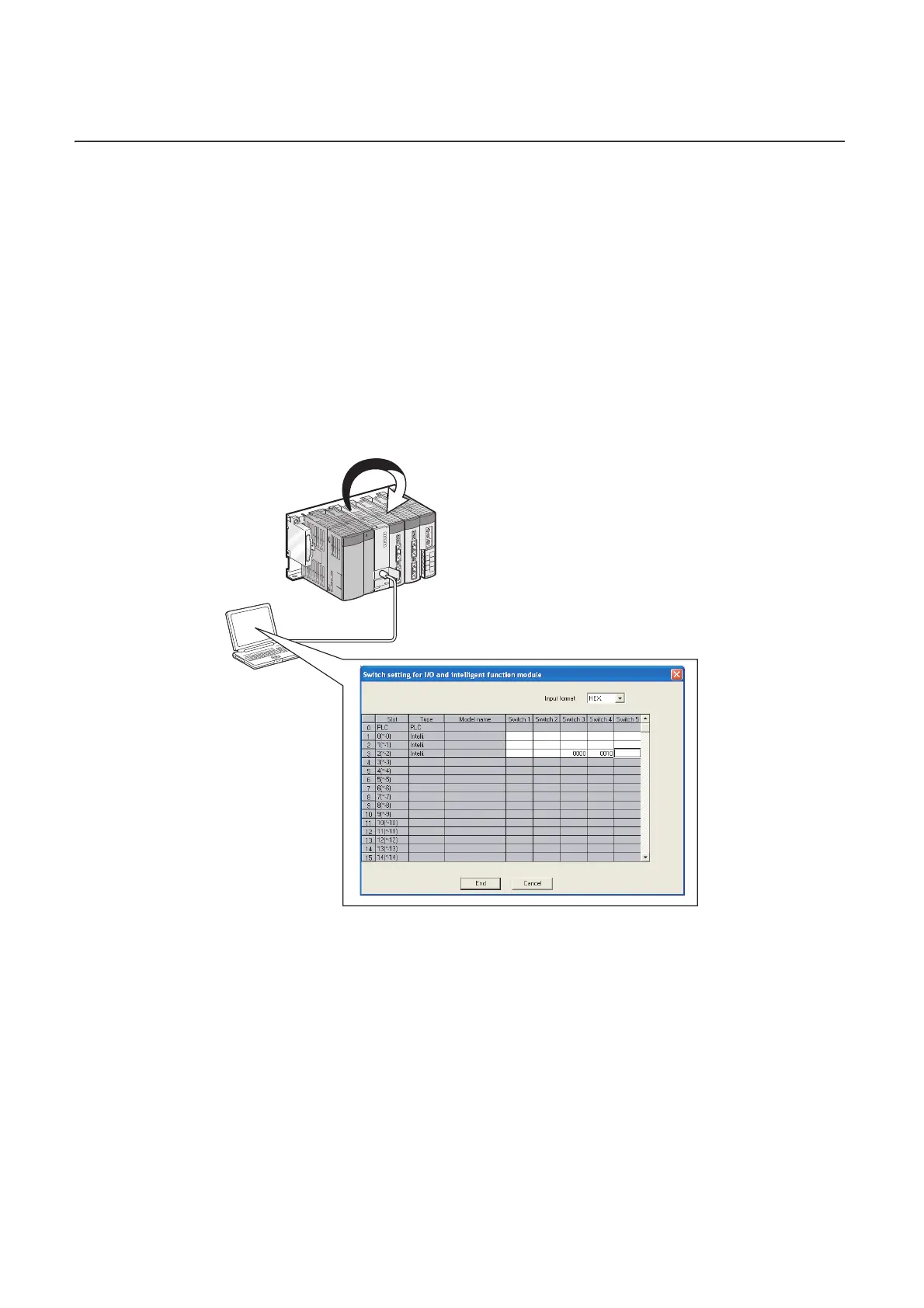

Figure 6.25 Writing the switch settings to each intelligent function module
GX Developer
1) Write the
settings.
The settings are written when the CPU module
is powered off and then on or reset.
2)
