9.2.14Link special register (SW)
(1) Definition
The link special register (SW) is used to store communication status data and error data of intelligent function
modules, such as CC-Link IE Controller Network modules and MELSECNET/H network modules.
Because the data link information is stored as numeric data, error locations and causes can be checked by
monitoring the link special register.
(2) Number of link special register points
The points for the link special register depends on the CPU module.
Remark
For details of the link special register, refer to the manual for each intelligent function module that has the link special
register.

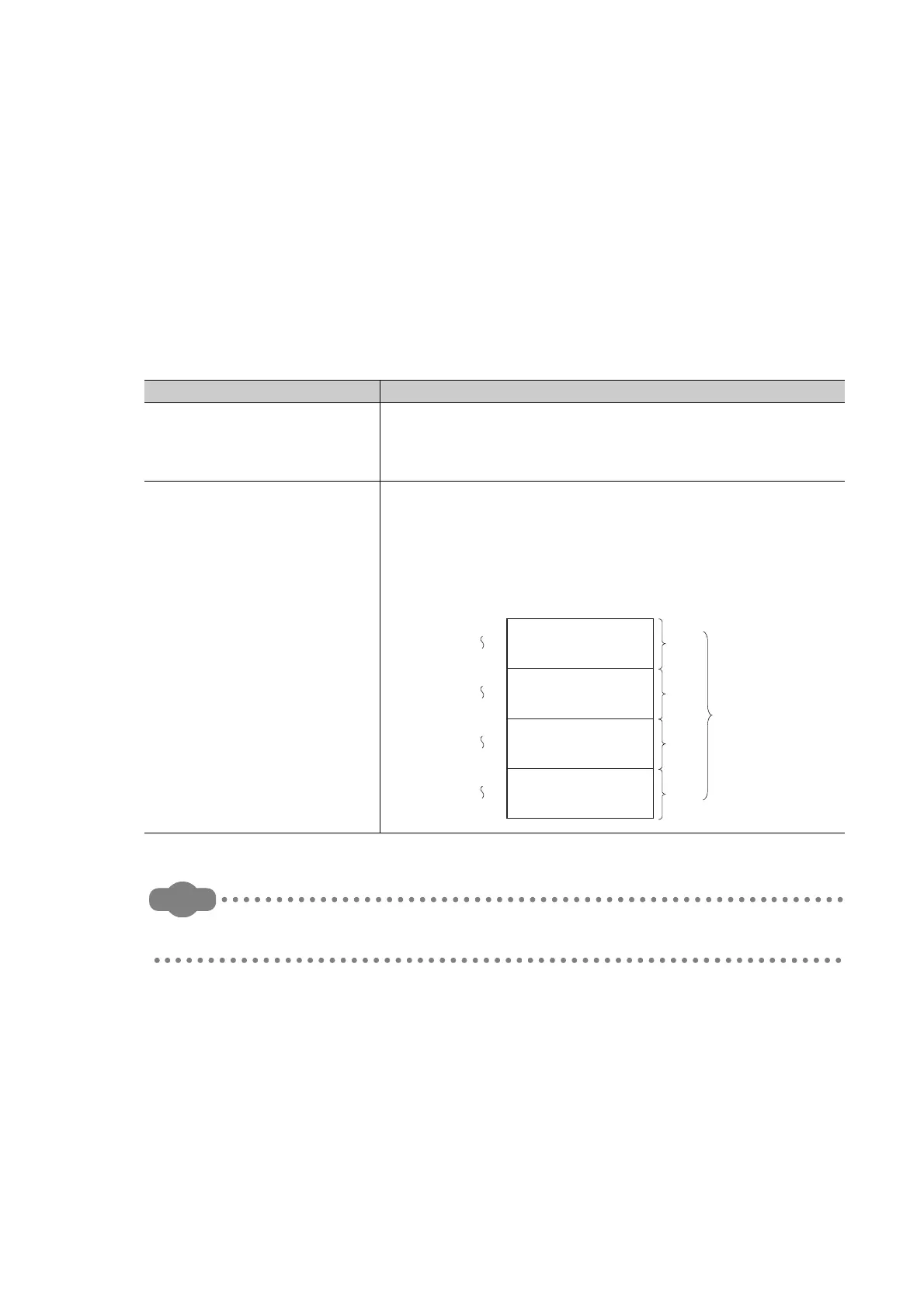

Table9.6 Link special register points for each CPU module
CPU module Link special register points
Basic model QCPU
The points for the link special register in the CPU module is 1024 (SW0 to SW3FF).
To an intelligent function module that has a link special register, such as a CC-Link
IE Controller Network module or MELSECNET/H network module, 512 points are
assigned.
High Performance model QCPU,
Process CPU, and Redundant CPU
The points for the link special register in the CPU module is 2048 (SW0 to SW7FF).
To an intelligent function module that has a link special register, such as a CC-Link
IE Controller Network module or MELSECNET/H network module, 512 points are
assigned.
The link special register can be allocated as shown below.
SW200
SW3FF
SW400
SW5FF
SW600
SW7FF
SW0
SW1FF
Link special register
For 1st network module
For 2nd network module
For 3rd network module
For 4th network module
2048
points
512
points
512
points
512
points
512
points
