6.14 Sampling Trace Function
2) When the sampling trace is interrupted
If SM801 (Trace start) is turned off during sampling trace, execution of the sampling trace will be interrupted.
When the sampling trace is interrupted, the trace count is cleared.
The sampling trace restarts by turning on SM801.
*1: SM801 also turns off when the sampling trace is interrupted by GX Developer.

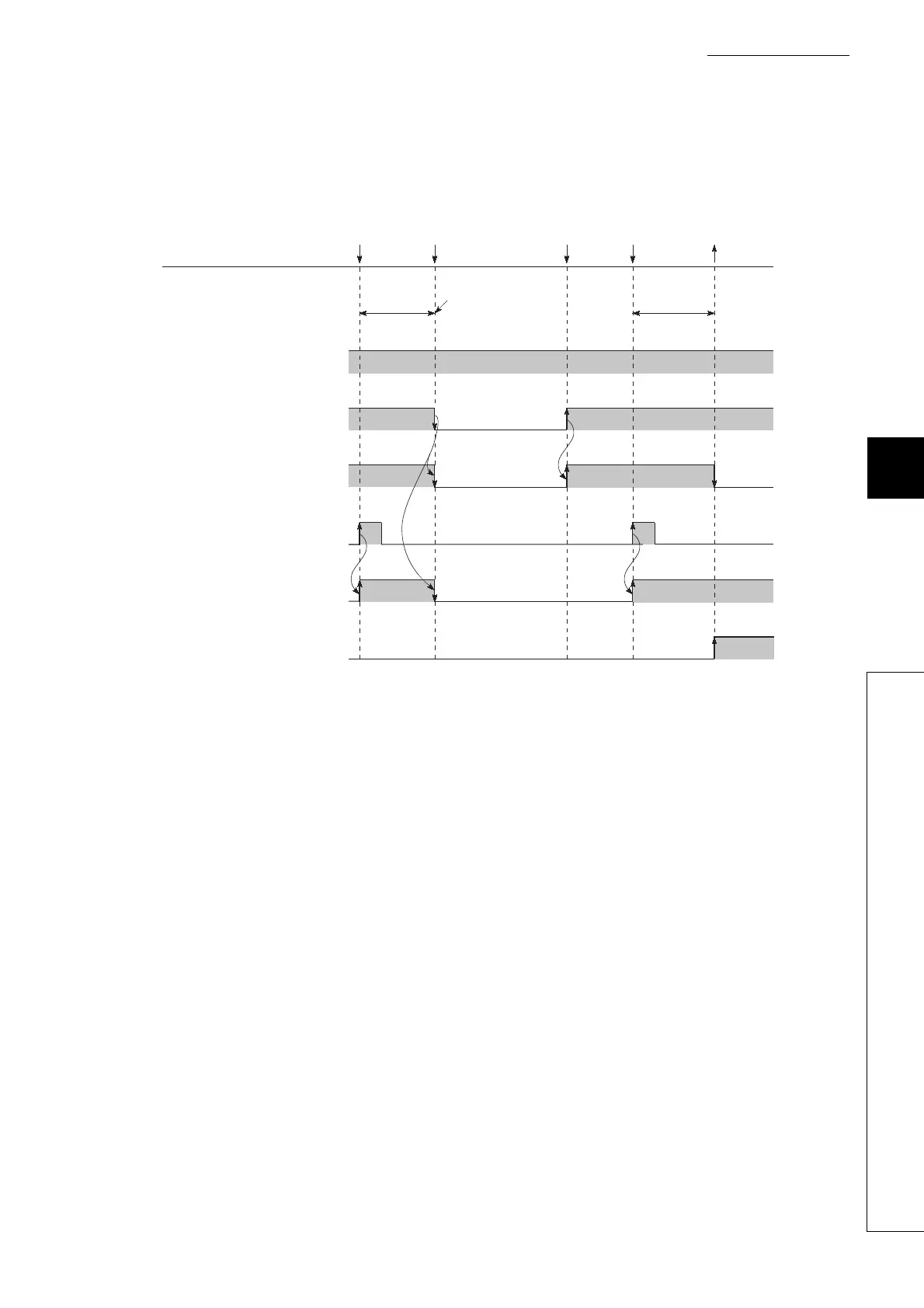

Figure 6.58 Operation flow chart of the special relay (for sampling trace interruption)
SM800
(Trace preparation)
SM801
(trace start)
SM802
(Trace execution in progress)
SM803
(Trace trigger)
SM804
(After trace trigger)
SM805
(Trace completed)
Trigger
executed
Trigger
executed
SM801
off
*1
SM801
on
Trace
completed
Number of
traces
after trigger
Number of
traces
after trigger
The trace count is cleared.
