(2) PLC system
Parameters required for use of the CPU module are set.
The system can be controlled with default values.
(To the next page)

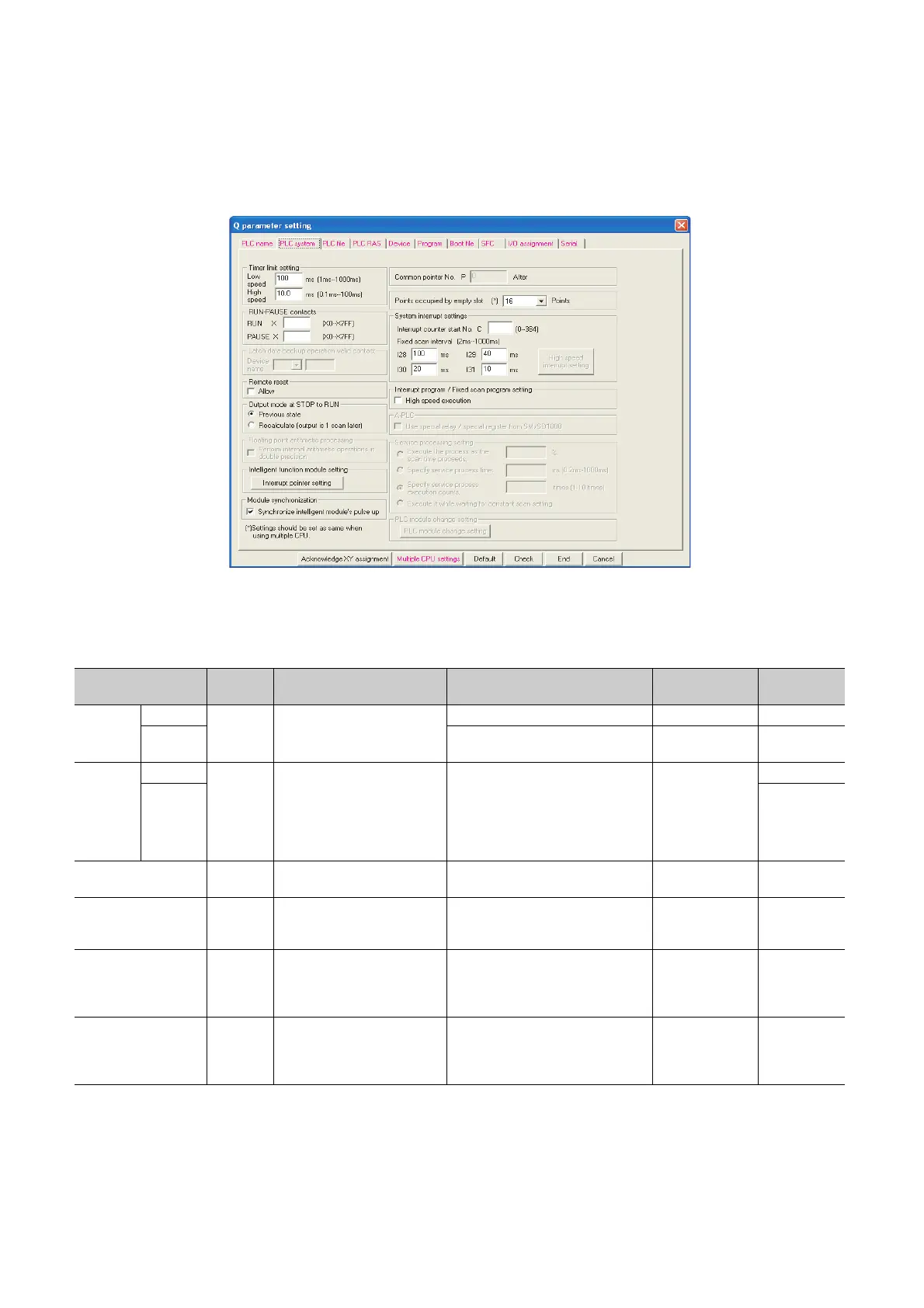

Figure 8.2 PLC system
Table8.2 PLC system setting list
Item
Parameter
No.
Description Setting range Default Reference
Timer limit
setting
Low speed
1000
H
Set the time limit for the low
speed timer or high speed timer.
1ms to 1000ms (in increments of 1ms) 100ms Section 9.2.10
High
speed
0.1ms to 100.0ms (in increments of
0.1ms)
10.0ms Section 9.2.10
RUN-
PAUSE
contact
RUN
1001
H
Set the contacts that control
RUN/PAUSE of the CPU module.
Setting of only the PAUSE
contact is not allowed. (Setting of
only the RUN contact or the RUN
+ PAUSE contacts is available.)
X0 to X7FF Blank
Section 6.6.1
PAUSE Section 6.6.2
Remote reset 1002
H
Select whether to allow the
remote reset from GX Developer.
Selected/deselected Deselected Section 6.6.3
Output mode at STOP to
RUN
1003
H
Set the status of the outputs (Y)
when the operating status is
switched from STOP to RUN.
Previous state, Recalculate (output is 1
scan later)
Previous state Section 6.4
Intelligent function
module setting (Interrupt
pointer setting)
100A
H
Assign the interrupt pointers (I50
to I127) and set the start I/O
number and start SI number of
each intelligent function module.
• Start I/O No.
•Start SI No.
• I50 to I127
Blank Section 6.23
Module synchronization 100C
H
Select whether to synchronize
CPU module startup with
intelligent function module
startup.
Selected/deselected Deselected -
