CHAPTER1 OVERVIEW
1
1.5 Features
1.5.1 Features of the Basic model QCPU
(2) Communication with the personal computer and HMI by the serial communica-
tion function ( Section 6.24)
The Q00CPU and Q01CPU can communicate using the MELSEC communication protocol (hereafter, MC proto-
col) by connecting a RS-232 interface and personal computer or HMI.
The CPU module functions are added at the update of serial number of CPU module or GX Developer version.
For functions added by the update of the Basic model QCPU, refer to Appendix 2.1.

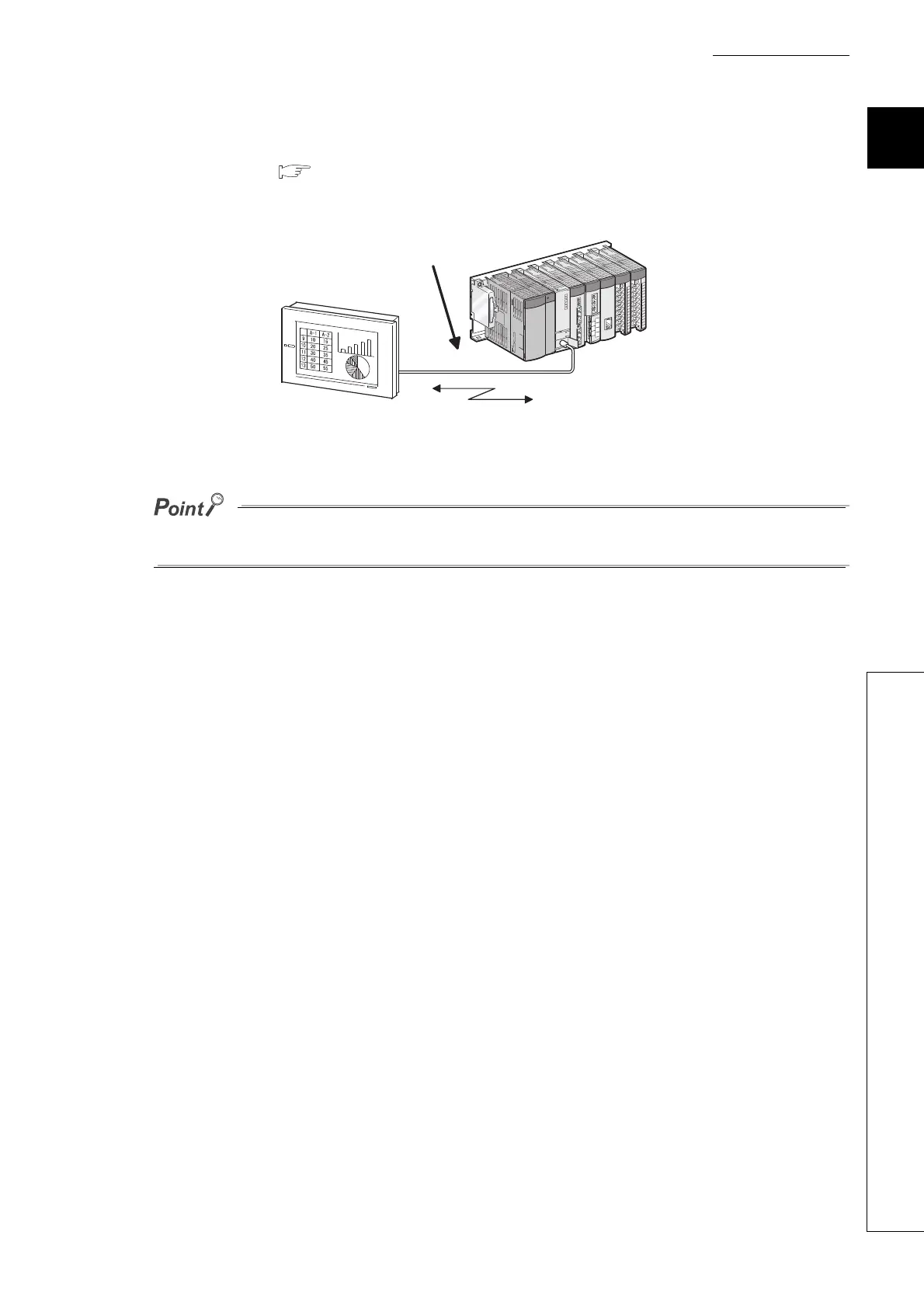

Figure 1.19 Communication with the personal computer or HMI
Personal computer or HMI
RS-232 cable
Communication using the MC protocol
