9 - 68
CHAPTER9 DEVICES
9
9.7 File Register (R) 9.7.4 Registration procedure for the file register
(1) Setting the file register
In the PLC file tab of the PLC parameter dialog box, specify the standard RAM or a memory card to use the file
register in the sequence program.
(a) Not used
Select this in the following cases.
• When not using any file register
• When specifying a file register used in the sequence program (the QDRSET instruction is used for
specification.)

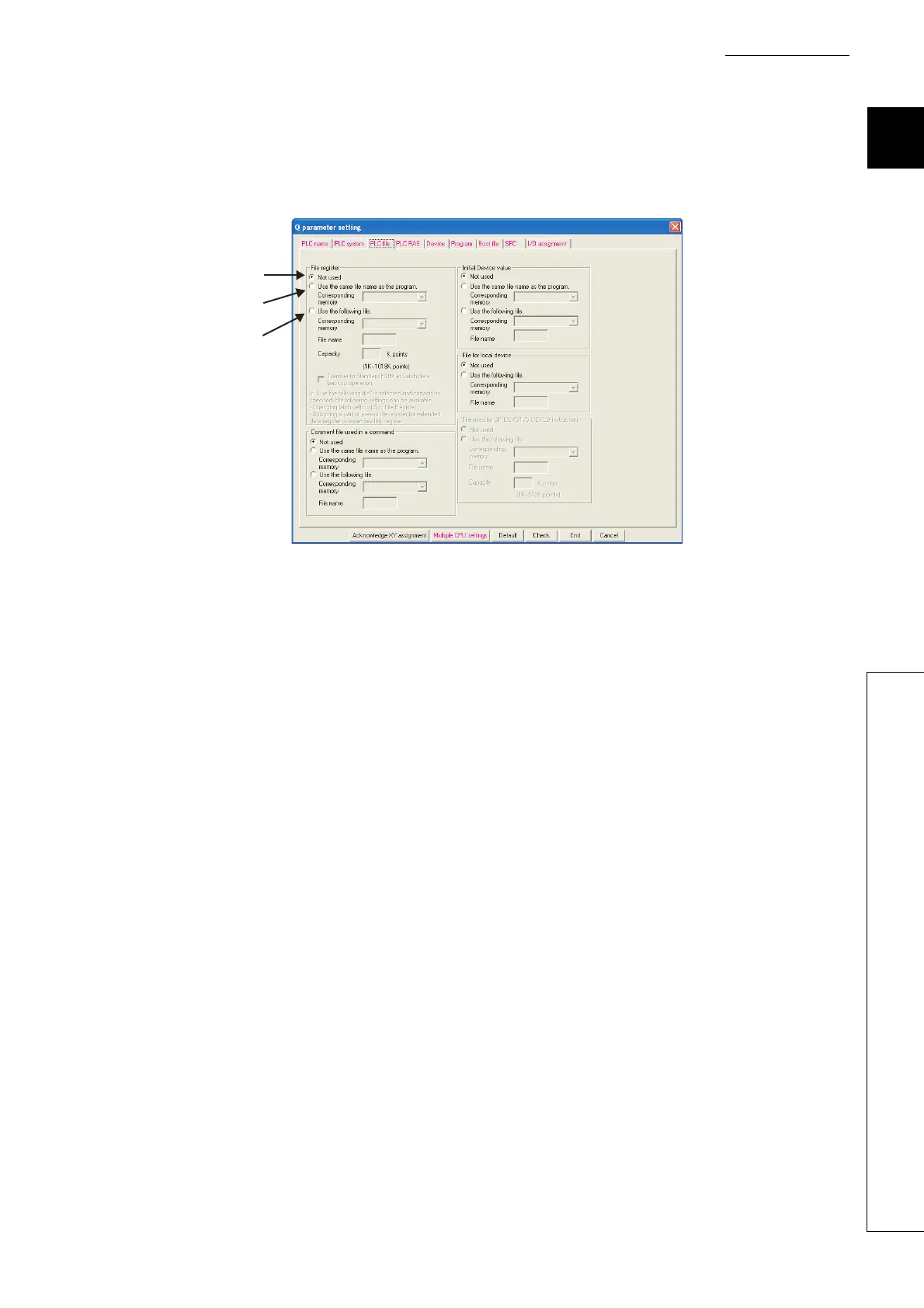

Figure 9.75 File register setting
(a)
(b)
(c)
