D-40
FX Series PLC User's Manual - Data Communication Edition
Computer Link
5 Communication Setting in FX Programmable Controller
5.3 Communication Settings Using Parameter Method (FXGP/WIN)
5.3 Communication Settings Using Parameter Method (FXGP/WIN)
Communication settings may be changed by the parameter method with GX Developer and FXGP/WIN for
Windows. This section describes how to change parameters with FXGP/WIN.
Ch2 cannot be set using FXGP/WIN.
5.3.1 Operating procedure
This subsection explains the serial communication setting method. Suppose that FXGP/WIN is already
started up.
1 Displaying the serial setting (parameter)
Select [Option] - [Serial setting (parameter)] from the toolbar.
The following dialog box appears according to absence/presence of parameter setting.

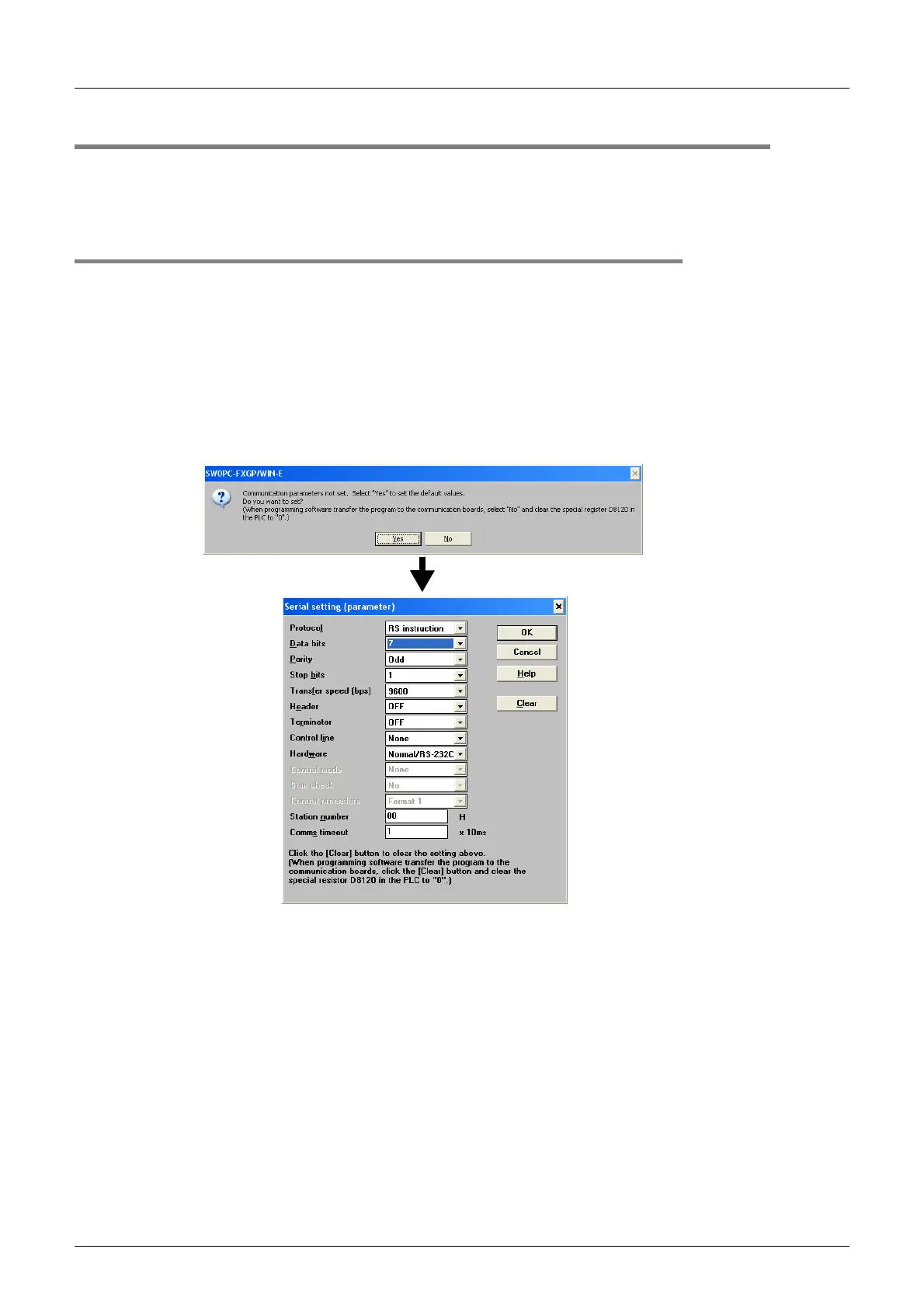

1. When there are no parameter settings
There are no communication settings. Click the [Yes] button.
