REASSEMBLY OF BASIC ENGINE
7-19

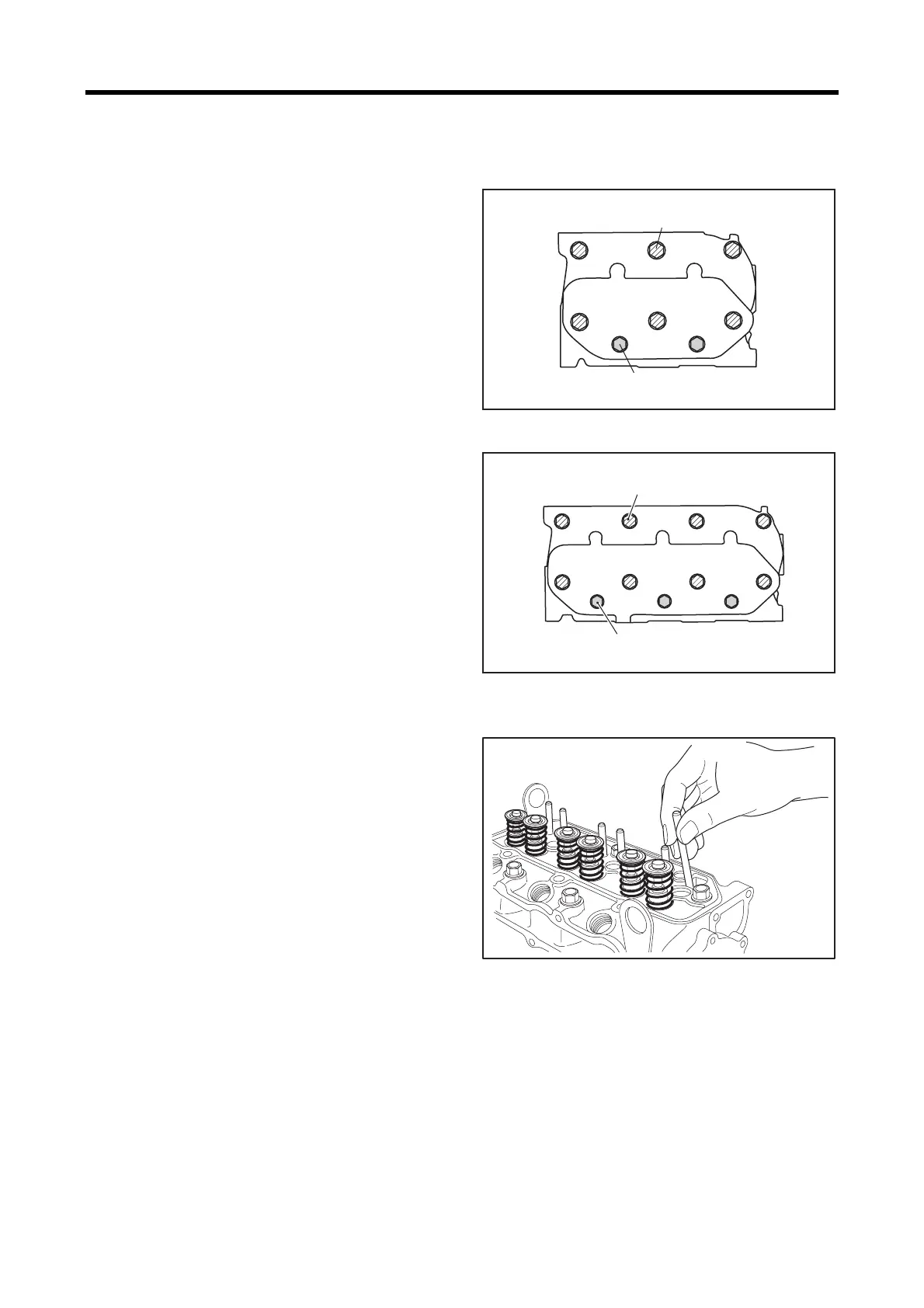

4.7 Tightening cylinder head bolts
In the numerical order as shown in the illustration, tighten
cylinder head bolts progressively to the specified torque.
Tightening order of cylinder head bolts (L2)
Tightening order of cylinder head bolts (L3)
4.8 Inserting push rod
(1)
Insert each push rod into its hole in the cylinder head.
(2) Make sure that the ball end of each push rod is placed
correctly on the tappet cup.
Inserting push rods








Cylinder head bolt (main)
73.5 to 83.4N㨯m
{7.5 to 8.5kgf㨯m}[54.2 to 61.5lbf㨯ft]
Cylinder head bolt (sub)
19.6 to 29.4N㨯m
{2.0 to 3.0kgf㨯m}[14.7 to 21.7lbf㨯ft]
Cylinder head bolt (main)
73.5 to 83.4 N㨯m
{7.5 to 8.5 kgf㨯m} [54.2 to 61.5 lbf㨯ft]
Cylinder head bolt (sub)
19.6 to 29.4 N㨯m
{2.0 to 3.0 kgf㨯m} [14.7 to 21.7 lbf㨯ft]
1
5
7
2
8
10
11
6
9
4
3
