ELECTRICAL SYSTEM
12-39

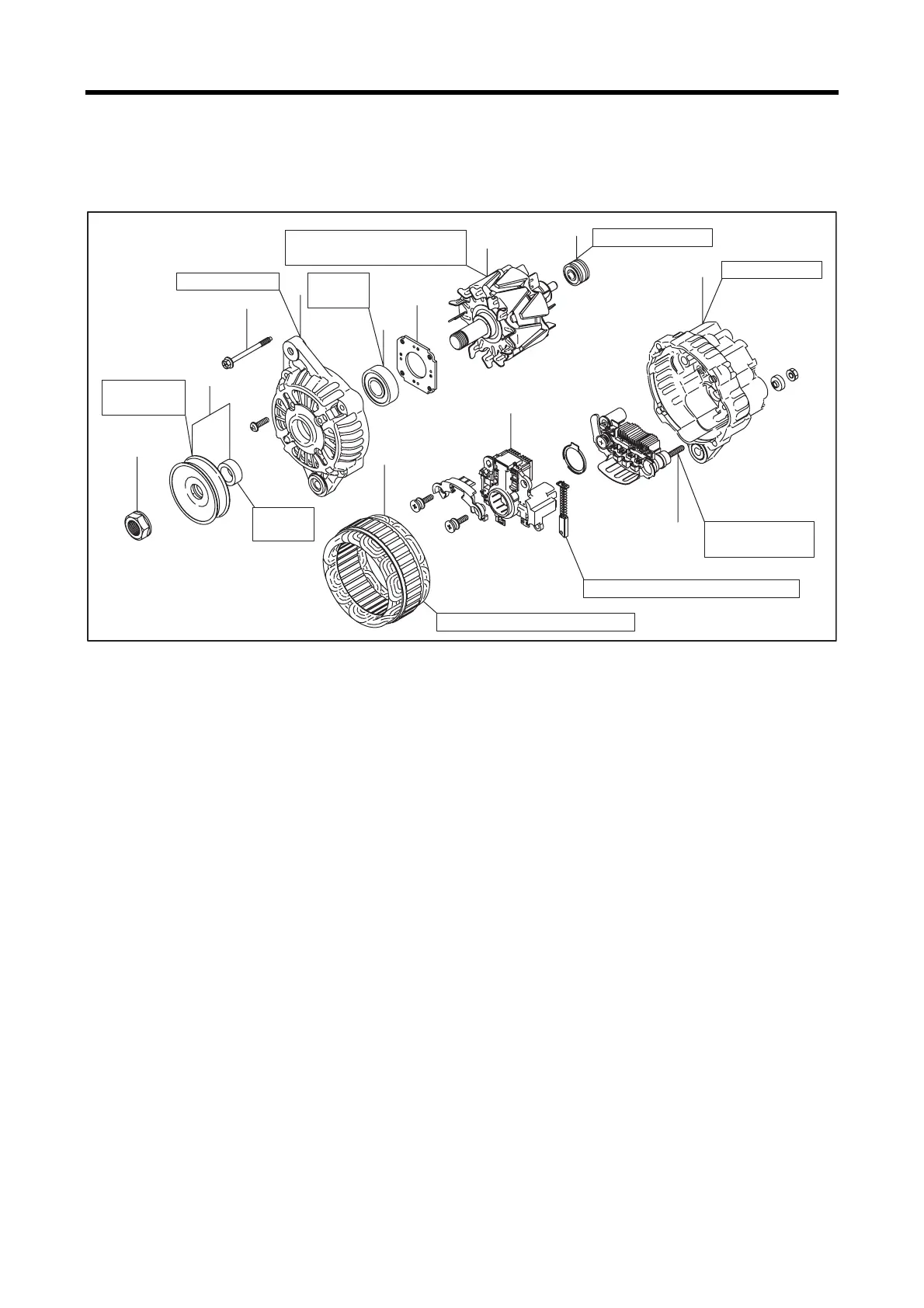

2.10 Disassembling and inspecting alternator
Disassembling and inspecting alternator
Disassembling sequence
1 Through bolt 5 Rear bearing 9 Stator
2 Nut 6 Bearing retainer 10 Regulator assembly
3 Pulley, spacer 7 Front bearing 11 Rectifier assembly
4 Rotor 8 Front bracket 12 Rear bracket
Crack, damage
Rotation
condition
Sliding state and wear of brushes
Deformation
and damage
Crack, damage
Rotation
condition
Rotation condition
Short circuit and
open circuit
Broken wire and ground of coil
3
2
1
8
7
6
4
11
12
9
10
5
Dirt, damage and seizure of
slip ring and coil resistance
