ELECTRICAL SYSTEM
12-46

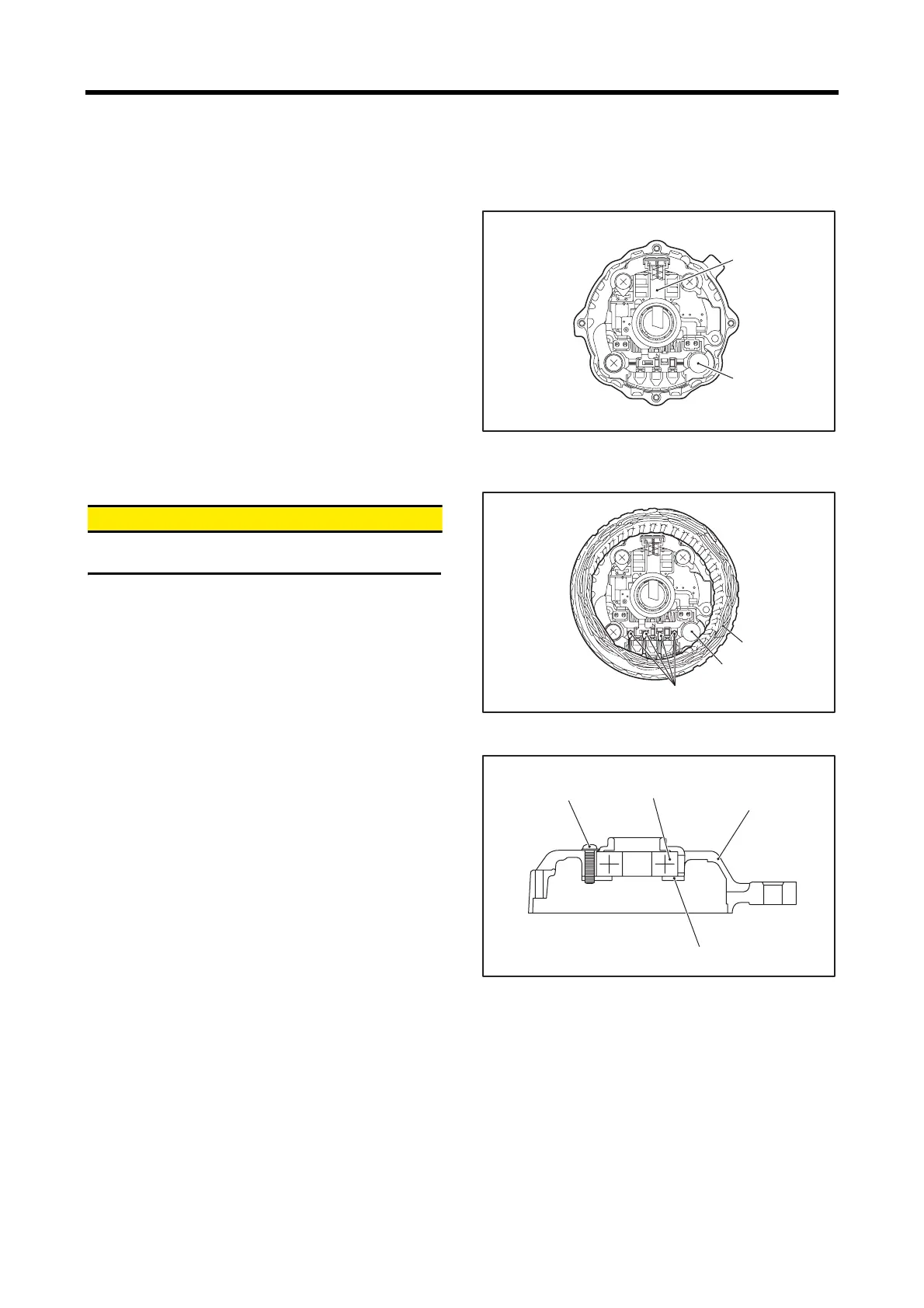

2.12.1 Installing rectifier assembly and regulator
assembly
Install the rectifier assembly and regulator assembly on the
rear bracket.
Installing rectifier assembly and regulator
assembly
2.12.2 Installing stator
&$87,21
Soldering must be finished as quickly as possible.
Extended heating will damage the diodes.
Install the stator and solder the leads of the stator to the
rectifier.
Installing stator
2.12.3 Installing front bearing
Drive the front bearing into the front bracket and secure the
bearing retainer with a screw.
Installing front bearing
Regulator
assembly
Regulator
assembly
Soldering
Rectifier
Stator core
Screw
Front bearing
Front
bracket
Bearing retainer
