ELECTRICAL SYSTEM
12-10
2.1.3 No load test
&$87,21
Use as thick a wire as possible and firmly tighten each
terminal.
When detecting the rotation at the tip of the pinion, be
careful, as the pinion pops out during operation.

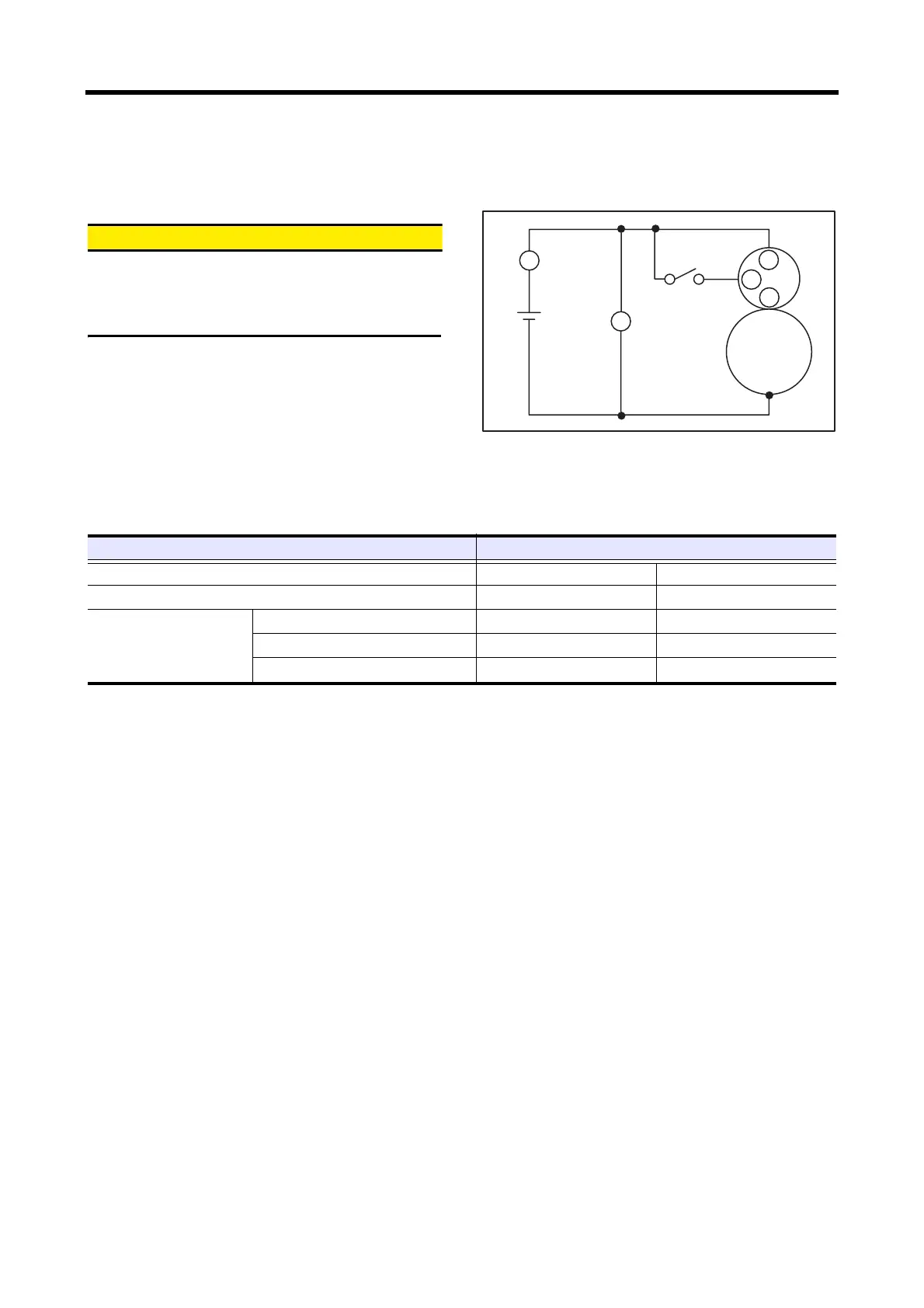

(1) Connect the starter to the circuit as shown in the
illustration.
(2) In normal condition, the pinion pops out when the
switch is turned ON, and the starter rotates at or more
the specified rotation speed.
If the terminal voltage, current or rotation speed does
not meet the standard, disassemble, inspect and repair
the starter.
Test at no load
A
V
B
S
M
Ammeter
Battery
12V
Voltmeter
Switch
Starter
Item Standard
Starter model name M000T60481 M001T68381
Nominal output V-kW 12-1.2 12-1.7
No-load characteristics
Terminal voltage V 11 11
Current A 90 or less 110 or less
Rotation speed min
-1
2500 or more 2400 or more
