GENERAL
1-4
2.

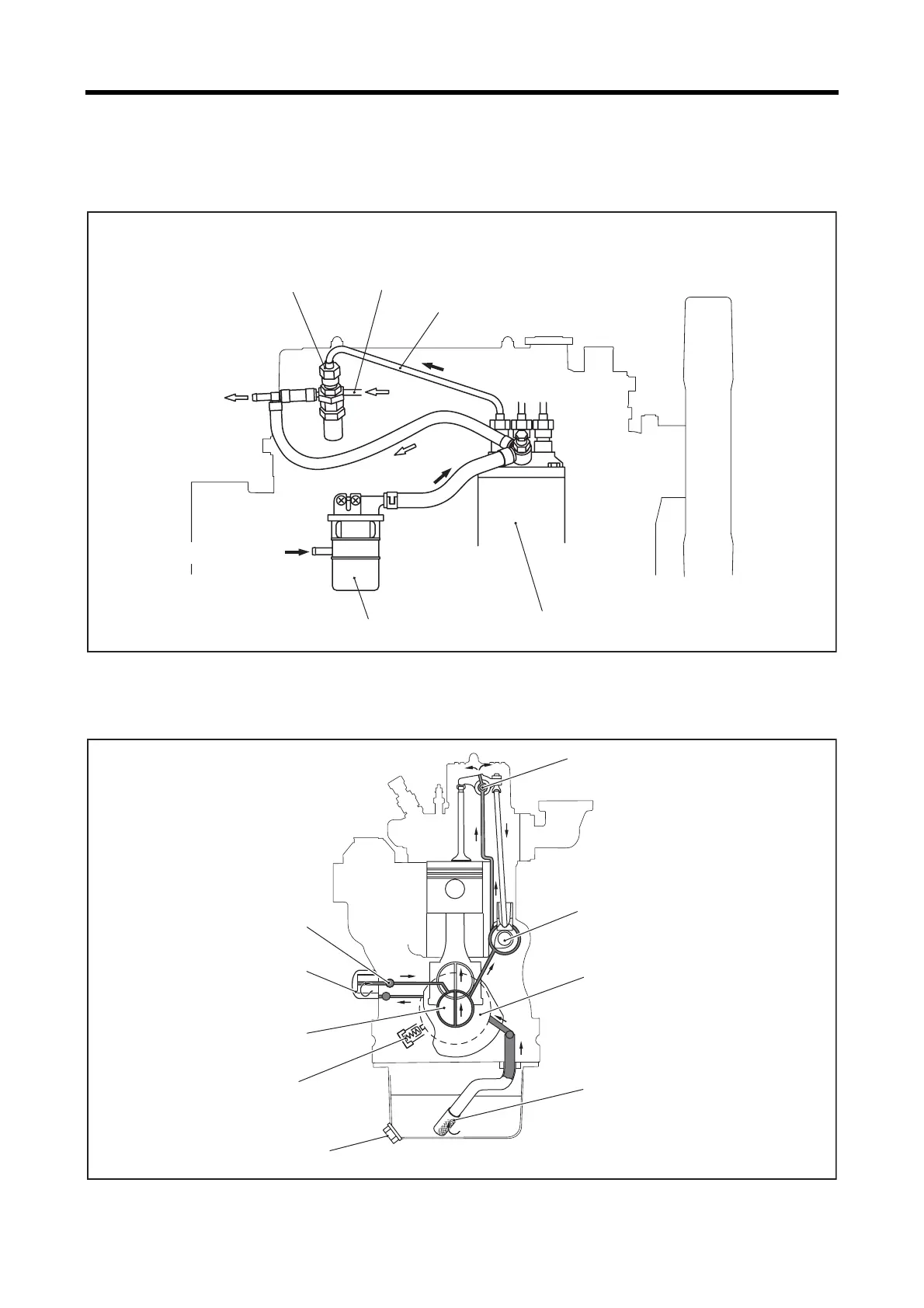

System flow diagrams
2.1
Fuel system -
flow diagram
Fuel system - flow diagram
2.2
Lubrication system - flow diagram
Lubrication system - flow diagram
Fuel injection nozzle
Fuel leak-off pipe
Fuel injection pipe
Fuel injection pump
T
o fuel tank
Fuel filter
From fuel pump
Camshaft
Rocker shaft
Oil pump
Oil screen
Oil main gallery
Oil drain plug
Oil filter
Crankshaft
Relief valve
19
21
