DISASSEMBLY OF BASIC ENGINE
5-16
4.1 Removing oil pan
&$87,21
Do not insert a chisel or screwdriver between the oil
pan and crankcase to remove the oil pan, as it could
deform the oil pan flange.
(1) Turn the engine around.
(2) Remove bolts from the oil pan.
(3) To remove oil pan, tap bottom corners of the oil pan
with a plastic hammer.

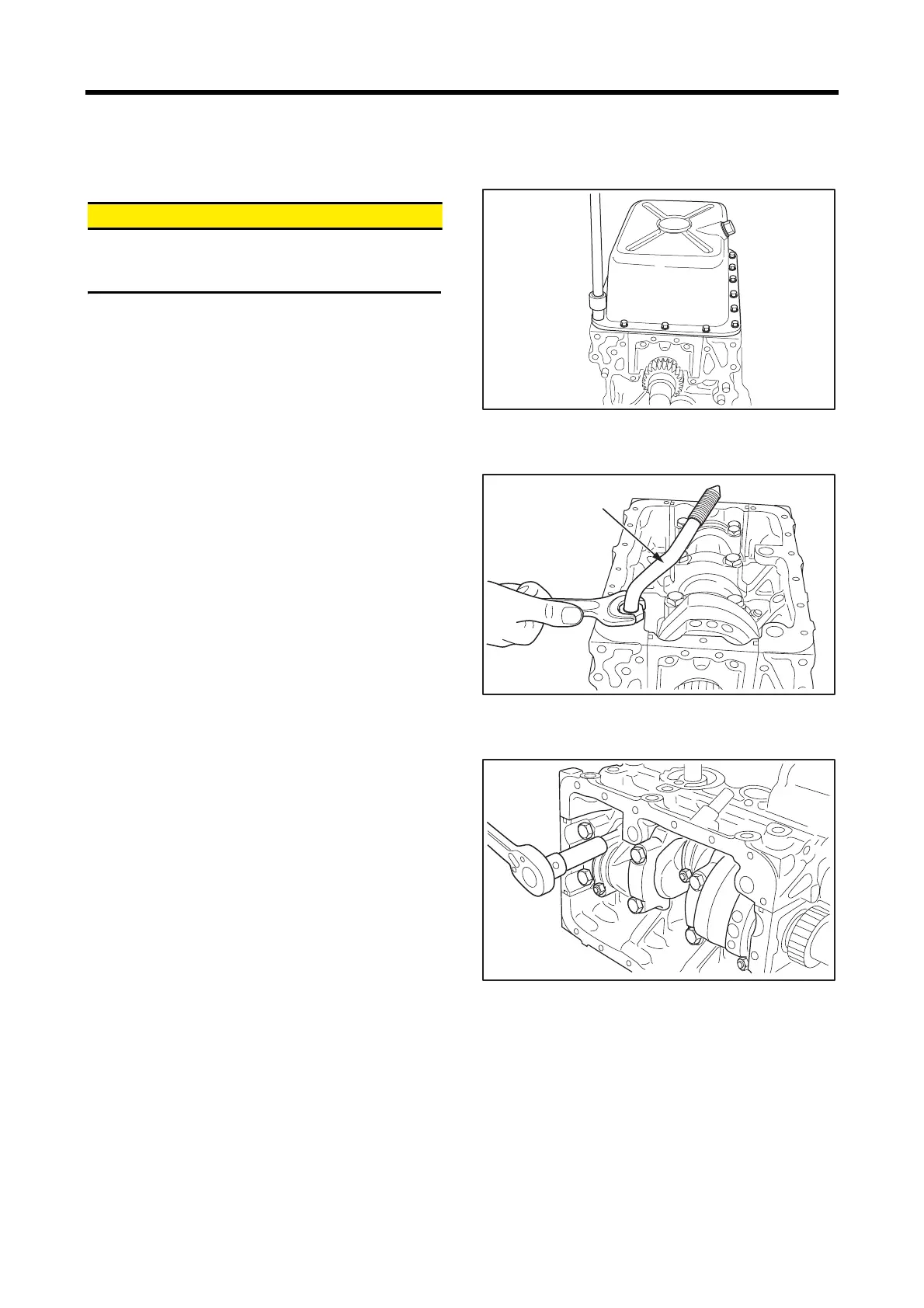

Removing oil pan
4.2 Removing oil screen
Loosen the nut, and remove the oil screen and gasket.
Removing oil screen
4.3 Removing connecting rod cap
(1)
Lay the engine by its side.
(2) Mark the cylinder number on the connecting rod and
connecting rod cap so that their combination is not
changed when reassembling.
(3) Remove the connecting rod caps.
Note: Mark the cylinder No. and upper/lower on connecting
rod bearings to ensure correct reassembling.
Removing connecting rod cap
