Mitsubishi L Series Service Manual

DISASSEMBLY OF BASIC ENGINE
5-17

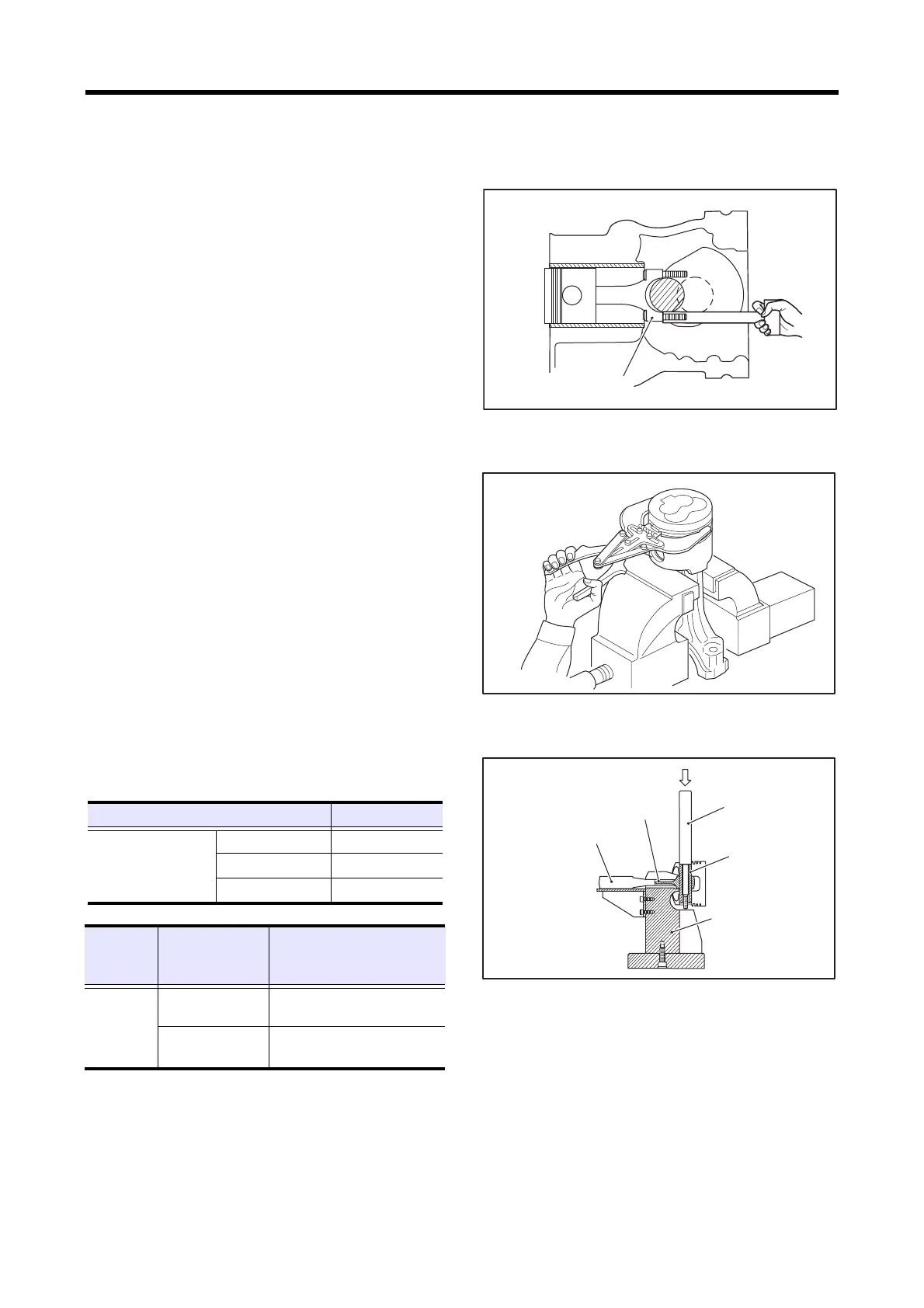

4.4 Pulling out piston
(1)
Turn the crankshaft to bring the piston to the top dead
center.
(2) Using a piece of wood such a hammer handle, push the
mating surface of the connecting rod cap, and pull the
piston and connecting rod upward from the cylinder.
Pulling out piston
4.5 Removing piston ring
Remove the piston rings using piston ring pliers.
Removing piston ring
4.6 Removing piston pin
Remove the piston pin using a piston pin setting tool.
Removing piston pin
Connecting rod
Special tool name Part No.
Piston pin
setting tool
For L2A, L3A 30L91-00030
For L2C, L3C 30L91-00020
For L2E, L3E 30L91-10010
Part
descrip-
tion
ldentification
mark
Applicable to
Push rod
D18
For18mm [0.70868 in.]
piston pin
D21
Forφ21mm [0.82677 in.]
piston pin
Connecting rod
Identification mark
Pushrod
Piston pin
Piston pin
setting tool
