FUEL SYSTEM
8-15

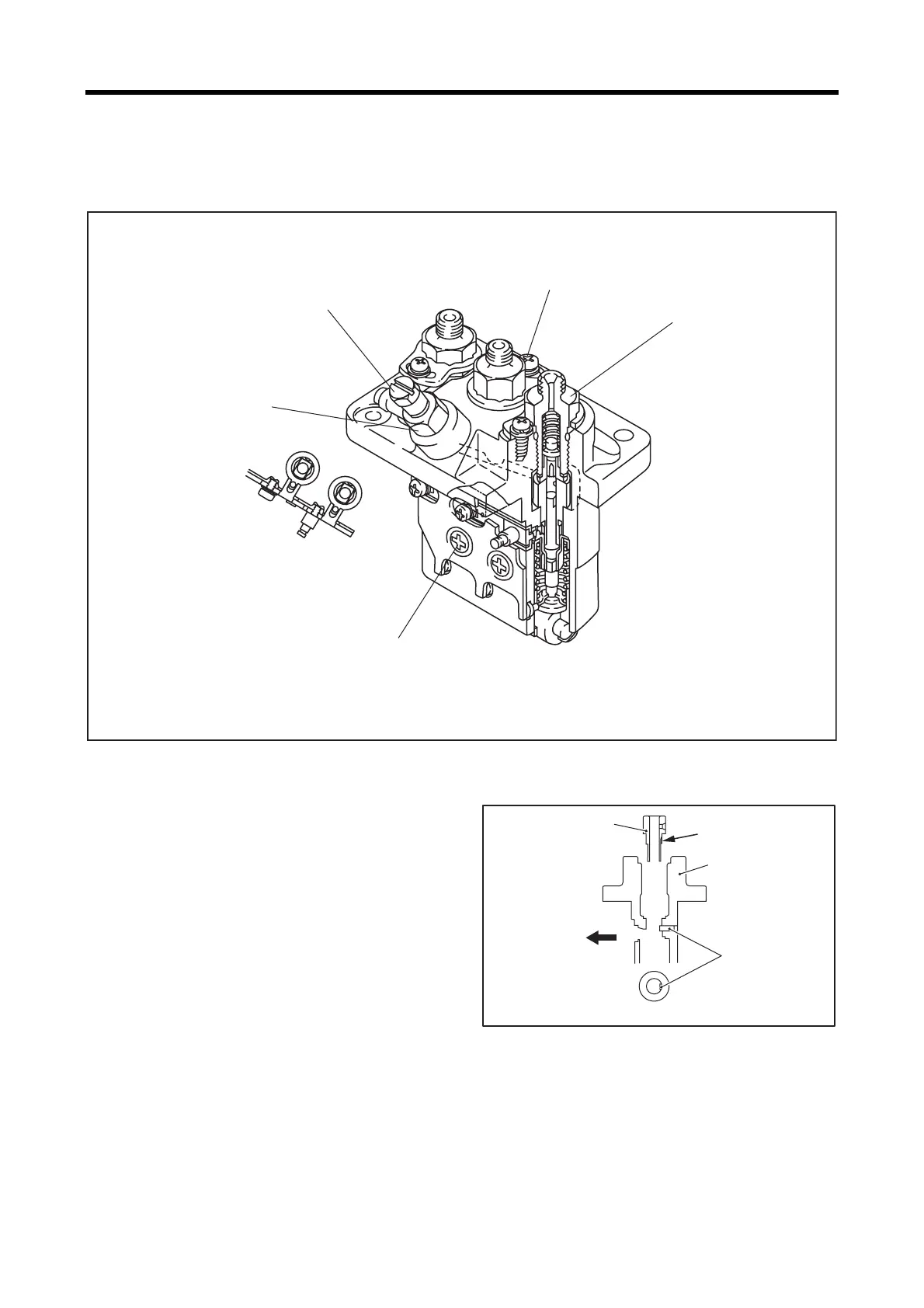

2.5 Reassembling fuel injection pump
Reassembling fuel injection pump
2.5.1 Installing plunger barrel
Align the plunger barrel groove with the knock pin of the
pump housing, and insert the pluger barrel into the pump
housing.
Note: If the knock pin is not aligned with the plunger barrel
groove, the plunger barrel will not be installed
correctly. Make sure that O-ring is not protruded from
the pump housing when the delivery valve holder is
snugly tightened.
Inserting plunger barrel
4.9 to 6.9 N㨯m
{0.5 to 0.7 kgf㨯m}
[3.6 to 5.1 lbf㨯ft]
9.8 to 14.7 N㨯m
{1.0 to 1.5 kgf㨯m}
[7.2 to 10.8 lbf㨯ft]
3.2 to 4.0 N㨯m
{0.3 to 0.4 kgf㨯m}
[2.2 to 2.9 lbf㨯ft]
3.2 to 4.0 N㨯m
{0.3 to 0.4 kgf㨯m}
[2.2 to 2.9 lbf㨯ft]
34.3 to 38.2 N㨯m
{3.5 to 3.9 kgf㨯m}
[25.3 to 28.2 lbf㨯ft]
Plunger barrel
Groove
Pump housing
Knock pin
Control rack
side
Viewed from above
