COOLING SYSTEM
10-2
1. Removing cooling system
1.1 Removing cooling fan, fan pulley, V-belt, thermostat, thermoswitch
and water pump
Removing cooling fan, fan pulley, V-belt, thermostat, thermoswitch
and water pump

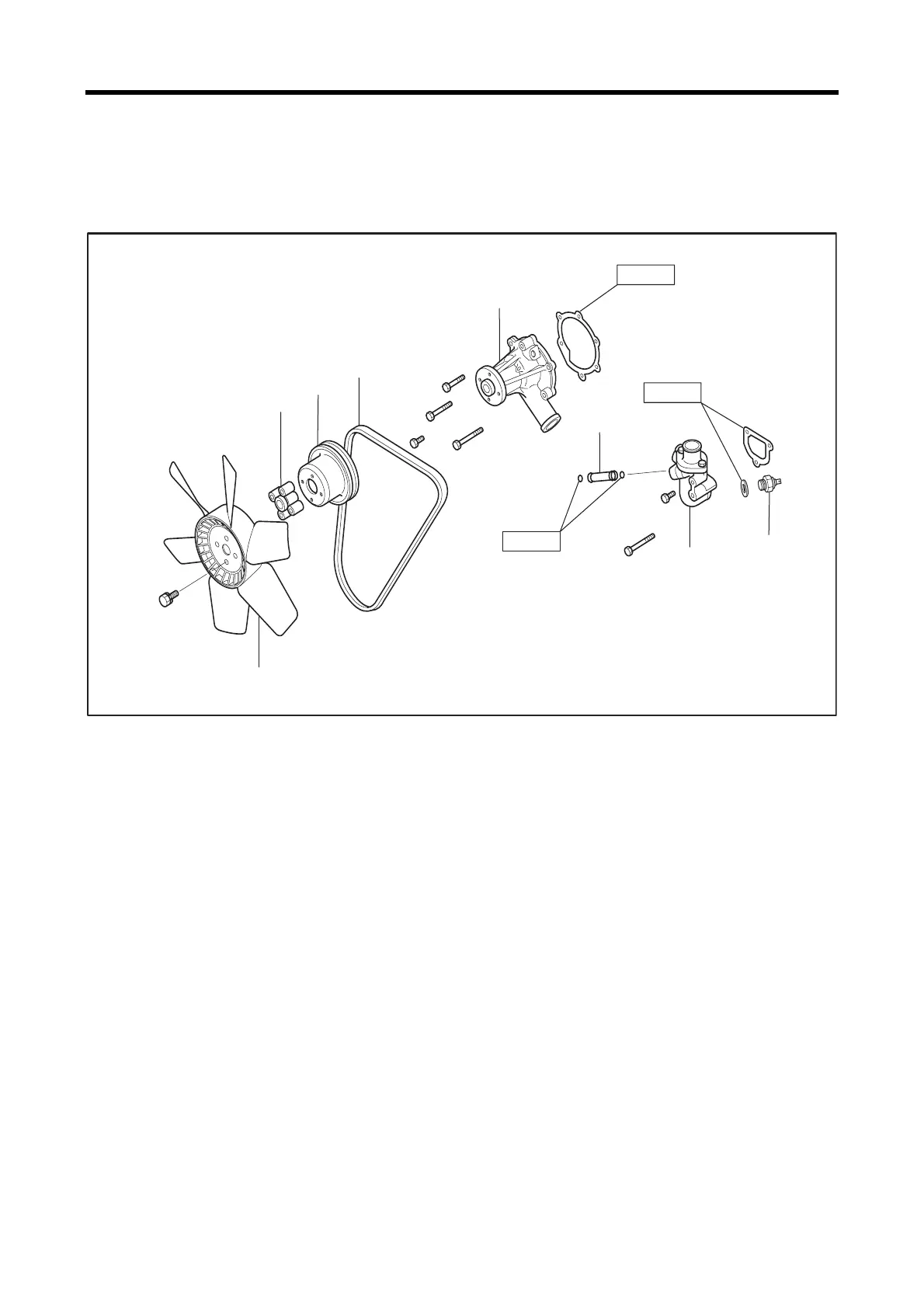

Removing sequence
1 Fan 4 V-belt 7 Pipe
2 Fan spacer 5 Thermostat case 8 Water pump
3 Fan pulley 6 Thermoswitch
2
1
3
4
8
Replace
7
5
6
Replace
Replace
