Mitsubishi L Series Service Manual

FUEL SYSTEM
8-17

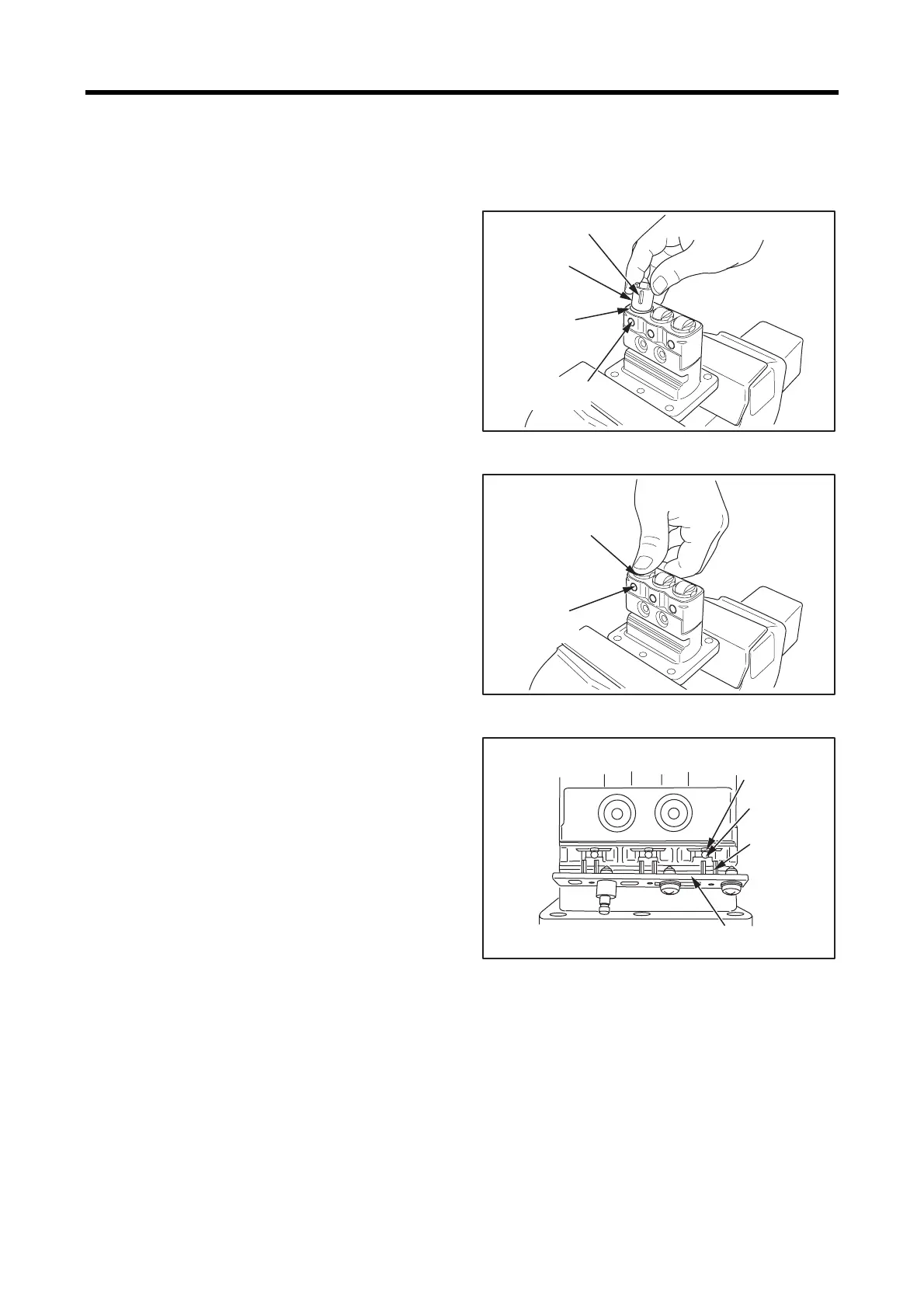

2.5.5 Installing tappet
(1) Install the tappet shim plate.
(2) Install the tappet so that its groove is positioned to face
the tappet guide pin hole.
(3) Push down the tappet, and install the tappet guide pin.
Installing tappet
Installing tappet guide pin
2.5.6 Installing control rack
(1) Align the control sleeve position so that the protrusion
of the control sleeve fits into the fork of the control
rack.
(2) Install the control rack.
(3) Install the stop wire bracket.
(4) Tighten the countersunk head screws to the specified
torque.
Note: When reusing the countersunk head screws, apply
adhesive to the threaded portion.
Installing control rack
Groove
Tappet
Tappet shim
plate
Tappet guide
pin hole
Tappet
Tappet
guide pin
Control
sleeve
Protrusion
Fork
Control rack
