Mitsubishi L Series

GENERAL
1-5

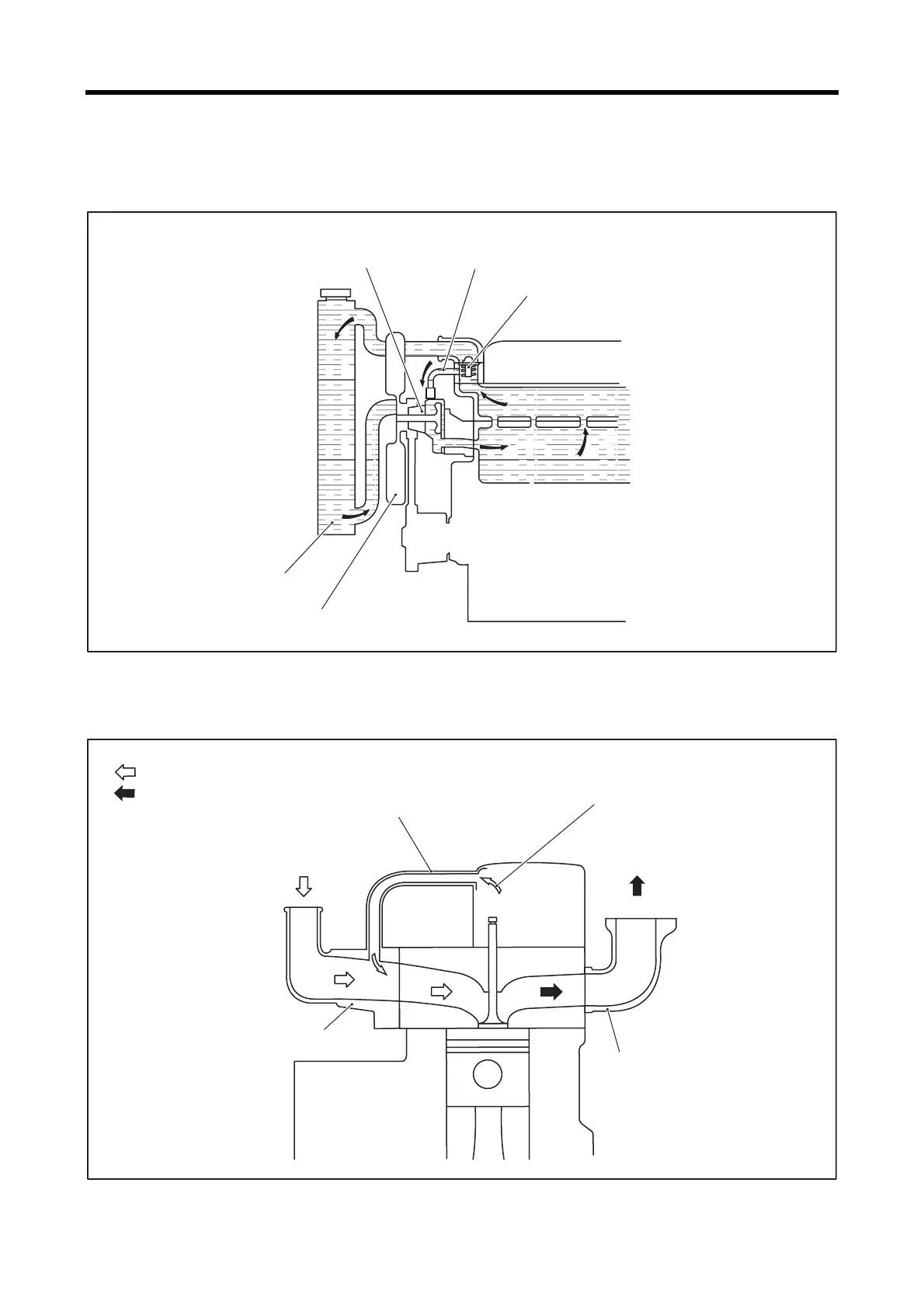

2.3 Cooling system - flow diagram
Cooling system - flow diagram
2.4 Inlet and exhaust system - flow diagram
Inlet and exhaust system - flow diagram
Water bypass pipe
Thermostat
Water pump
Radiator
Cooling fan
Inlet cover
Exhaust manifold
From air cleaner
Air breather pipe
(blow-by gas reduction)
Blow-by gas
To muffler
Exhaust
Inlet
