FUEL SYSTEM
8-13

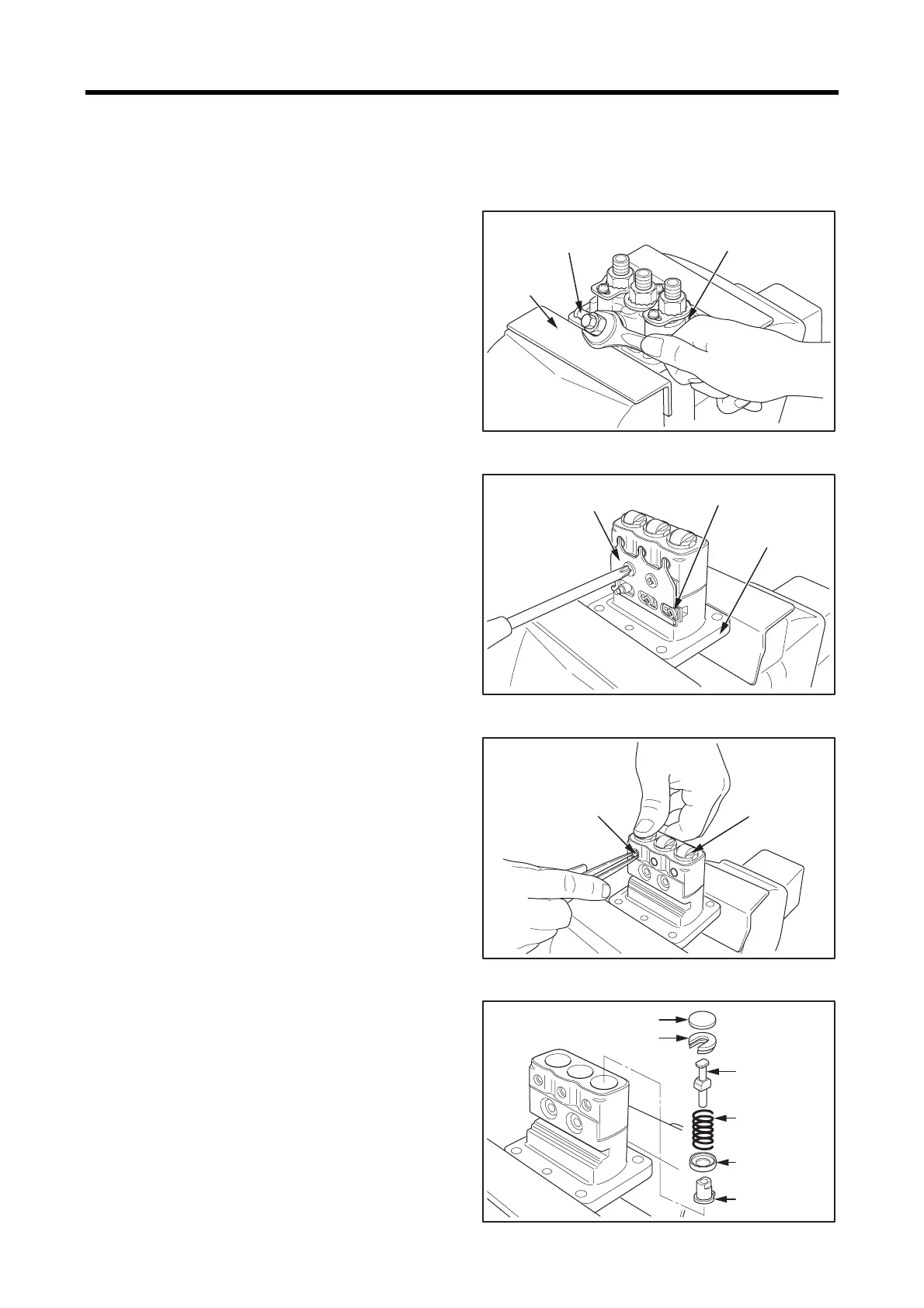

2.4.1 Removing swivel nipple
(1) Grab the plunger of the pump housing with a vise.
(2) Remove the swivel nipple from the pump housing.
Removing swivel nipple
2.4.2 Removing tappets
(1) Turn the pump housing upside down and grab the
housing with a vise.
(2) Remove the stop wire bracket and remove the control
rack.
(3) Push in the tappet and, pull out the tappet guide pin
with tweezers.
(4) Remove the tappet.
Removing stop wire bracket
Removing tappet guide pin
2.4.3 Removing plunger
Using tweezers, remove the tappet shim plate, spring lower
seat, plunger, plunger spring, spring upper seat and control
sleeve from the pump housing.
Removing plunger
Vise
Swivel nipple
Pump housing
Stop wire bracket
Control rack
Pump
housing
Tappet guide pin
Tappet
Tappet shim plate
Spring lower seat
Plunger
Plunger spring
Spring upper
seat
Control sleeve
