2. Wiring and Connection
2 - 25

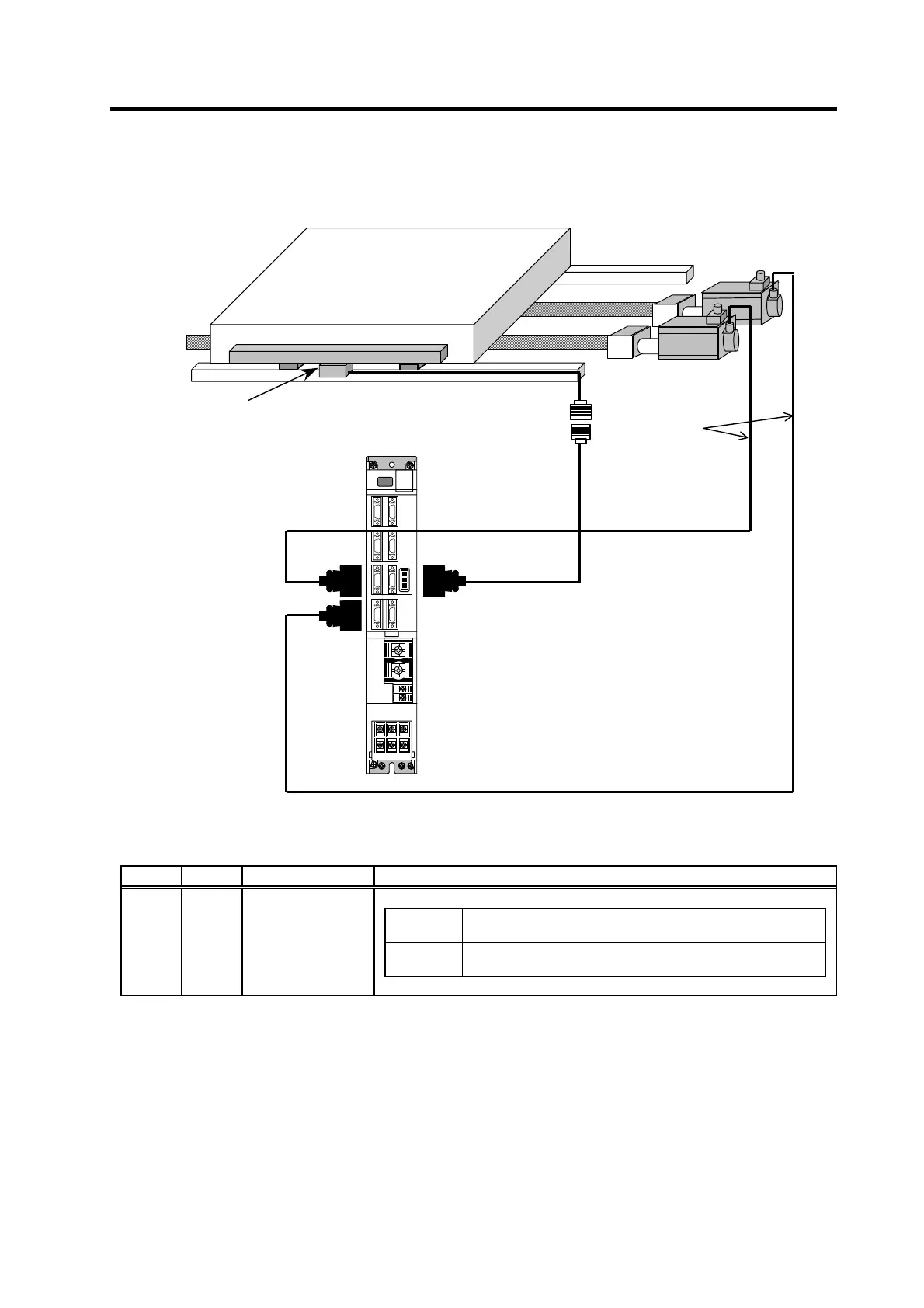

(4-1) Connection for full-closed synchronous control
(when using MDS-C1-V2 drive unit and serial output linear scale)
Linear scale
MDS-C1-V2
CN2M
CN2L
CN3L
Master axis
Slave axis
Detector cable
CNV12
Parameter settings
No. Abbrev. Parameter name Description
Set the detector type. (Refer to Chapter 3 Setup for details)
Master axis Speed command synchronous control : A0xx or A1xx or A2xx
Current command synchronous control : A0xx or A1xx or A2xx
SV025 MTYP Motor/detector type
Slave axis Speed command synchronous control : D0xx or D1xx or D2xx
Current command synchronous control : DExx
