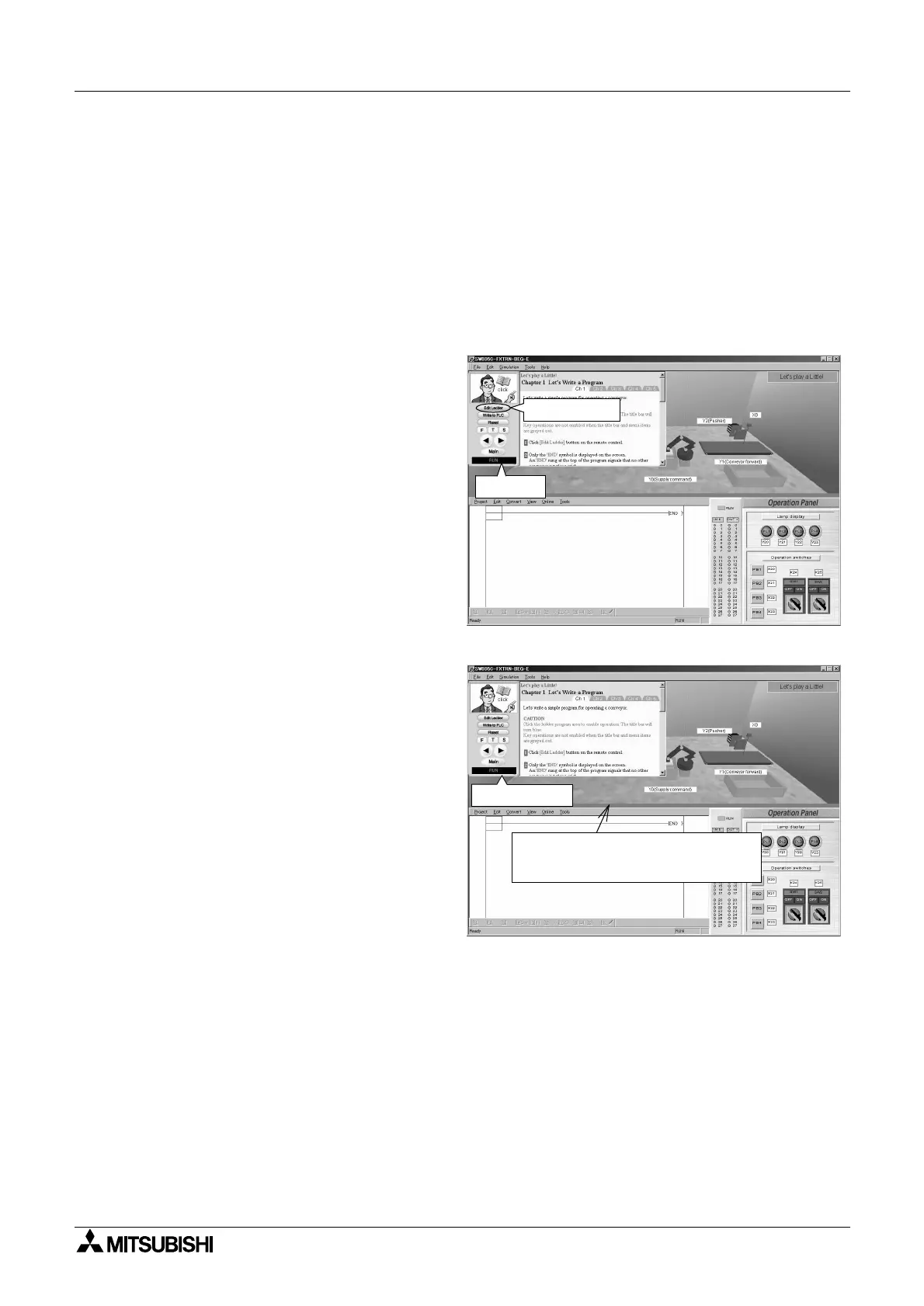

2.6 Writing a Program
When reading the first two categories, ’A: Let’s Learn the FX Series PLC!’ and ’B: Let’s Study
the Basics’, the procedures to write the program are indicated in the guidance.
In higher level lessons, example programs are provided but not the individual keystrokes.
2.6.1 Preparation for Ladder Editing
The following operations are required in order to start ladder editing.
The PLC is in RUN mode immediately after the training screen is displayed. Ladder editing
cannot be performed in RUN mode.
1) Click [Edit Ladder] on the remote
control.
The status display is changed from
"RUN" to "PROGRAM".
2) Click the Ladder Program Area or
click [Edit Ladder] on the remote
control to enable operation. The title
bar will turn blue.
Key operations are not enabled when
the title bar and menu bar are grayed
out.
RUN
PROGRAM
Operation enabled while the
title bar is displayed in blue
PROGRAM
