4. HOW TO USE THE POINT TABLE
4 - 70
4.6 Point table setting method
The following shows the setting method of point tables using MR Configurator2.
4.6.1 Setting procedure

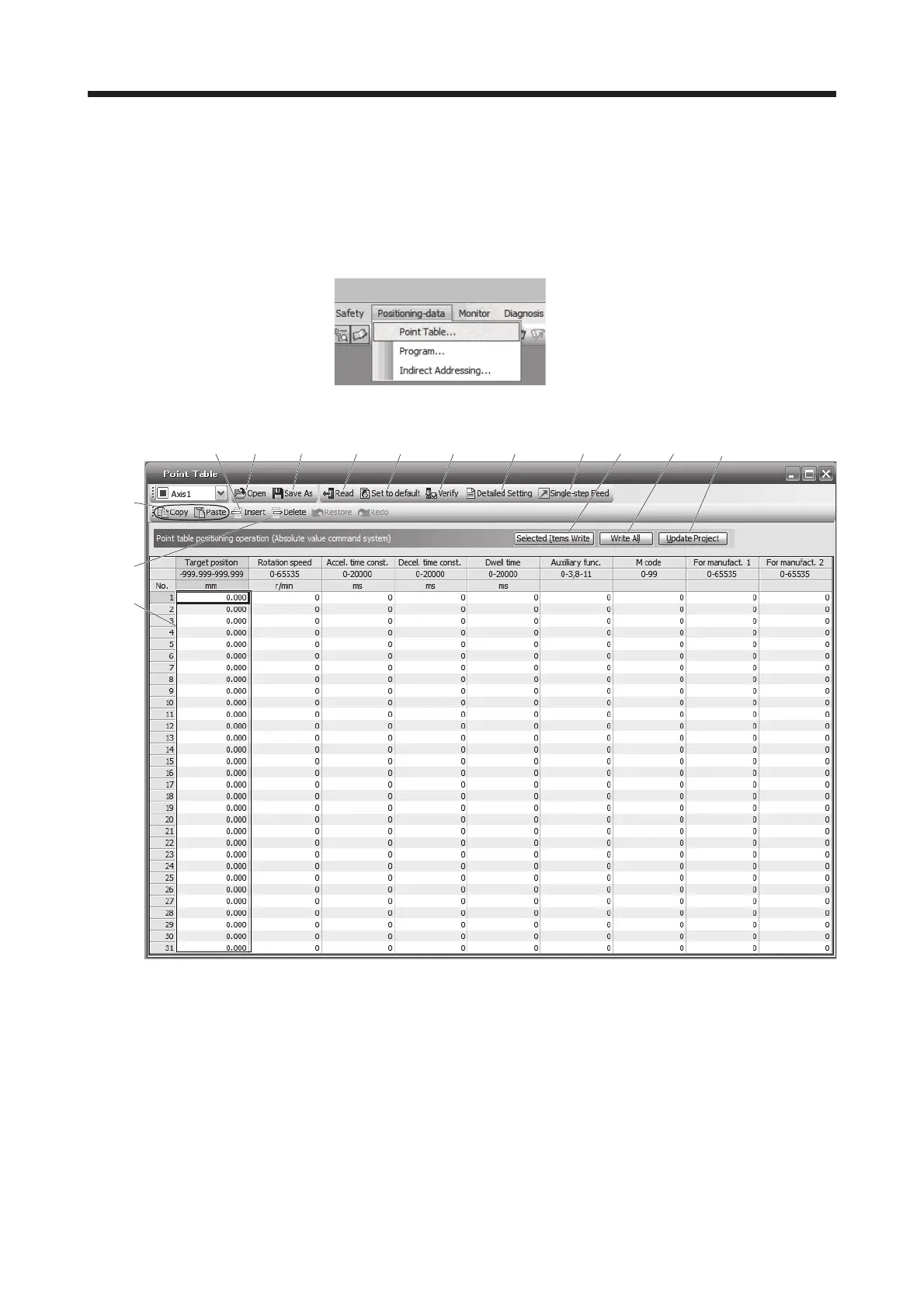

Click "Positioning-data" in the menu bar, and click "Point Table" in the menu.
The following window will be displayed.
(a)(g)(f)(d)(c)(m)(l)(i)
(h)
(j)
(k)
(e) (b) (n)
(1) Writing point table data (a)
Select changed point table data, and click "Selected Items Write" to write the changed point table data to
the servo amplifier.
(2) Writing all point table data (b)
Click "Write All" to write all the point table data to the servo amplifier.
(3) Reading all point table data (c)
Click "Read" to read all the point table data from the servo amplifier and display them.
