7.2 Battery (Q6BAT, Q7BAT, Q8BAT)
7.2.2 Installation of Battery
7
MEMORY CARD AND BATTERY

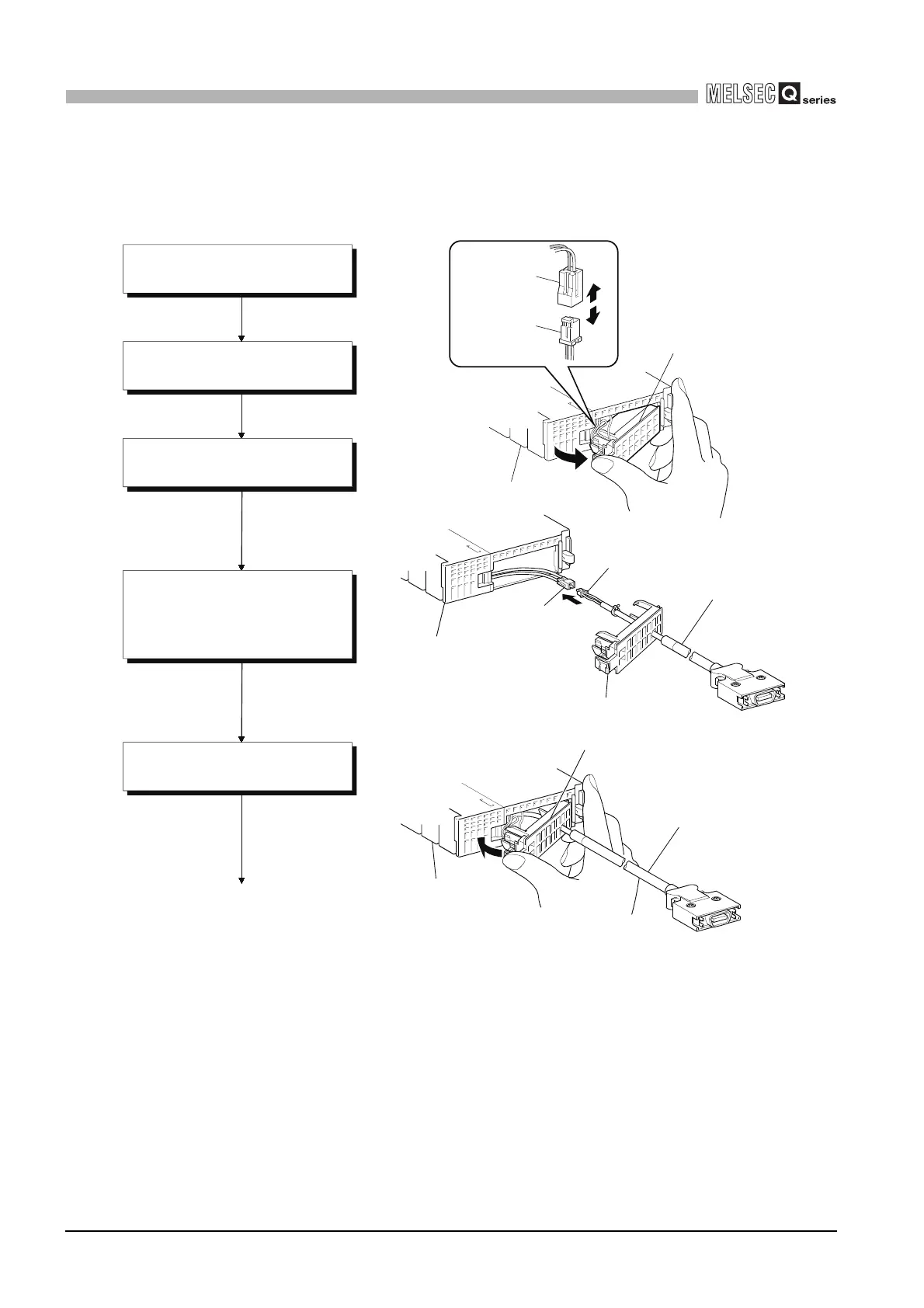

(3) Q8BAT-SET battery installation procedure
When changing the battery for the CPU module from the Q6BAT to the Q8BAT, set
the battery and connect its connector in the following procedure.
Open the cover of the CPU module's
bottom.
(To next page)
Connector of
CPU module
Q6BAT
CPU module
Connector
of cable
Q8BAT connection cable
Q8BAT connection cover
Disconnect the connector connecting
the Q6BAT to the CPU module.
Insert the connector of Q8BAT
connection cable (included in the
Q8BAT-SET) into the connector of
CPU module while confirming the
orientation of each connector.
Remove the Q6BAT and cover from
the CPU module.
Attach the Q8BAT connection cover
to the CPU module.
Connector of
battery
Connector of
CPU module
CPU module
Q8BAT connection cover
Q8BAT connection cable
CPU module
To Next Page
