Mitsubishi Q01CPU User Manual

10 - 16
10.3 Module Installation
10.3.1 Precaution on installation
10
LOADING AND INSTALLATION
<For Q35B, Q65B, Q00JCPU, Q33B, Q52B, Q55B, Q63B, Q32SB, Q33SB or
Q35SB type>
Screw the DIN rail in two places using the mounting screws and square washers
included with the adaptors in ‘Position A’ (bottom of base unit).
* 1
* 2: Screw the DIN rail to a control panel using the mounting screws and square washers included
with the adaptors in ‘Position A’ (bottom of base unit).
* 3: Screw the DIN rail with mounting screws(obtained by user) in ‘Position B’ (Where the base unit is
not installed). In this method the supplied mounting screws and square washers are not used.
POINT
(1) Use only one washer for each mounting screw. Use only the square washers
supplied with the adaptors.
If two or more washers are used together for one mounting screw, the screw
may interfere with the base unit.
(2) Make sure to align the square washer sides with the DIN rail.
(3) Use the DIN rail that is compatible with M5 size screws.

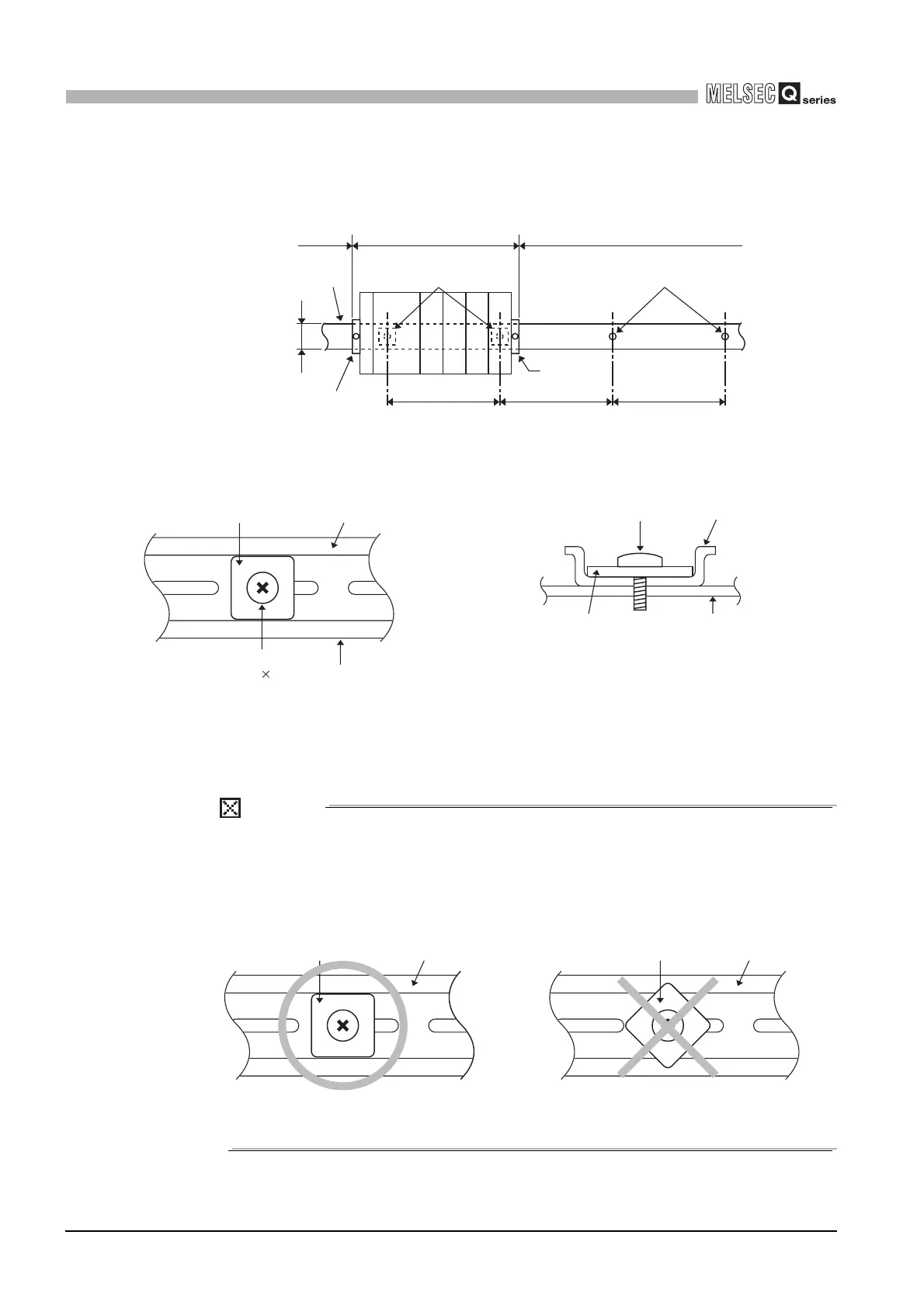

Diagram 10.12 DIN rail mounting screw intervals
Diagram 10.13 Square washer
Diagram 10.14 Precautions when mounting a square washer
DIN rail
35mm
P
P=200mm (7.88 inch) or less
PP
Stopper
Stopper
A *2B *3
B *3
Mounting screws
(included with adaptors)
Square washers necessary *1
Mounting screws (obtained by user)
No square washers
DIN rail
Mounting screws
(M5 10)
Square washer
Side view A
DIN railMounting screws
square washer
Mounting side
(e.g. Control panel)
Side view A
DIN railsquare washer DIN railsquare washer
