Mitsubishi Q01CPU User Manual

10
LOADING AND INSTALLATION
10.3 Module Installation
10.3.1 Precaution on installation
10 - 17
9
EMC AND LOW VOLTAGE DIRECTIVES
10
LOADING AND INSTALLATION
11
MAINTENANCE AND INSPECTION
12
TROUBLESHOOTING APPENDICES INDEX
(e) Stopper mounting
When using the DIN rail in the environment with large vibration, use stoppers
included with the DIN rail mounting adaptor shown in (a).

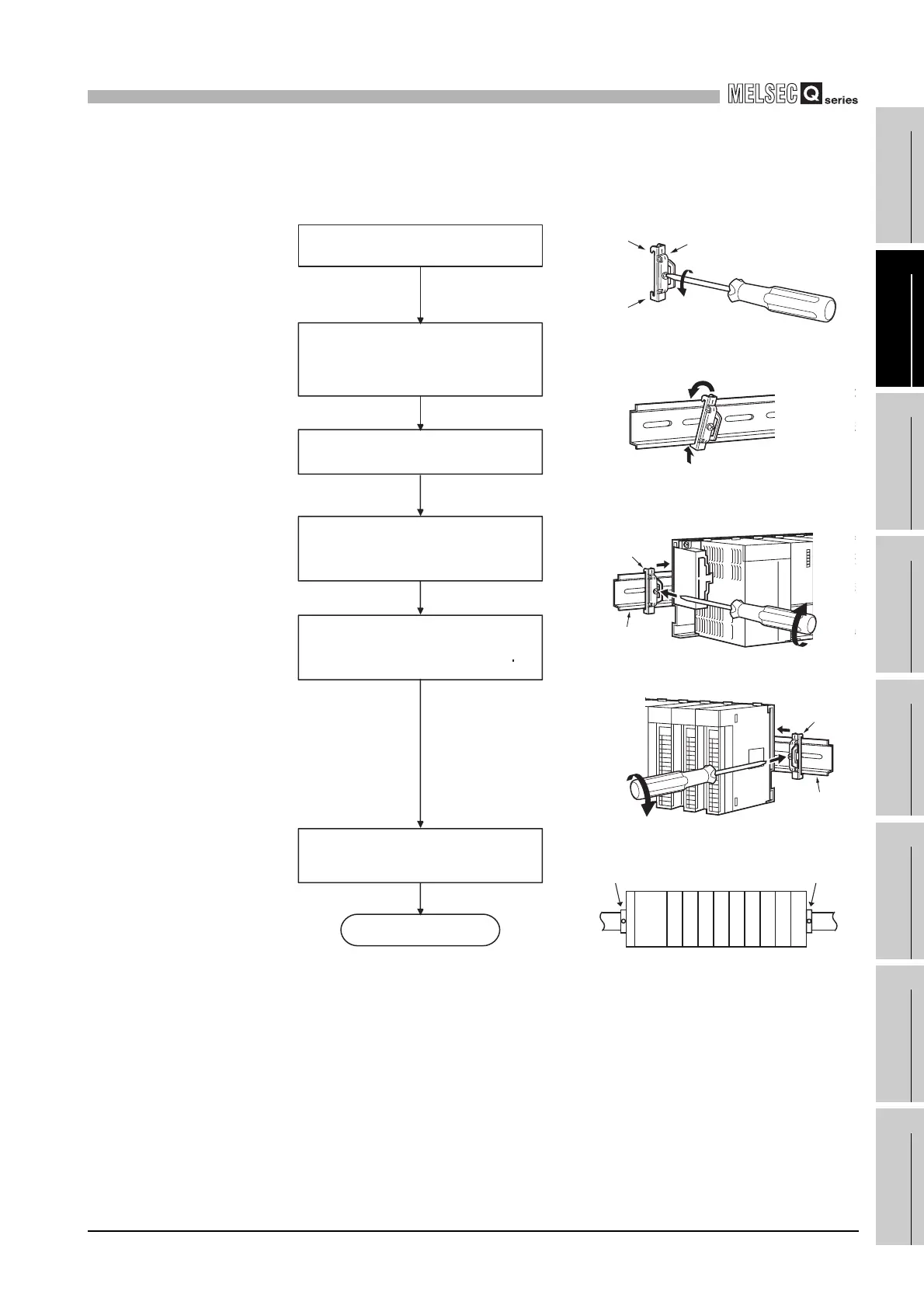

Diagram 10.15 Fixture mounting procedure
4)
5)
Stopper
(Left side)
4)
5)
Stopper
(Right side)
2)
3)
1)
Stopper
Hook
Hook
Stopper Stopper
Hitch hook to top of
DIN rail
Hitch hook to bottom
of DIN rail
DIN rail
DIN rail
Complete
1)
2)
3)
4)
5)
Loosen the screw at the top of the
stopper. (2 stoppers)
Hitch the lower hook of the stopper
to the bottom of the DIN rail. Install
the stopper with the arrowhead side
facing up.
Hitch the upper hook of the stopper
to the top of the DIN rail.
Slide the stopper to the end of the
base unit so that they are fully in
contact.
Tighten the screw of the stopper
with a screwdriver.
(Tightening torque 1.00 to 1.35N m)
Make sure that the left and right
stoppers are fixed securely to the
DIN rail.
