1 - 15
1.1 Features
1
OVERVIEW
(4) Increase in debugging efficiency through high speed communication
with GX Developer
In the Q Series CPU module, a time required for program writing/reading or
monitoring has been reduced through the high speed communication at a speed of
115.2kbps max. by the RS-232, and a communication time efficiency at the time of
debugging has been increased.
In addition, High Performance model QCPUs (except for the Q02CPU), Process
CPUs, Redundant CPUs and Universal model QCPUs support USB, so that
highspeed communications of 12Mbps are available.
(5) AnS/A series I/O modules and special function modules are available
The AnS/A series compatible extension base units (QA1S6 B, QA6 B and
QA6ADP+A5 B/A6 B) allow the High Performance model QCPU to use the AnS/A
series I/O modules and special function modules.
(6) Saved space by downsizing
The installation space for the Q series has been reduced by approx. 60% compared
with the AnS series.

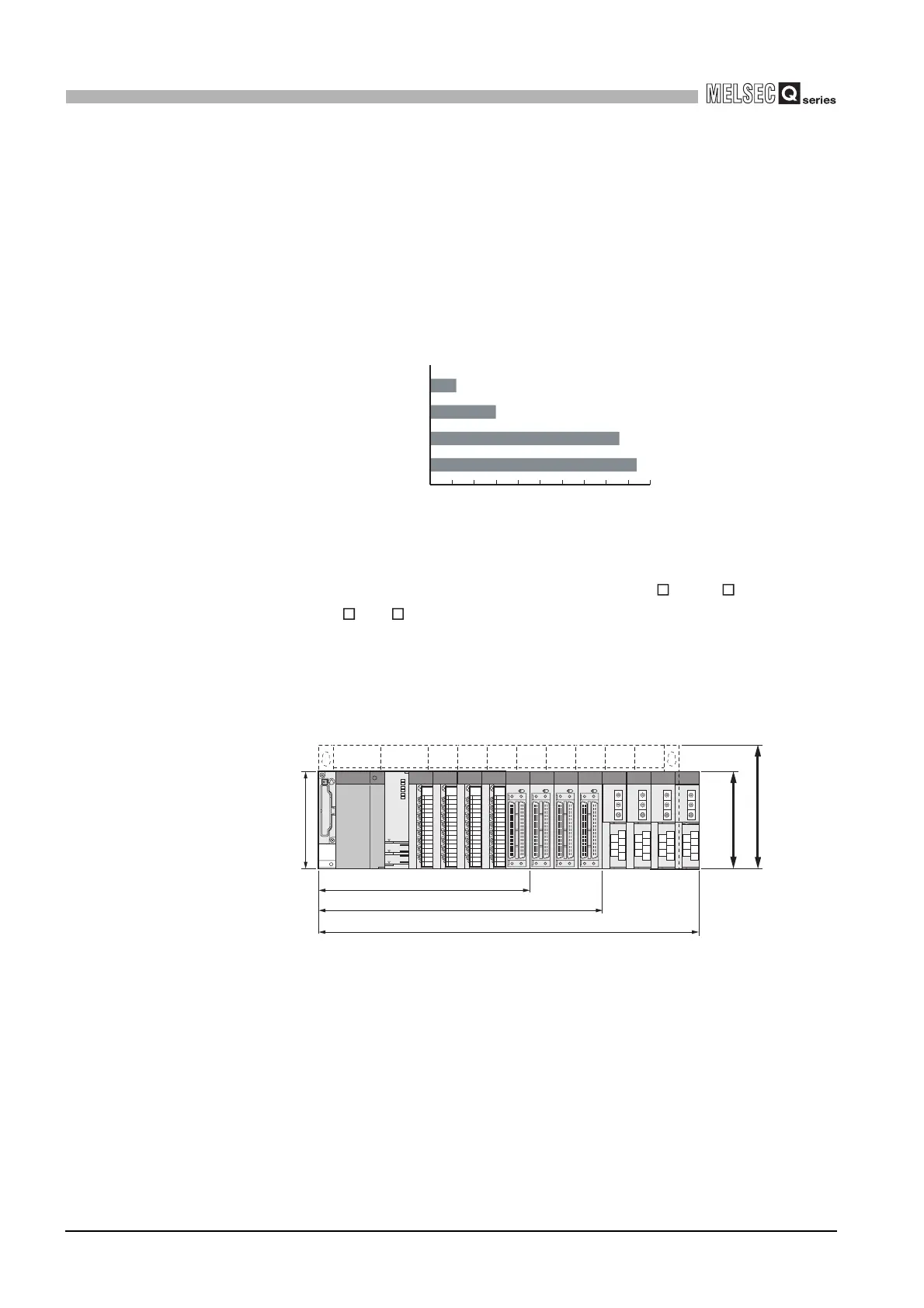

Diagram 1.1 26k step program transfer time
Diagram 1.2 Installation area comparison between Q series and AnS series
0 1020304050607080
Q25HCPU(USB)
Q25HCPU(RS-232)
Q2ASHCPU
A2USHCPU-S1
12
30
86
94
90 100
(Unit:s)
(depth:98mm(3.86inch))
98mm (3.86inch)
Q series
AnS series
8 Slot Main Base Unit 328mm(12.92inch)
12 Slot Main Base Unit 439mm(17.28inch)
5 Slot Main Base Unit 245mm(9.65inch)
To Next Page
