2 - 7
2.1 System Configuration
2.1.1 System Configuration for Single CPU System
2
SYSTEM CONFIGURATION
(b) When the redundant power main base unit (Q3 RB) is used
* 1: One memory card can be installed.
Select a memory card from SRAM card, Flash card, and ATA card according to the application
and capacity.
With commercial memory cards, the operation is not assured.
* 2: Use the redundant power supply module for the power supply module.
The redundant power supply module can use the both Q63RP and Q64RP together with one
redundant base unit.
The Q series power supply module and the slim type power supply module are not available for
the power supply module.
* 3: The Q series power supply module is not required for the Q5 B extension base unit.

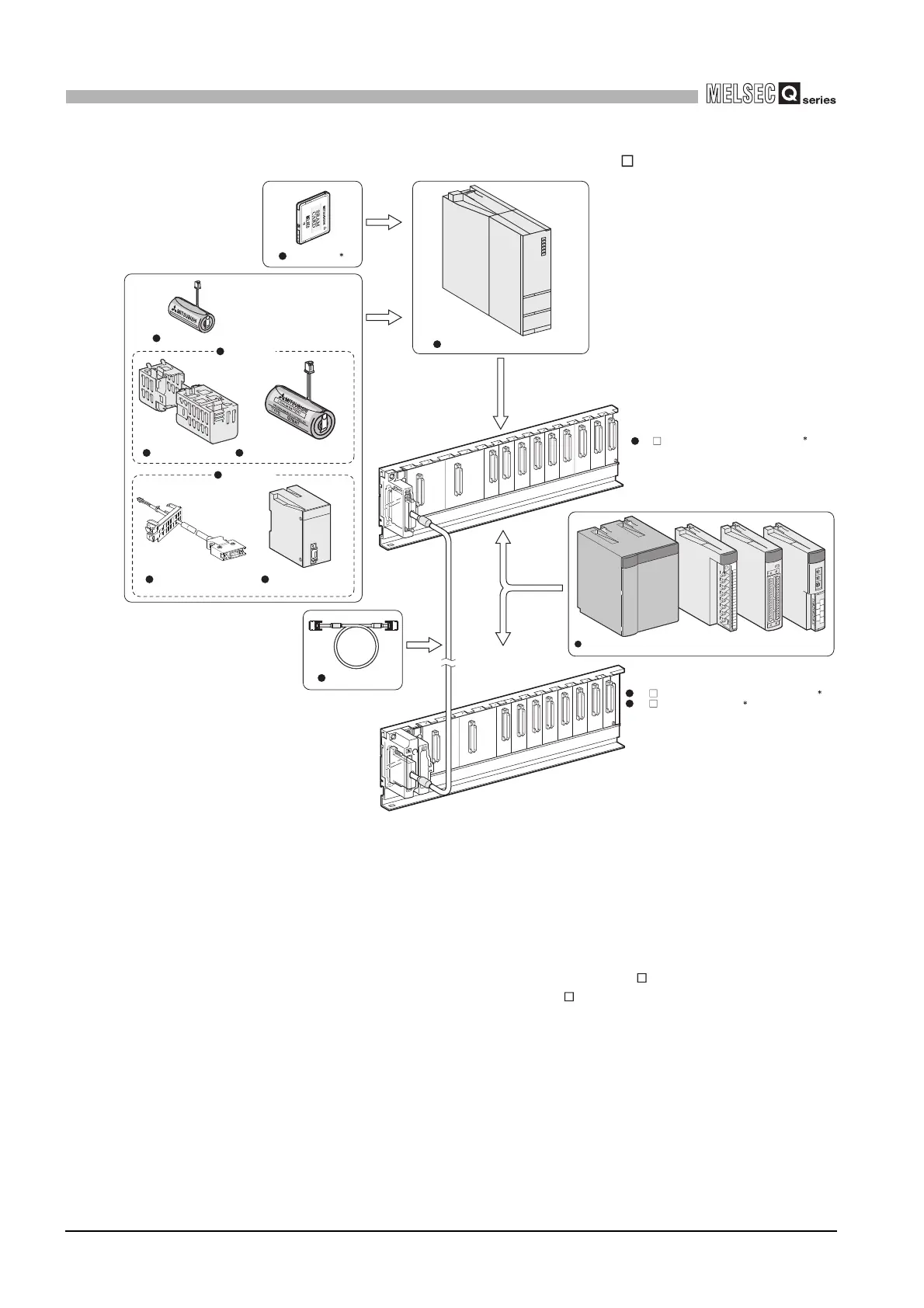

Diagram 2.6 System configuration when Q3 RB is used
Redundant power supply module/I/O module/Intelligent function module
High Performance model QCPU
Battery holder Battery for QCPU (Q7BAT)
Battery for QCPU (Q6BAT)
Q7BAT-SET
Memory card
1
Q6 RB redundant power extension base unit
Q5 B extension base unit
2
3
Q3 RB redundant power main base unit
2
Extension cable
Battery for QCPU
(Q8BAT)
Q8BAT-SET
Q8BAT connection cable
