SYSTEM CONFIGURATION
2.1 System Configuration
2.1.1 System Configuration for Single CPU System
2 - 8
1
OVERVIEW
2
SYSTEM CONFIGURATION
3
GENERAL SPECIFICATIONS
4
HARDWARE SPECIFICATIONS OF THE CPU MODULE
5
POWER SUPPLY MODULE
6
BASE UNIT AND EXTENSION CABLE
7
MEMORY CARD AND BATTERY
8
CPU MODULE START- UP PROCEDURES
(c) When the slim type main base unit (Q3 SB) is used
* 1: One memory card can be installed.
Select a memory card from SRAM card, Flash card, and ATA card according to the application
and capacity.
With commercial memory cards, the operation is not assured.
* 2: The slim type main base unit does not have an extension cable connector.
The extension base unit cannot be connected and bus connection of GOT is not available.
* 3: As a power supply module, use the slim type power supply module.
The Q series power supply module and the redundant power supply module are not available for
the power supply module.

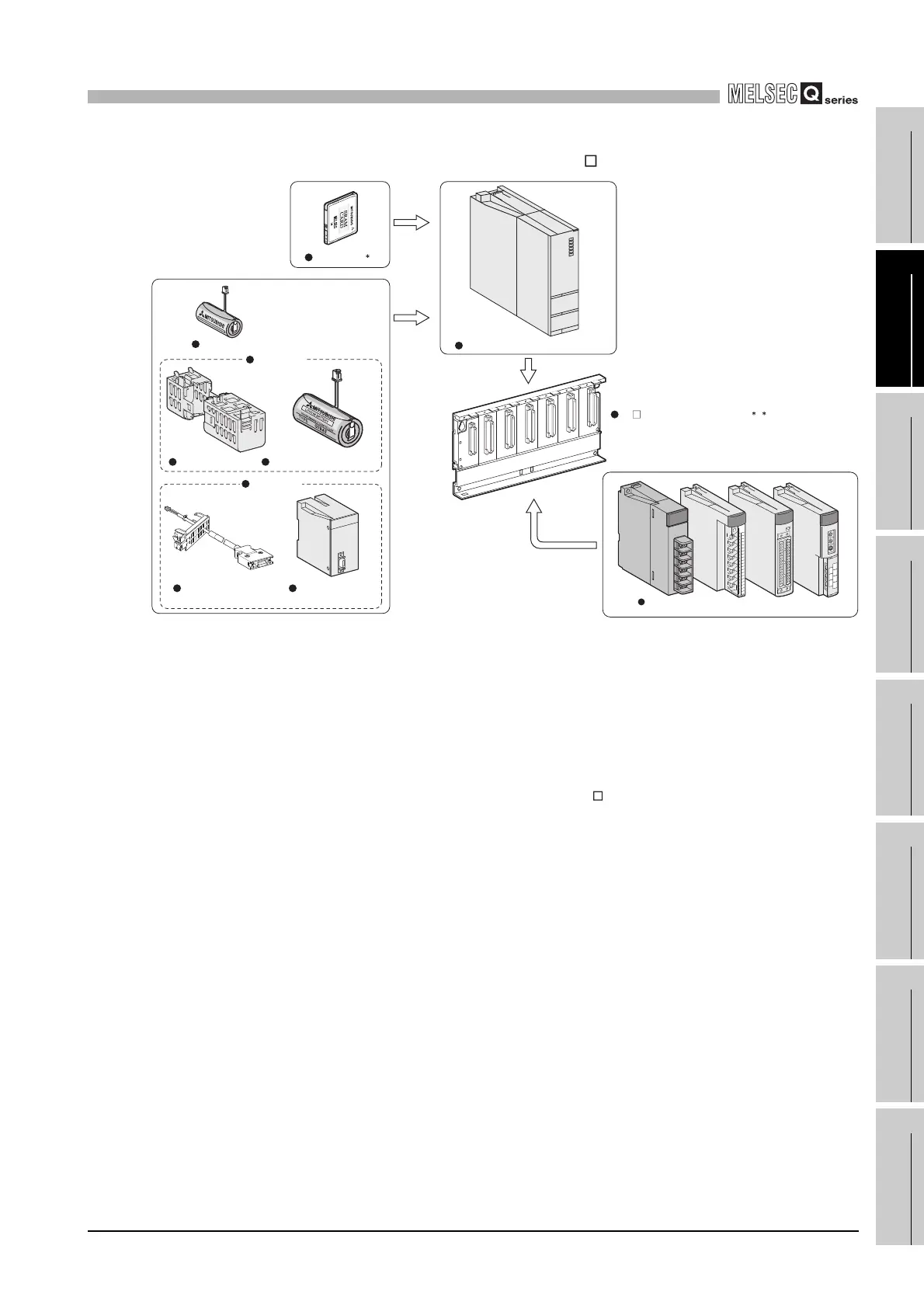

Diagram 2.7 System configuration when Q3 SB is used
High Performance model QCPU
Battery holder Battery for QCPU (Q7BAT)
Battery for QCPU (Q6BAT)
Q7BAT-SET
Memory card
1
Q3 SB slim type main base unit
2, 3
Slim type power supply module/I/O module/
Intelligent function module
Battery for QCPU
(Q8BAT)
Q8BAT-SET
Q8BAT connection cable
