2.1 System Configuration
2.1.1 System Configuration for Single CPU System
2
SYSTEM CONFIGURATION
(d) When the Multiple CPU high speed main base unit (Q3 DB) is used
* 1: One memory card can be installed.
Select a memory card from SRAM card, Flash card, and ATA card according to the application
and capacity.
With commercial memory cards, the operation is not assured.
* 2: As a power supply module, use the Q series power supply module.
The slim type power supply module and the redundant power supply module are not available for
the power supply module.
* 3: The Q series power supply module is not required for the Q5 B extension base unit.

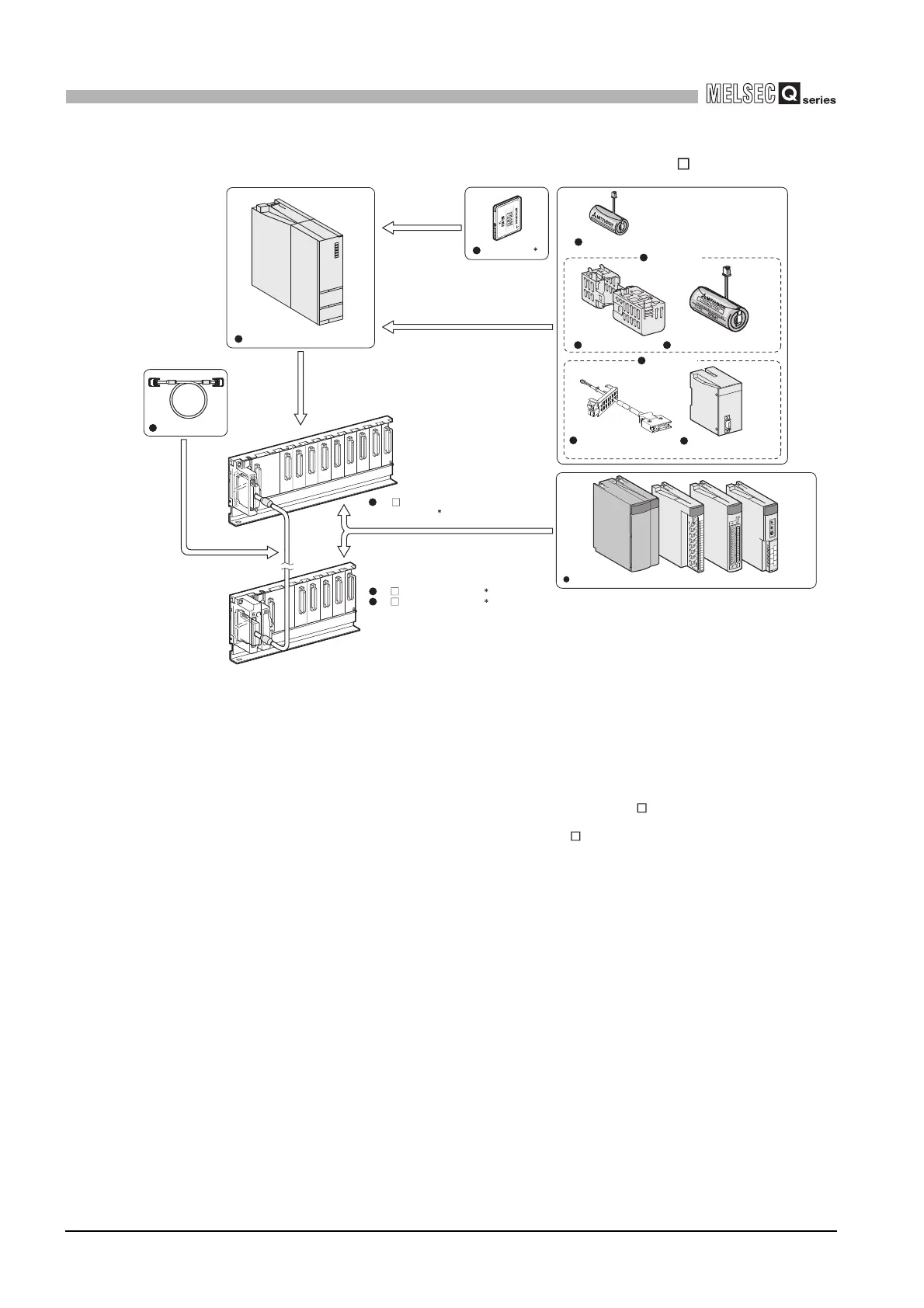

Diagram 2.8 System configuration when Q3 DB is used
Extension cable
Battery for QCPU (Q7BAT)
Q7BAT-SET
Battery holder
Battery for QCPU (Q6BAT)
Q8BAT-SET
Q8BAT connection cable
Memory card
1
High Performance model QCPU
Q6 B extension base unit
Q5 B extension base unit
2
3
Power supply module/I/O module/Intelligent function module
Battery for QCPU
(Q8BAT)
Q3 DB multiple CPU high speed
main base unit
2
To Next Page
