- 14
Appendix 1 External Dimensions
Appendix 1.3 Main base unit
APPENDICES
(9)
Q38DB
(10)
Q312DB
Unit : mm (inch)

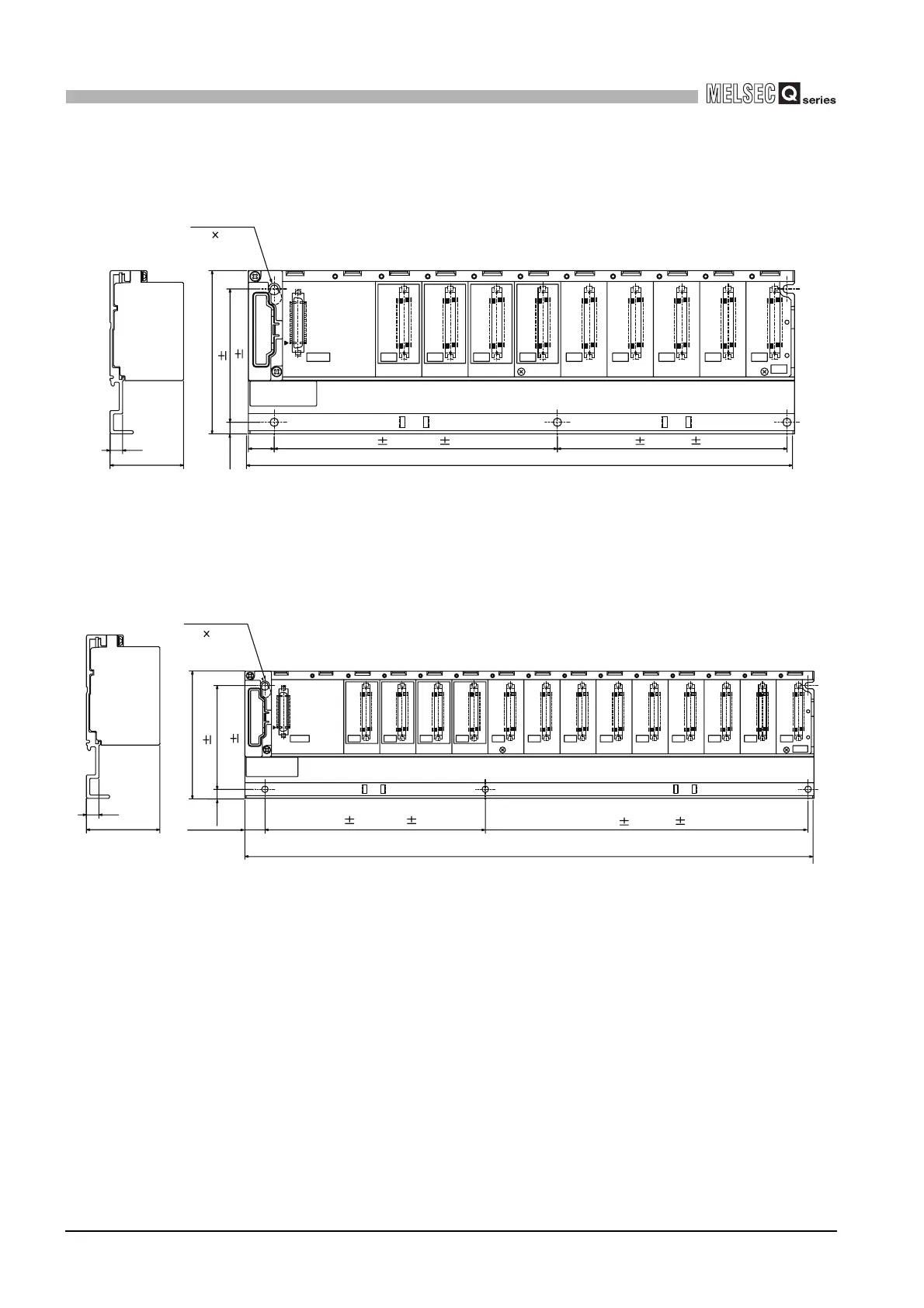

Diagram App.24 Q38DB
Unit : mm (inch)
Diagram App.25 Q312DB
98 (3.86)
15.5
(0.61)
7
(0.28)
328 (12.91)
44.1 (1.74)
(0.30)
7.5
5-mounting
screws
(M4 14)
170 0.3 (6.69 0.01)
138 0.3 (5.43 0.01)
80 0.3
OUT
38D
FG
SG
5V
I/O7
I/O6
I/O5
I/O4
I/O3
I/O2
I/O1
I/O0
CPU
POWER
b1
a1
98 (3.86)
15.5 (0.61)
7
439 (17.28)
44.1 (1.74)
7.5
(0.30)
170 0.3 (6.69 0.01)
249 0.3 (9.80 0.01)
80 0.3
(3.15 0.01)
5-mounting
screws
(M4 14)
(0.28)
OUT
312D
FG
SG
5V
I/O11
I/O10
I/O9
I/O8
I/O7
I/O6
I/O5
I/O4
I/O3
I/O2
I/O1
I/O0
CPU
POWER
b1
a1
699
701
