2 - 11
2.1 System Configuration
2.1.1 System Configuration for Single CPU System
2
SYSTEM CONFIGURATION
(b) When the redundant power main base unit (Q3 RB) is used
* 1: One memory card can be installed.
Select a memory card from SRAM card, Flash card, and ATA card according to the application
and capacity.
With commercial memory cards, the operation is not assured.
* 2: Use the redundant power supply module for the power supply module.
The redundant power supply module can use the both Q63RP and Q64RP together with one
redundant base unit.
The Q series power supply module and the slim type power supply module are not available for
the power supply module.
* 3: The Q series power supply module is not required for the Q5 B extension base unit.
POINT
The Process CPU cannot be mounted on the slim type main base unit.

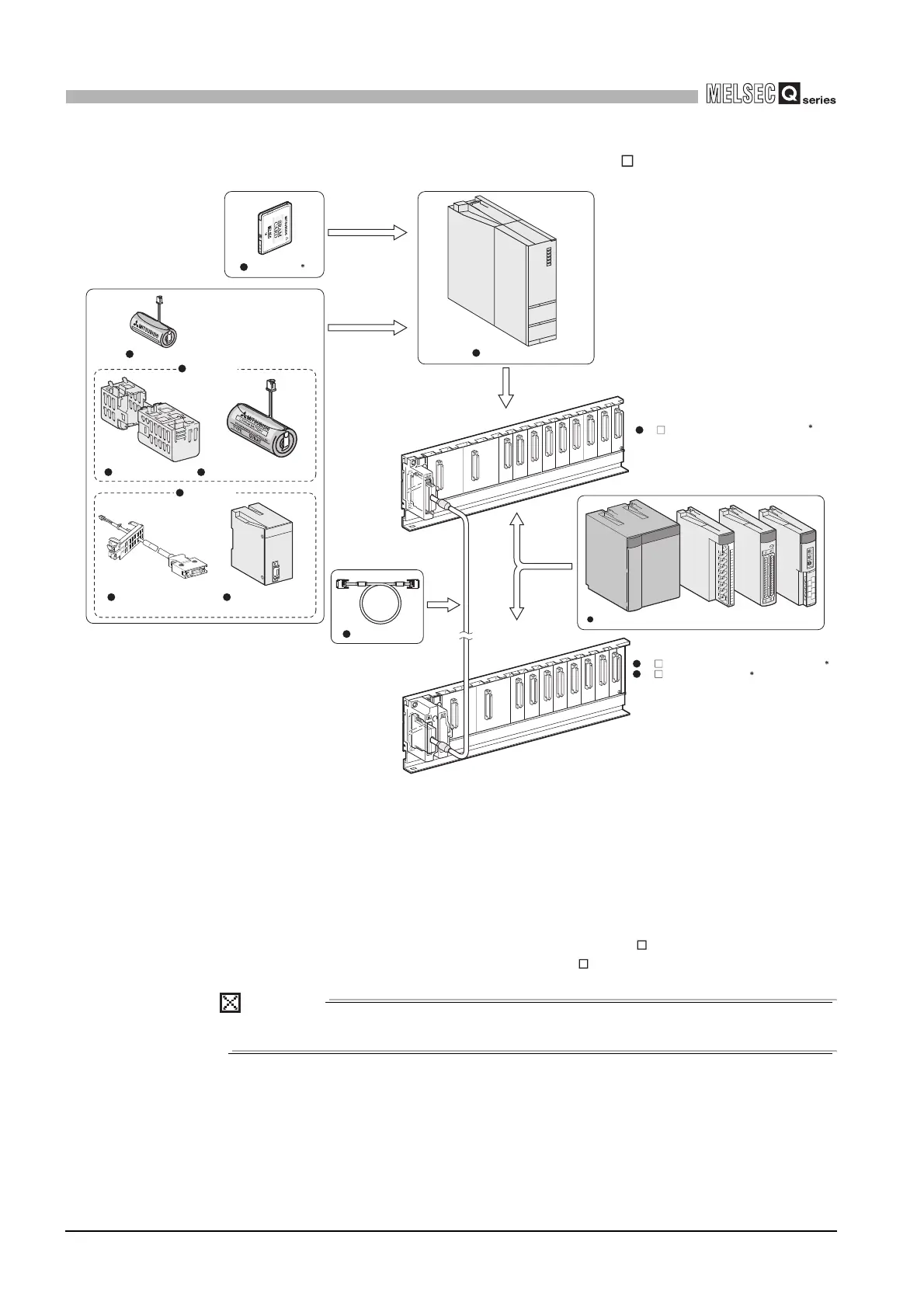

Diagram 2.10 System configuration when Q3 RB is used
Process CPU
Extension cable
Battery holder Battery for QCPU (Q7BAT)
Battery for QCPU (Q6BAT)
Q7BAT-SET
Memory card
1
Q3 RB redundant power main base unit
2
Q6 RB redundant power extension base unit
Q5 B extension base unit
2
3
Redundant power supply module/I/O module/Intelligent function module
Battery for QCPU
(Q8BAT)
Q8BAT-SET
Q8BAT connection cable
